Expanding
Expanding increases the diameter of the tube end for insertion, connection or assembly fit.
Need Any Help?
+8613915714335
lorry@zrtubebender.com

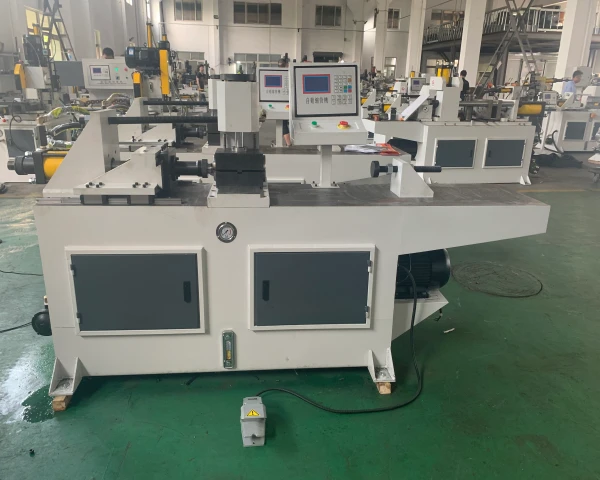

Tube Rolling Machine Manufacturer
Zhuoran tube end forming machines reshape tube ends to meet requirements for connection, assembly, sealing, and downstream manufacturing processes.
Models such as the TM40NC, TM60NC, TM80NC, and TM120NC accommodate a range of tube diameters and forming specifications. Leveraging hydraulic forming technology, microprocessor control systems, and custom tooling, Zhuoran delivers tailored tube end forming solutions based on your specific part drawings and production needs.
Process Overview
What Is Tube End Forming?
Tube end forming is a metal-forming process that changes the geometry of a tube end without removing the entire end section.
The process can be used to create an expanded end, reduced end, bead, flare, stepped profile, angled profile or another customized shape required by the final assembly.
Tube end forming is different from pipe chamfering. Chamfering mainly modifies the edge of a tube, while end forming changes the functional geometry of the tube end.
Compare Tube End Forming with Pipe Chamfering →End-Forming Operations
Tube End Forming Operations for Different Profiles
Reducing
Reducing decreases the tube-end diameter for nested connections, diameter transitions or pipe insertion.
Beading
Beading creates a raised ring or bead for positioning, retention or sealing-related applications.
Flaring
Flaring forms an expanded or conical end for connection, sealing or downstream assembly.
Flanging
Flanging creates an outward flange for welding bases, gasket mounting surfaces or connection interfaces.
Custom Forming
Custom tooling can be evaluated for square, angled, V-shaped, offset, elbow-style and other non-standard tube-end profiles.
The actual forming sequence, tooling design and number of stations should be confirmed from the part drawing or physical sample.
TM40NC Model
TM40NC Tube End Forming Machine
TM40NC is designed for tube sizes up to approximately Ø40 × 2 mm.
The machine uses hydraulic drive and microcomputer control. It supports manual and semi-automatic operation, with a three-station configuration and linear-guide-based movement.
- Maximum tube size: Ø40 × 2 mm
- Maximum working stroke: 100 mm
- Hydraulic pressure: 12 MPa
- Total power: 4 kW
- Machine weight: 750 kg
- Three-station configuration
TM60NC Model
TM60NC Tube End Forming Machine
TM60NC is designed for tube sizes up to approximately Ø60 × 2 mm.
It uses hydraulic forming, microcomputer control, manual and semi-automatic operating modes, and a three-station configuration.
- Maximum tube size: Ø60 × 2 mm
- Maximum working stroke: 125 mm
- Hydraulic pressure: 12 MPa
- Total power: 5.5 kW
- Machine weight: 800 kg
- Three-station configuration
TM80NC Model
TM80NC Tube End Forming Machine
TM80NC is designed for tube sizes up to approximately Ø80 × 2 mm.
The hydraulic machine uses microcomputer control, manual and semi-automatic operating modes, and a three-station forming configuration.
- Maximum tube size: Ø80 × 2 mm
- Maximum working stroke: 150 mm
- Hydraulic pressure: 12 MPa
- Total power: 7.5 kW
- Machine weight: 1400 kg
- Three-station configuration
TM120NC Model
TM120NC Tube End Forming Machine
TM120NC is designed for larger tube sizes up to approximately Ø120 × 4 mm.
The model uses a two-station configuration and higher hydraulic capacity. It can be evaluated for larger tube assemblies that require two forming operations or a larger tube-end forming envelope.
- Maximum tube size: Ø120 × 4 mm
- Maximum working stroke: 150 mm
- Hydraulic pressure: 14 MPa
- Total power: 11 kW
- Machine weight: 3000 kg
- Two-station configuration
Technical Reference
TM Series Tube End Forming Machine Comparison
| Parameter | TM40NC | TM60NC | TM80NC | TM120NC |
|---|---|---|---|---|
| Maximum tube size | Ø40 × 2 mm | Ø60 × 2 mm | Ø80 × 2 mm | Ø120 × 4 mm |
| Maximum working stroke | 100 mm | 125 mm | 150 mm | 150 mm |
| Hydraulic pressure | 12 MPa | 12 MPa | 12 MPa | 14 MPa |
| Total power | 4 kW | 5.5 kW | 7.5 kW | 11 kW |
| Station configuration | 3 stations | 3 stations | 3 stations | 2 stations |
| Control | Microcomputer | Microcomputer | Microcomputer | Microcomputer |
| Operation | Manual / semi-automatic | Manual / semi-automatic | Manual / semi-automatic | Manual / semi-automatic |
| Machine weight | 750 kg | 800 kg | 1400 kg | 3000 kg |
The specifications above are reference values from the available TM-series product documents. Final tooling, forming sequence, feeding system and other configuration details should be confirmed for the project.
Machine Functions
Tube End Forming Functions for Different Production Needs
- Expanding and diameter enlargement
- Reducing and diameter contraction
- Flaring and conical-end forming
- Beading and raised-ring forming
- Flanging and connection-surface forming
- Stepped and multi-profile forming
- Offset, square and angled end forming
- Custom tooling for non-standard tube-end profiles
Copper and Aluminum Tube Forming
Controlled Forming for Copper and Aluminum Tubes
Copper and aluminum tubes require careful control of forming force, speed, lubrication and tooling surface condition.
These softer materials may be sensitive to surface scoring, sticking, cracking and dimensional distortion during end forming.
- Controlled forming force
- Suitable forming speed
- Polished tooling surfaces
- Material-specific lubrication
- Surface inspection after forming
- Sample validation before production release
Complete Tube Processing
Integrate Tube End Forming into a Complete Production Line
Zhuoran can evaluate complete tube-processing solutions rather than supplying only one standalone machine.
Depending on the production flow, a tube end forming machine can be integrated with cutting, bending, chamfering, feeding, unloading and conveying equipment.
- Automatic tube loading
- Pipe cutting machine integration
- CNC or NC pipe bending integration
- Pipe chamfering integration
- Automatic unloading
- Material transfer and conveying
- Production-line layout planning
Precision and Validation

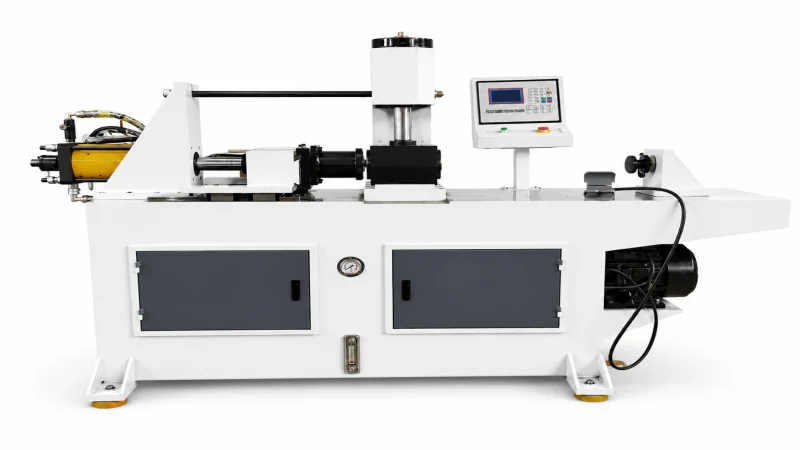

Tube End Forming Accuracy Should Be Verified by the Actual Part
Zhuoran can provide different forming configurations according to the required precision, material and production method.
Hydraulic Standard Configuration
Reference positioning accuracy: ±0.1 mm.
Servo Precision Configuration
Reference positioning accuracy: ±0.02 mm.
Sample Verification
Final forming accuracy should be confirmed through the actual tube, tooling and inspection method.
- Tube-end diameter
- Forming depth
- Concentricity
- Flare angle
- End profile geometry
- Surface condition
- Cracks, wrinkles or local deformation
- Assembly and connection fit
Final forming accuracy depends on tube material, wall thickness, tooling design, machine configuration, forming sequence and inspection method. Sample validation is recommended before production release.
Automotive Application Case
Automotive Tube End Forming Case
01
Production Situation
An automotive piping plant was processing carbon-steel and stainless-steel brake and fuel-line fittings in the approximate range of Ø8–25 mm.
02
Original Challenge
Separate machines were used for reducing, expanding and flaring. Repeated transfers increased the risk of surface damage, inconsistent positioning and rework.
03
Reported Result
The project reported a yield rate of 99.3%, processing time reduced from 28 seconds to 12 seconds and an approximate payback period of 8 months.
These results are project-specific and should not be treated as a guaranteed result for every application. Actual performance depends on material, tooling, automation scope, production volume and inspection requirements.
Automation Options
From Standalone End Forming to Automated Production Lines
Standalone Machine
A standalone tube end forming machine can be used for manual or semi-automatic production and is suitable for flexible production environments.
Automated Line
Automatic loading, unloading, conveying and integration with other tube-processing equipment can be evaluated for higher-volume production.
Automatic feeding and unloading typically increase equipment investment by approximately 20%–35%, depending on the automation scope and line configuration.
Automation should be evaluated against production volume, labor requirements, changeover frequency, product variation, floor layout and expected payback period.
DISCUSS YOUR AUTOMATION REQUIREMENTSSample Validation

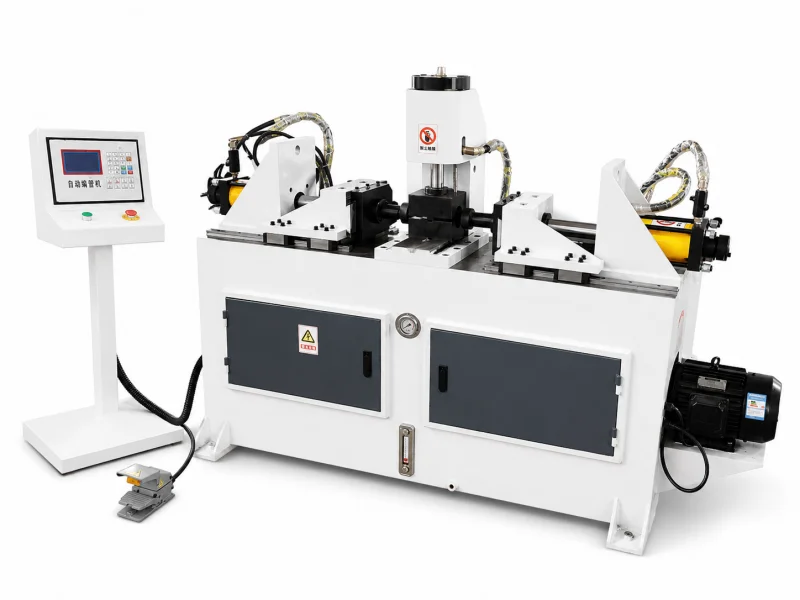

Test Your Tube-End Profile Before Production
Zhuoran provides free trial processing for qualified tube end forming projects.
You can send tube samples or visit the factory for trial processing. The sample test can be used to evaluate the forming result, tooling arrangement, surface condition and assembly fit before final machine selection.
- Tube material and material condition
- Tube outside diameter and wall thickness
- Required end profile and forming depth
- Tooling arrangement
- Surface condition
- Cracks, wrinkles or distortion
- Finished-part dimensions
- Assembly or connection fit
Information to Send with Your Sample
- Part drawing or 3D model
- Tube material and grade
- Tube OD and wall thickness
- Required end profile
- Forming depth and diameter
- Expected production volume
- Inspection requirements
- Assembly or sealing requirements
After-Sales Support
Support After Your Tube End Forming Machine Is Delivered
Zhuoran provides technical support throughout installation, commissioning, operator training and production use.
Machine Warranty
Two-year warranty for the complete machine and three-year warranty for core hydraulic components.
Technical Response
Technical response within 24 hours for machine operation, troubleshooting and production communication.
Production Support
Installation guidance, commissioning support, operator training, tooling communication and remote troubleshooting.
VIEW AFTER-SALES SERVICE
Start Your Tube End Forming Project

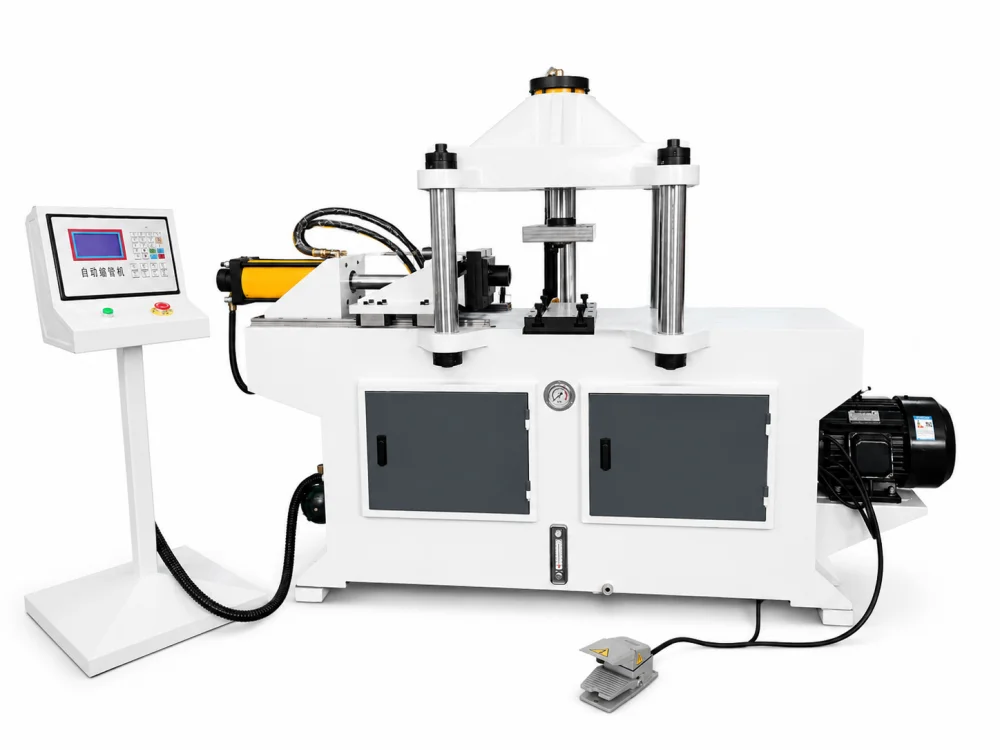

Build the Right Tube End Forming Solution
Send your tube drawing, material information, end profile and production requirements.
Zhuoran can help evaluate the suitable TM model, forming stations, tooling arrangement, automation scope and sample validation method for your project.
Explore Zhuoran Machinery
Explore More Tube Processing Solutions
Discover Zhuoran's pipe bending, tube end forming, cutting and chamfering machines, along with custom automation solutions. Visit our homepage to explore the product range.
VISIT ZHUORAN HOMEPAGEWhat are the special requirements for a stainless-steel tube end forming machine?
Stainless-steel tubes may require suitable hydraulic force, dedicated tooling, surface protection and springback control. The final configuration should be confirmed according to the material grade, wall thickness and tube-end profile.
Is automatic tube end forming equipment expensive?
Automatic feeding and unloading typically increase equipment investment by approximately 20%–35%, depending on the automation scope, line configuration and production requirements.
Can the TM series process aluminum alloy tubes?
Yes. Aluminum tubes can be evaluated for tube end forming, but the tooling surface, forming speed, lubrication and forming force should be controlled to reduce sticking, surface marks and deformation.
What happens if the equipment malfunctions?
Zhuoran provides after-sales support, installation guidance, commissioning support, operator training and technical response within 24 hours. Warranty coverage is subject to the final contract terms.
How can I test the equipment before ordering?
Zhuoran provides free trial processing for qualified projects. You can send tube samples or visit the factory to evaluate the forming result, tooling arrangement and finished-part quality before final machine selection.
Which model should I choose for my tube?
The selection depends on tube diameter, wall thickness, material, forming depth, end profile, number of operations and production volume. TM40NC, TM60NC, TM80NC and TM120NC cover different tube capacities.
