Precision Tube Cutting Machine — MC275 Series
- ±0.1mm accuracy — pass your export customer’s factory audit on the first try
- 200+ clean cuts per day without touching an angle grinder
- No burrs. No dust. No sparks. Just smooth, ready-to-weld tube ends
Working Principle of Precision Pipe Cutting Machine
Instead of an abrasive disc that chews through metal, the MC275 uses a HSS cold saw blade spinning at low RPM. Think of it as the difference between tearing paper with your hands and cutting it with scissors. Same material. Completely different result.Here’s what changes when you switch:
| Hand Tool / Angle Grinder | MC275 Precision Tube Cutting Machine |
|---|---|
| Burrs on every cut | Burr-free, every single time |
| ±2mm accuracy on a good day | ±0.1mm, repeatable all day |
| 30-50 cuts/day before fatigue | 200+ cuts/day, no sweat |
| Blade lasts 2-3 days | HSS blade lasts 2-3 months |
| Sparks, dust, noise, heat | Cool cut, no sparks, quiet |
Cutting tubes with hand saws or angle grinders creates uneven pipe ends, which easily causes customers to reject your finished batches.
Our precision metal tube cutter fits small workshop budgets perfectly. Designed for daily production, it delivers neat, aligned cuts and eliminates rejection issues. No need to struggle with outdated cutting tools any longer.
MC275 Precision Tube Cutting Machine
The MC275 series offers two models: the MC275A fully manual and the MC275B pneumatic semi-automatic. Both machines use the same cold-cutting process, resulting in identical cut product quality; the only difference lies in the ease of operation.
MC275A Durable Manual Main Model
The MC275A is fully manual: manual feeding, tube clamping, and cutting start. Its minimalist, purely mechanical structure results in an extremely low failure rate and virtually no easily damaged parts. The machine features a worm gear drive structure, similar to automotive steering systems, eliminating belts and chains, ensuring quiet and stable operation year-round and maximizing durability.
This model is ideal for you if you meet the following production needs:
- Cut 50–150 tubes per day
- Mainly process 0.8mm–2mm thin-walled furniture tubes
- Limited budget, but require long-term stability and trouble-free operation
- One person is needed to operate the machine.
MC275B Pneumatic Upgrade Model
The MC275B uses the same high-precision cutting head, but upgrades with pneumatic clamping and feeding structures. Simply place the pipe in, press the foot switch, and the machine automatically completes the clamping and cutting process, freeing up your hands to prepare the next pipe.
Single-piece processing time is reduced from approximately 12 seconds to 7 seconds, directly increasing single-cutting efficiency by 40%. It can cut 200 pipes per day, saving nearly 17 minutes of work time daily. This model is ideal for you if you meet the following production scenarios:
- Processing 150 to 300+ pipes per day
- Processing various materials, including stainless steel, aluminum, carbon steel, and copper
- Want a single person to handle both cutting and other auxiliary processes
- Pay an extra 30% in purchase cost, but recoup your investment within 3 months through reliable production capacity.

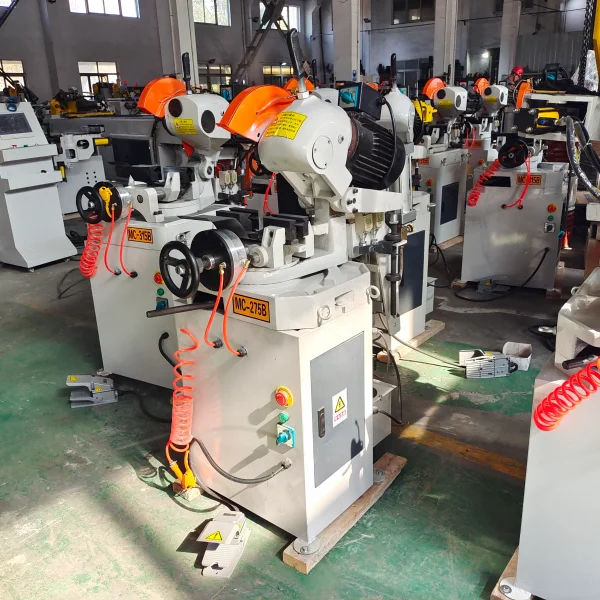

MC275A vs MC275B
Selection Recommendations:
One key detail most sellers skip:
While the machine cuts one tube on MC275B, your worker can use both hands to line up the next tube.This is where you gain real efficiency. It’s not just quicker cutting — you finish two tasks at the same time.
One Machine, Perfect Precision Cuts for Every Metal
The MC275 is designed for a wide range of metal cutting applications, including stainless steel (201/304/316), aluminum, copper, brass, and carbon steel tubing.
With optimized cutting speeds, durable cobalt high-speed steel blades, and an automatic coolant lubrication system, it delivers clean, burr-free cuts while reducing heat, warping, and blade wear.
Whether it’s furniture tubing, railings, HVAC ductwork, automotive parts, or other metalworking, the MC275 provides reliable performance and consistent cut quality across a variety of materials.
MC275 Precision Tube Cutting Machine Specs
Spec sheets are full of flashy numbers that sound great, but don’t tell you how they’ll impact your daily work. Let’s break it down simply.
| Spec | Number on Paper | What It Means in Your Workshop |
|---|---|---|
| Max round tube at 90° (MC275A) | ○90mm / 3.54″ | You can cut a 3.5″ handrail post. That covers 95% of furniture and construction tube. As a small diameter tube cutting machine, it excels on the 10-50mm range most workshops run daily. |
| Max round tube at 45° (MC275A) | ○60mm / 2.36″ | Any chair leg or table frame angle cut. The head swings ±45° with clear degree markings. |
| Spindle speed | 60/120 RPM | 60 for stainless and thick-wall. 120 for aluminum and thin-wall. One switch. |
| Motor power | 2/2.4KW dual-speed | Runs on standard 220V single-phase (or 380V 3-phase). No special wiring. |
| Blade size | HSS Φ250/275mm | Standard blade. You can buy replacements from any tooling supplier. Not proprietary. |
| Coolant pump | 40W auto | It’s not a pressurized mister that clogs. Simple submersible pump. Runs for years. |
| Machine weight (MC275A) | 200kg / 441 lbs | Heavy enough to stay dead stable during cuts. Light enough to move with a pallet jack. |
Technical Specifications — MC275A vs MC275B
| Parameter | MC275A (Manual) | MC275B (Pneumatic) |
|---|---|---|
| Operation Type | Manual feed / Manual clamp / Manual cut | Manual feed / Auto clamp / Auto cut |
| Drive System | Worm gear drive | Worm gear drive |
| Motor | 2/2.4KW dual-speed | 2/2.4KW dual-speed |
| Spindle RPM | 60/120 | 60/120 |
| Air Supply | Not required | 6-8 kg/cm² (120L/min) |
| Round Tube 90° | ○Φ90mm / 3.54″ | ○Φ80mm / 3.15″ |
| Square Tube 90° | □60×60mm / 2.36″×2.36″ | □75×75mm / 2.95″×2.95″ |
| Solid Round 90° | ●Φ38mm / 1.50″ | ●Φ25mm / 0.98″ |
| Solid Square 90° | ■38×38mm / 1.50″×1.50″ | ■25×25mm / 0.98″×0.98″ |
| Round Tube 45° | ○Φ60mm / 2.36″ | ○Φ60mm / 2.36″ |
| Square Tube 45° | □45×45mm / 1.77″×1.77″ | □50×50mm / 1.97″×1.97″ |
| Solid Round 45° | ●Φ25mm / 0.98″ | ●Φ25mm / 0.98″ |
| Solid Square 45° | ■25×25mm / 0.98″×0.98″ | ■25×25mm / 0.98″×0.98″ |
| Head Swivel | ±45° with scale | ±45° with scale |
| Blade | HSS Φ275mm (Φ250mm compatible) | HSS Φ275mm (Φ250mm compatible) |
| Blade Bore | Φ32mm, 2×11×PCD63mm | Φ32mm, 2×11×PCD63mm |
| Coolant | 40W auto pump | 40W auto pump |
| Machine Size | 600×800×1600mm | 600×900×1400mm |
| Weight | 200kg / 441 lbs | 250kg / 551 lbs |
| Key Components | Taiwan TAIAN electrics / Wuxi Taihu motor / Changde limit switch / Harbin bearings | Same + Hongyuan solenoid valve / Jiuchuan transformer / Kangda regulator / Zhuoran blade |

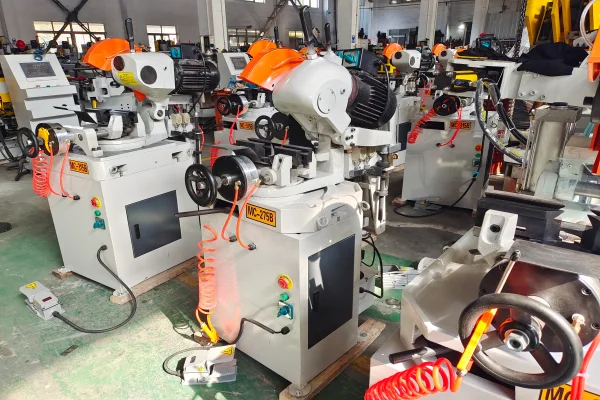

Cutting Quality: A Welder's Top Concern
Band saw cuts result in rough, uneven ends on the pipes, requiring welders to grind each pipe before assembly.
Grinding each pipe takes 1-2 minutes. If 100 pipes are cut daily, this alone wastes over 3 hours on edge grinding.
The MC275 achieves perfectly smooth cuts. Welders can immediately assemble and weld the pipes. No grinding, filing, or any additional preparation is needed.

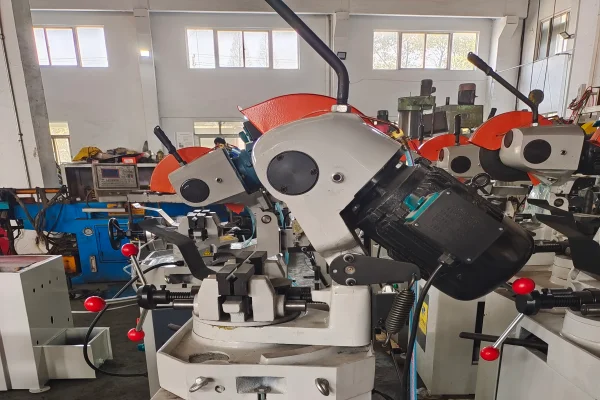

Rigorously Proven Precision
The MC275 features a rigid cast iron cutting head and dovetail slide rails. The blade never shifts, and heavy-duty clamps firmly hold the pipe in the center. Cutting accuracy is consistently within ±0.1mm, batch-to-batch.
This precision will determine whether you secure orders when your overseas buyers come to inspect your factory with calipers. If you need a pipe cutter capable of maintaining ±0.1mm accuracy in cutting stainless steel, aluminum, carbon steel, and copper throughout the day, the MC275 will perfectly meet your needs.
Zhuoran Client Cases
Get Your Custom Machine Quotation Now
Tell us what you’re cutting. Material, tube diameter, wall thickness, how many per day. That’s all we need.
You’ll get a quote within 24 hours. Factory-direct pricing. Shipping cost to your port. Delivery timeline.
How accurate is the MC275?
The supplied specification lists a maximum capacity of Φ40 mm OD with a 2 mm wall thickness. Your material and finished shape also affect the forming load, so the diameter alone cannot confirm machine suitability. Send the tube material, OD, wall thickness, drawing, and required forming length for an engineering review before ordering.
How long does the saw blade last?
A quality HSS blade typically lasts 2,000–3,000 cuts under normal production conditions. Actual blade life depends on the material, wall thickness, and cutting frequency.
Can the machine cut 45° angles?
Yes. The cutting head swivels 45° left and right, allowing precise angle cuts for furniture, automotive, and metal fabrication applications.
What air compressor is required for the MC275B?
The pneumatic model requires 6–8 kg/cm² (85–115 PSI) with a minimum airflow of 120 L/min. A standard workshop compressor is sufficient for normal production.
Is the machine easy to operate?
Yes. The controls are straightforward, and most operators can learn basic operation within a short time. We also provide manuals and technical support after delivery.
