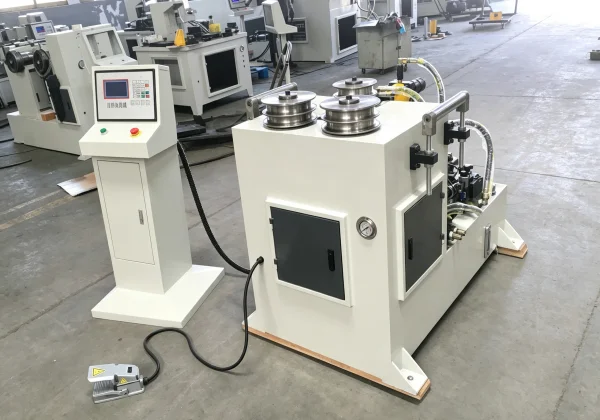

GY60NC 60mm Pipe Rolling Machine
Roll 60 x 2 mm carbon steel pipe with a three- or seven-roller machine matched to your production needs.
- Handles carbon steel pipe up to 60 x 2 mm
- Offers three- and seven-roller specifications
- Supports adjustable rolling speed
- Accepts custom grooves for metal profiles
GY60NC Pipe Rolling Machine Product Detail

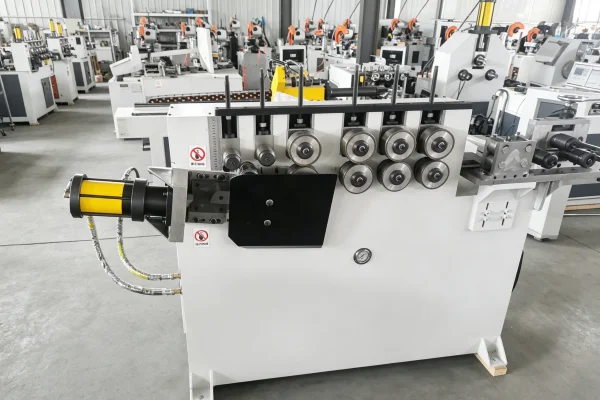

60 mm Tube Roller Machine Specifications
Minimum bending radius: R >= 10D
Hydraulic motor power: 5.5 kW
GY60NC-3 mold diameter: 208 mm
GY60NC-7 mold diameter: 180 mm
GY60NC-3 weight: 640 kg
GY60NC-7 weight: 1,100 kg
Product Description
The GY60NC pipe rolling machine series processes carbon steel tube up to 60 mm OD x 2 mm wall. Choose the GY60NC-3 for a three-roller layout in a 1,500 x 900 x 1,500 mm body, or the GY60NC-7 for seven driven rollers and a 2,100 x 1,220 x 1,100 mm structure.
Both specifications list adjustable rolling speed and a minimum radius of R >= 10D. Asymmetric side rollers help shorten the straight ends, while interchangeable groove tooling allows the machine to roll round tube and selected metal profiles.
View the complete tube rolling machine range to compare capacity and roller configurations.
GY60NC Tube Roller Bender Model

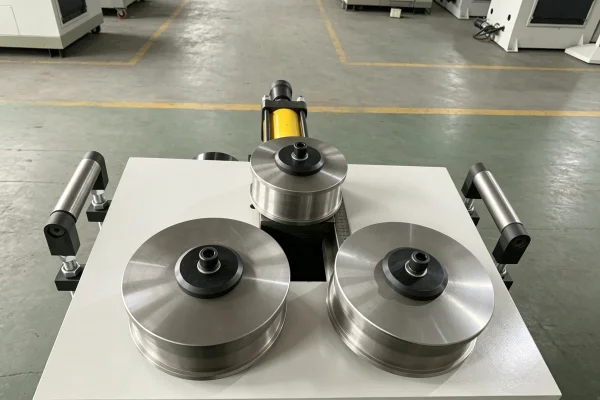

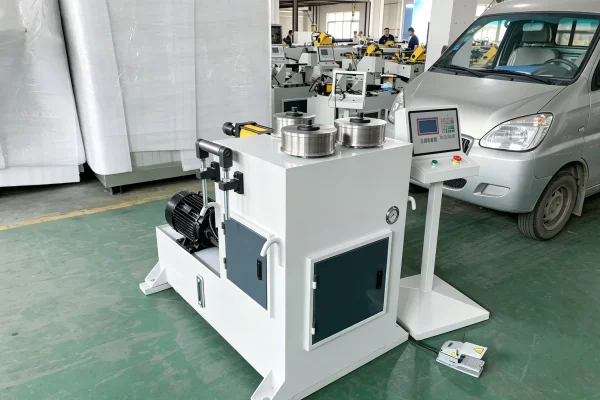

GY60NC-3 Pipe Rolling Machine
Three-roller model with a 208 mm mold, 60 mm shaft, 5.5 kW hydraulic motor, and 640 kg weight.

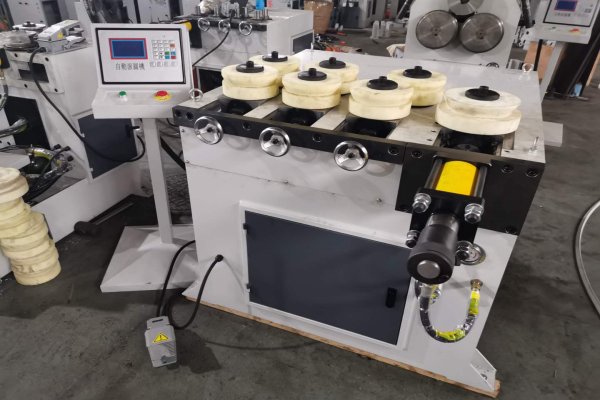

GY60NC-7 Tube Roller Machine
Seven-roller model with a 180 mm mold, 60 mm shaft, 5.5 kW hydraulic motor, and 1,100 kg weight.

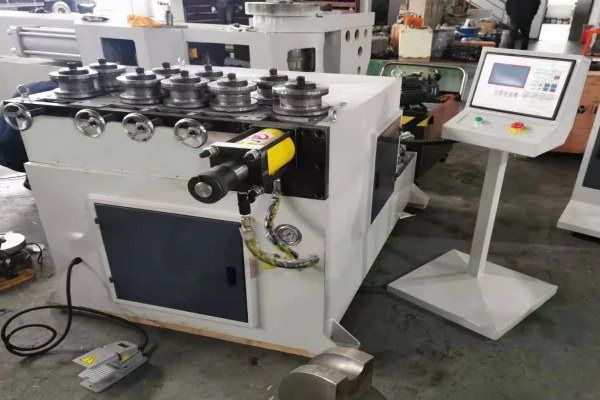

Custom-Roller GY60NC
Matches roller count and groove shape to your section, rolling direction, target radius, finish, and production quantity.
Features for GY60NC Pipe Rolling Machine
Verified 60 mm Capacity
Both documented models handle 60 x 2 mm carbon steel pipe.
Adjustable Process Speed
Your operator can adjust rolling speed around the selected workpiece and forming process.
Asymmetric Side Rollers
The offset layout reduces straight material left near the workpiece ends.
Profile-Specific Tooling
Matched grooves support round tube, angle, flat bar, and selected shaped profiles.

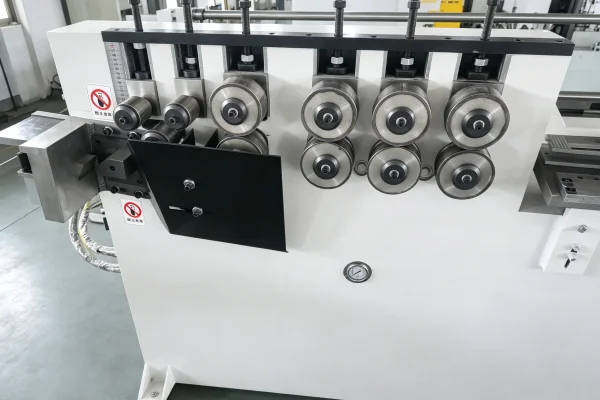

Select the Right Roller Layout
The GY60NC pipe rolling machine is available in documented three- and seven-roller configurations. The three-roller model offers a smaller footprint and lower weight at 640 kg, while the seven-roller version weighs 1,100 kg and provides more driven contact along the tube feed path.
Choose the right configuration based on your tube section and finished geometry. Send your requirements to Zhuoran for model matching. If most of your work stays within 40 × 2 mm, compare the GY40NC pipe rolling machine.
Control Large-Radius Forming
The GY60NC pipe rolling machine creates curvature through progressive rolling. Your operator adjusts pressure and repeats the pass until the part reaches the specified arc, circle, or spiral.
Both documented models list R >= 10D as the minimum bending radius. Material strength, wall thickness, weld seam, and surface requirement still influence the practical result, so provide those details before tooling design.

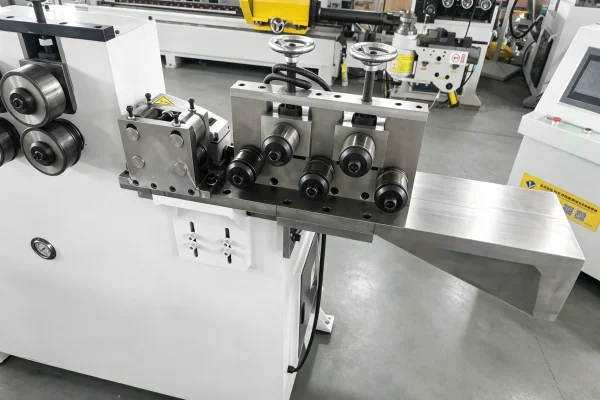

Support Profiles with the Right Groove
Profile rolling fails when the groove supports the wrong faces. The supplied GY60NC description includes round pipe, angle, flat bar, and other shaped sections with changed tooling.
A section drawing shows Zhuoran where the rollers should contact the workpiece and which way it must curve. Add the target diameter and rolling orientation to prevent confusion during machine and tooling selection.
Applications

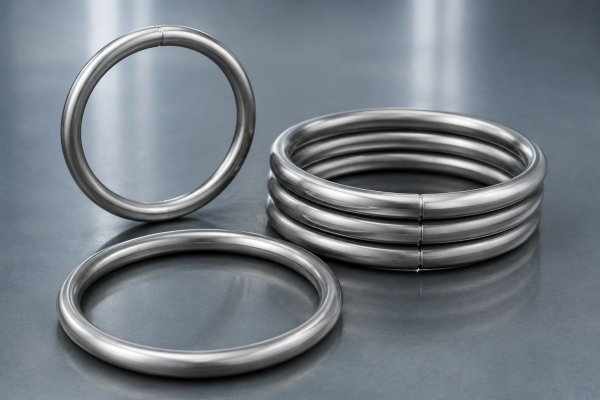

Medium Tube Rings
Use the GY60NC pipe rolling machine for rings made from tube within the verified 60 x 2 mm carbon steel reference capacity. The roller head builds a continuous curve while the asymmetric side arrangement reduces unused straight material. State whether you need an open hoop or a closed ring, because stock allowance, trimming, and joining affect the recommended process.

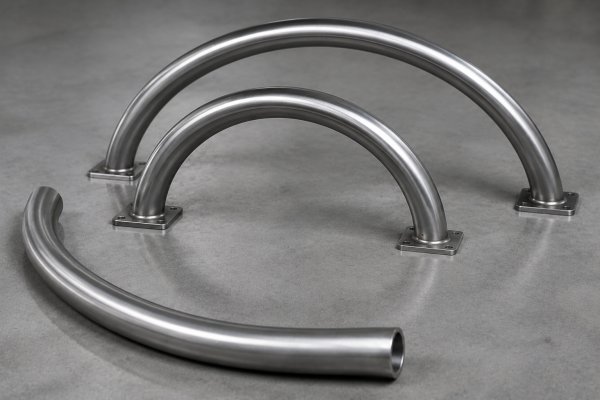

Structural Tube Arcs
The GY60NC forms broad tube arcs for fabricated frames and curved assemblies when the part fits its capacity. Your drawing should include centerline radius, arc angle or chord, straight tangents, and rolling plane. These values tell Zhuoran how the tube will travel through the 60 mm tube roller machine and whether the standard groove can support the section.

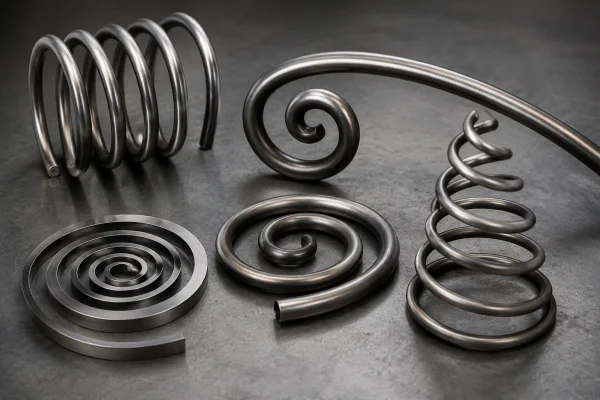

Spiral Components
The source material lists spiral forming as a supported machine function. Spiral parts need more than an outside diameter: pitch, number of turns, tube size, material, and feed direction all affect setup. Provide a side view and end view with your inquiry. Zhuoran can then assess the GY60NC model, roller layout, groove, and material handling space.
Get Your Custom Machine Quotation Now
Send your 60 mm tube or profile drawing for a GY60NC-3 versus GY60NC-7 review.
What is the GY60NC maximum pipe capacity?
Maximum reference capacity: Ø60 × 2 mm carbon steel tube. Capacity varies by material. Contact us to confirm your application.
What is the difference between the GY60NC-3 and GY60NC-7?
The GY60NC-3 uses 3 driven rollers with a compact design. The GY60NC-7 uses 7 rollers for better support and more demanding applications.
Is R ≥ 10D suitable for every material?
R ≥ 10D is the reference minimum for carbon steel. The actual minimum depends on the material, wall thickness, and profile.
Can it roll angle steel or flat bar?
Yes. It can roll round tube, angle steel, flat bar, and other profiles with the correct roller dies.
How much installation space is required?
- GY60NC-3: 1500 × 900 × 1500 mm
- GY60NC-7: 2100 × 1220 × 1100 mm
Leave extra space for loading, unloading, and maintenance.
