Fitness Equipment Tube Bending Machine – Precision Forming for Gym Equipment Frames
Zhuoran Fitness Tube Bending Machine – 4 Key Features
Zhuoran fitness equipment tube bending machines are designed for manufacturing treadmill handles, exercise bike handlebars, strength equipment frames, elliptical machine arms, and other metal tube components. With accurate feeding, rotation, and bending control, you can produce smooth, symmetrical, and repeatable parts while reducing manual adjustment and material waste.
- ✅ Angle repeatability ±0.5° — left and right handles match every time
- ✅ Oval, round, square, and rectangular tube — one machine handles your full range
- ✅ Mandrel support as standard — no flattening on thin-wall gym tubes
- ✅ 3-axis to 6-axis configurations — from simple U-handles to complex 3D frames
Pain Points in Producing Gym Equipment Tube Bending Machines
We’ve worked with gym equipment manufacturers across 30+ countries. The same three problems come up almost every time — and all three come back to the bending machine.
Improve Product Appearance and Symmetry
The pipe fittings of fitness equipment are usually directly exposed. If the bending position is flattened, wrinkled or asymmetrical, it will directly affect the appearance of the entire machine. Treadmill handrails, spinning bike handlebars and elliptical machine swing arms especially require consistent dimensions on both sides.
Zhuoran Machinery’s CNC fitness equipment tube bending machine uses servo feed, rotation and angle control to keep left and right tube parts consistent and reduce manual measurements and repeated corrections.
Reduce Welding and Assembly Problems
If there is a deviation in the angle or length of the pipe fittings, you will easily encounter problems such as misaligned interfaces, inability to fix the clamps, and tilt of the entire machine frame during welding. Even if the deviation of a single pipe is not large, it will be significantly amplified after assembly.
It is recommended to use a three-axis or four-axis pipe bending machine with automatic feeding and program control. The equipment can keep the bending angle, straight line length and rotation angle stable, making subsequent welding and assembly smoother.
Prevent Tube Flattening and Surface Damage
Thin-walled round pipes, oval pipes and decorative pipes are prone to cross-sectional deformation, inner wrinkling and surface scratches when bent at tight radii.
Zhuoran’s mandrel pipe benders support the pipe wall with a mandrel, scraper die and stable clamping mechanism. For stainless steel or pipe fittings with higher surface requirements or before spraying, anti-scratch molds and protective structures can also be configured.

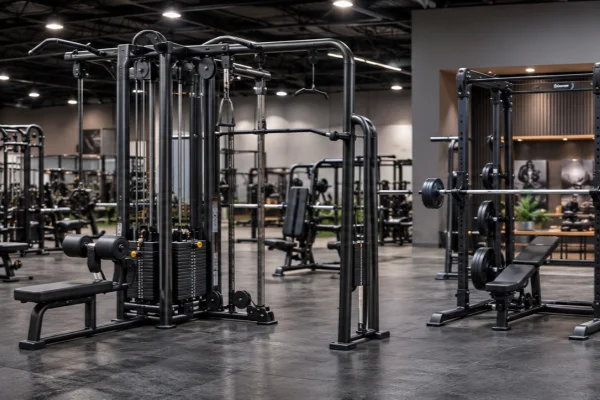

Application of Exercise Equipment Tube Bender
All gym parts need different bending processes. Find your product category below.
Strength training equipment framework
Cross-training machines, bench press racks, squat racks and strength equipment usually use thicker round, square or rectangular tubes, which require higher clamping force and bending torque of the equipment.
Zhuoran hydraulic pipe benders and heavy-duty CNC pipe benders provide stable bending force and are suitable for processing load-bearing frames, support tubes and large-radius structural parts. Stable dimensional control can also reduce welding positioning time and improve the consistency of the entire machine frame.
Armrests and handlebars of aerobic fitness equipment
Treadmills, spinning bikes, elliptical machines, and rowing machines often use round or oval tubing for handrails, handlebars, and swing arms. This type of workpiece has a large number of bends, and needs to ensure left-right symmetry and consistent holding angles.
If your products are mainly two-dimensional handrails and simple U-shaped tubes, you can choose a two-axis or three-axis CNC pipe bending machine; for handrails with rotation angles and spatial shapes, it is recommended to choose a three-axis or four-axis model.
Multi-plane complex pipe fittings
Some commercial fitness equipment uses complex three-dimensional pipeline designs, such as multi-angle armrests, special-shaped supports and ergonomic grips. Manual bending or multiple clampings are prone to rotation errors.
It is recommended to use a four-axis or five-axis CNC pipe bending machine to complete feeding, rotation and multi-plane bending through one clamping to reduce angle errors caused by manual turning.
Fitness Tube Bending Machine – Selection Guide
| Your Workpiece Type | Recommended Machine | Why It Works for You |
|---|---|---|
| Simple U-handles, single-plane tubes | 2-Axis CNC Tube Bender | Lower cost, fast setup |
| Treadmill handles, bike handles, standard frames | 3-Axis CNC Tube Bender | Best balance of speed and repeatability |
| Multi-plane handles, ergonomic grips, swing arms | 4/5-Axis CNC Tube Bender | 3D bending in one setup, fewer errors |
| Thick-wall or heavy load frames | Heavy-duty CNC / Hydraulic Bender | Stable torque and clamping for structure |
| Thin-wall, oval tubes, tight radius | Mandrel Tube Bender package | Reduces flattening and wrinkles |
For most fitness equipment manufacturers, three-axis CNC tube bending machines can usually handle the processing needs of armrests, handlebars and general frames. If your product contains a large number of three-dimensional special-shaped pipe fittings, it is recommended to directly choose a four-axis or five-axis model to avoid replacing equipment due to product upgrades later.
Fitness Equipment Pipe Processing Capabilities
Carbon steel, stainless steel, aluminum and oval profiles are commonly used in fitness equipment, and different materials have different bending properties. Zhuoran Machinery can provide corresponding pipe bending solutions based on material characteristics.

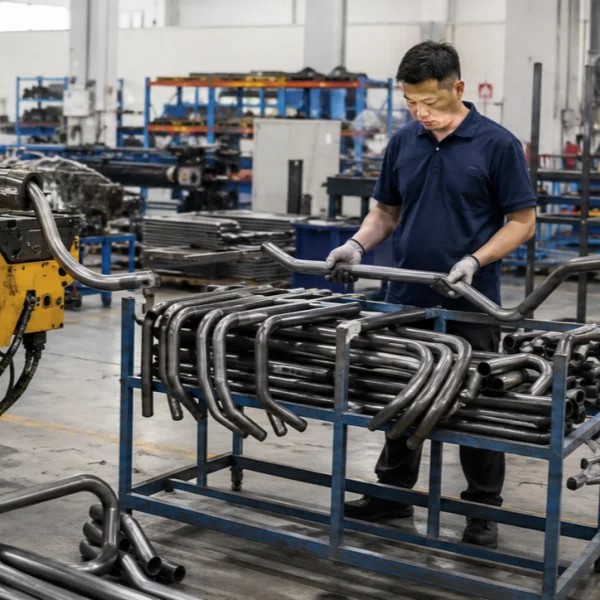

1. Carbon steel:
Commonly used in structural parts such as fitness equipment load-bearing frames and bicycle frames. It has moderate rebound during bending and stable performance. We will preset the springback compensation amount according to the pipe specifications, and it is recommended to use 3-axis or 4-axis CNC equipment for processing.
2. Stainless steel:
It is mostly used in treadmill handrails and decorative handles. It has a large rebound when bent, and the surface is prone to scratches. We solve the problem through a dedicated compensation algorithm, combined with polishing molds and lubrication treatments, and recommend 3-axis or 4-axis CNC equipment.
3. Aluminum:
Suitable for aerobic equipment frames and lightweight handles, with high rebound rate and thin walls that are easy to deform. We use a special compensation solution for aluminum, match the mandrel and reduce the bending speed. We recommend 3-axis or 4-axis CNC equipment for processing.

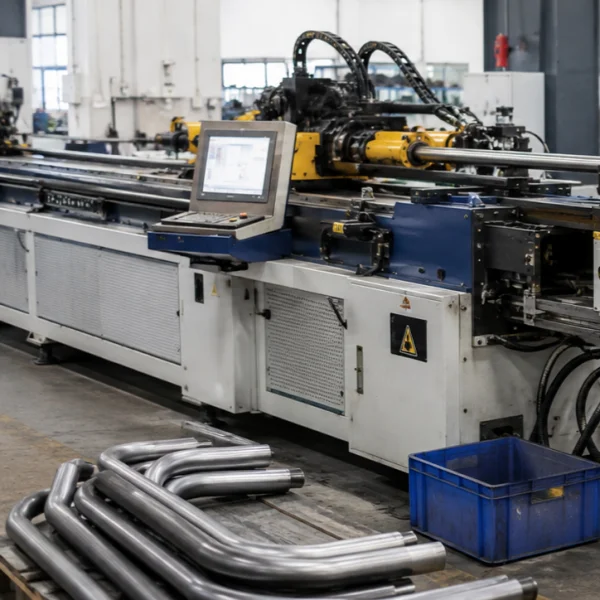

4. Elliptical tube:
Used for treadmill grips, elliptical machine arms, etc. Without proper support, cross-section collapse is easy to occur. We use matching profile elliptical molds and ball-head mandrels, and recommend 3-axis CNC equipment with mandrels.
5. Square tubes/rectangular tubes:
They are mostly used in load-bearing equipment frames and cable machine structures. They are prone to wrinkles at the inner corners and limited bending radius. We use full-profile square molds and anti-wrinkle tools to ensure the processing effect.

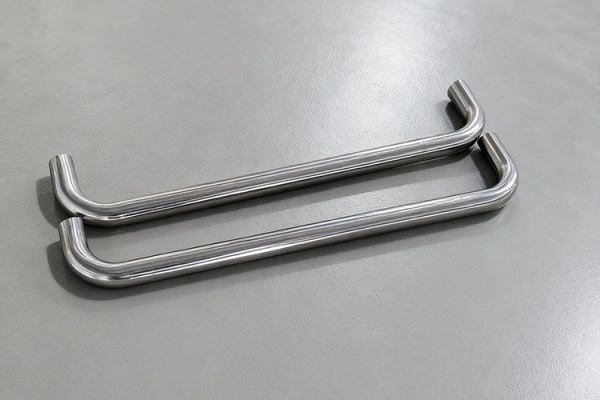

Elliptical Tube Bending – No Distortion, No Rework
Elliptical tubes offer a comfortable grip and are widely used in treadmill handles, elliptical trainer arms, and ergonomic handlebars. However, bending them is far more difficult than bending round tubes. Ordinary equipment lacks dedicated molds, making it easy for the tube’s short axis to collapse and flatten during bending, resulting in numerous defects and rework.
Our bending machine comes with custom-made elliptical molds perfectly adapted to the tube diameter. An internal spherical mandrel provides support, ensuring the tube maintains its shape without deformation after processing, with a smooth surface, allowing for direct assembly and use.
Dedicated Support Services for Distributors/OEM Manufacturers
For equipment distribution and OEM supply to brands, simply looking at machine specifications is far from sufficient. End customers need samples, foreign language technical documents, and native-language after-sales support—we provide all of these in one stop:
① Free sample bending and testing are available; place an order only after confirming the process.
② A complete set of English manuals, debugging tutorial videos, and remote technical guidance can be directly forwarded to your customers.
③ We support equipment OEM and customized configurations; you can purchase a single sample unit for evaluation first.
④ Delivery time, complete documentation, and after-sales terms are all clearly listed in the quotation, ensuring no hidden issues during shipment.
Why Choose Zhuoran for Fitness Equipment Tube Bending?
Flexible Machine Options
Zhuoran Machinery provides two-axis, three-axis, four-axis, and hydraulic tube bending machines for fitness equipment production. Based on your tube material, cross-sectional shape, wall thickness, bending radius, product structure, and daily output, we can configure the right machine, tooling, mandrel, wiper die, and CNC control system for your application.
Multiple Tube Types
Our machines can process round, square, rectangular, and oval tubes made from carbon steel, stainless steel, and aluminum. Customized tooling, mandrels, and wiper dies help reduce wrinkling, flattening, and tube collapse.
Sample Bending Before Delivery
Before delivery, Zhuoran Machinery can test your actual tubes according to your product drawings. You can check the bend angle, surface quality, dimensional accuracy, and assembly performance before the machine leaves the factory.
Better Production Results
Stable CNC control helps you keep bend angles, tube lengths, and left-right parts consistent. This reduces welding adjustment, assembly errors, material waste, and rejected frames while improving the appearance of powder-coated and chrome-plated fitness equipment.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
What Fitness Equipment Parts Can the Machine Produce?
It can produce treadmill handles, exercise bike handlebars, elliptical machine arms, strength equipment frames, support tubes, and other bent metal components.
Can the Machine Bend Square and Oval Tubes?
Yes. Zhuoran machines can be equipped with customized tooling for round, square, rectangular, and oval tubes.
How Do You Prevent Tubes from Flattening?
For thin-wall tubes and tight bending radii, we recommend mandrel support, a wiper die, suitable clamping pressure, and optimized bending speed.
Should I Choose a CNC or Hydraulic Tube Bending Machine?
Choose a CNC machine for complex parts, automatic production, and frequent product changes. A hydraulic pipe bending machine is suitable for simpler, thicker, or heavy-duty fitness equipment frames.
