Chinese Supplier of Pipe Rolling Machines
From manual to electric, from small-diameter pipes to heavy-duty pipes—Zhuoran Machinery provides factory-direct pipe rolling machines to meet the rolling needs of industries such as furniture, fitness equipment, automobiles, and construction.
Product Description of Tube Rolling Machine

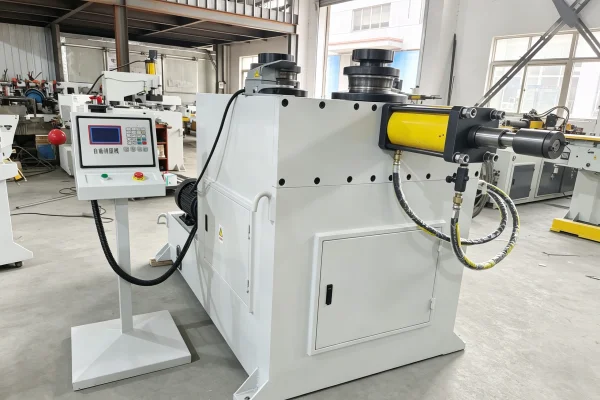

Zhuoran Machinery’s pipe rolling machine series includes four main models: GY40NC, GY60NC, GY80NC, and GY100NC, suitable for rolling various pipe materials such as round, square, and rectangular tubes.
Equipped with a CNC control system, electro-hydraulic drive, and a three-roll rolling structure, each rolling process ensures precision, stability, and repeatability. We can provide you with stable and reliable rolling solutions, factory direct supply, high cost-effectiveness, and comprehensive after-sales support.
Model of Tube End Forming Machine
Choose our CY40NC, CY60NC, CY80NC, and CY100NC pipe rolling machines. Process round, square & oval tubes, wide diameter range, reliable rolling equipment for pipe fabrication factories worldwide.
GY40NC
✅ CNC system, high rolling precision and strong repeatability.
GY60NC
✅ Compatible with various tube shapes including round, square, and rectangular tubes
GY80NC
✅ Factory direct supply, exported to 80+ countries, competitive pricing
GY120NC
✅ Hydraulic/electric dual drive optional, no collapse during forming
3-Roll Pipe Rolling Machine Specifications
| Model | Max. Bending Capacity (Carbon Steel) | Min. Bend Radius | Bending Speed | Die Diameter | Shaft Diameter |
|---|---|---|---|---|---|
| GY40NC-7 | Φ40mm × 2mm | R ≥ 10D | Adjustable | 126mm | 40mm |
| GY60NC-7 | Φ60mm × 2mm | R ≥ 10D | Adjustable | 180mm | 60mm |
| GY80NC-7 | Φ80mm × 4mm | R ≥ 10D | 150mm/s | 200mm | 60mm |

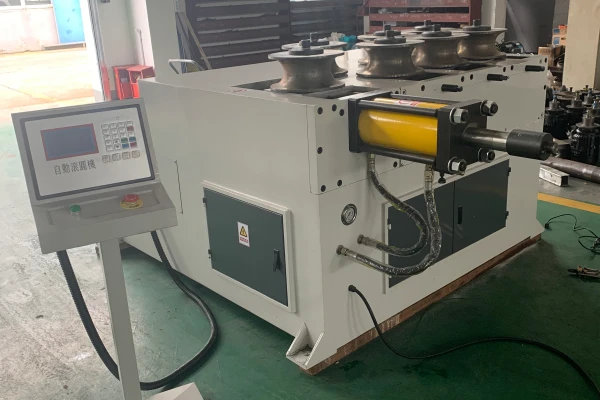

| GY120NC-7 | Φ120mm × 6mm | R ≥ 10D | 100mm/s | 300mm | 100mm |
7-Roll Pipe Rolling Machine Specifications
| Model | Max. Bending Capacity (Carbon Steel) | Min. Bend Radius | Bending Speed | Die Diameter | Shaft Diameter |
|---|---|---|---|---|---|
| GY40NC-7 | Φ40mm × 2mm | R ≥ 10D | Adjustable | 126mm | 40mm |
| GY60NC-7 | Φ60mm × 2mm | R ≥ 10D | Adjustable | 180mm | 60mm |
| GY80NC-7 | Φ80mm × 4mm | R ≥ 10D | 150mm/s | 200mm | 60mm |
| GY120NC-7 | Φ120mm × 6mm | R ≥ 10D | 100mm/s | 300mm | 100mm |
Core Highlights
Stable and easy-to-operate forming structure, equipped with anti-slip rollers and double-side feeding design
Wide processing range, suitable for large radius profiles, compatible with a variety of metal materials
The CNC system can store multiple sets of rolling parameters, eliminating the need for manual adjustments when switching products.
Equipped with 3/7 driving rollers, it delivers strong anti-slip effect and supports bending thin-walled tubes smoothly.
Electro-hydraulic drive provides stable rolling force, suitable for thick-walled pipes
What to Confirm Prior to Pipe Rolling Machine Purchase
What are the outer diameter, wall thickness, and material of the pipe?
These three parameters directly determine the equipment model and hydraulic configuration. The rolling force requirements differ significantly between thin-walled aluminum pipes and thick-walled carbon steel pipes.
Please confirm your maximum pipe diameter, maximum wall thickness, and main material before requesting a quote to ensure accurate selection and avoid insufficient or over-configured equipment.
What is your target rolling radius range?
The rolling radius determines the roller configuration and die specifications. Very small radius rolling requires higher equipment structural rigidity and hydraulic pressure; large radius rolling is relatively easier to achieve.
Please provide your minimum and maximum target rolling radii, and our engineers will verify whether the standard model can meet the requirements or whether a customized roller configuration is needed.
What are your production volume and mixed-spec line demands?
If your product line covers various pipe diameters and different rolling radii, the parameter storage function built into the CNC system can significantly reduce changeover time and effectively improve the utilization rate of the entire machine.
If you only process a single fixed pipe specification, the basic standard configuration can meet your production needs, without the need to incur additional costs for extra features.
8 Advantages of Our Pipe Rolling Machines
- Easy radius adjustment, simple to standardize process data
- Stable roller pressing, consistent curved shapes
- Optional guide parts, stop long pipes from shifting
- Custom roller grooves to fit your pipe shapes
- Simple operation, less need for skilled workers
- Strong solid build, good for long-time continuous work
- Smooth finished surface, less extra polishing work
- Easy to connect to production lines, simple auto upgrade
Guidance and Routine Maintenance
How to Maximize the Efficiency of Your Pipe Rolling Machine?
Confirm the straightness of the pipe before rolling.
Bent or non-straight raw pipes directly affect the roundness and consistency of the roll. Ensure the pipe has been straightened before processing in the pipe rolling machine, especially for aluminum alloys and thin-walled pipes. The quality of the raw material directly determines the upper limit of the finished roll quality.
Adjust the rolling speed and pressure rollers according to the material.
Stainless steel and high-strength alloy steel require lower rolling speeds and higher pressure rollers; aluminum alloys and copper pipes are sensitive to surface scratches, requiring appropriately reduced pressure and lubrication of the roller surfaces. Before starting a new batch of production, it is recommended to verify the parameter settings with a sample.
Regularly inspect and maintain the rollers and hydraulic system.
Roller wear is one of the main factors affecting rolling accuracy. It is recommended to check the roller surface condition weekly and replace them promptly if indentations or wear are found. The hydraulic oil level and hydraulic system sealing should be checked monthly to ensure stable hydraulic rolling force output.
Store all your specifications using the NC system.
Before mass production, the optimal rolling parameters for each pipe specification are stored in the NC system. These parameters can be directly retrieved during subsequent production runs without requiring recalibration, saving changeover time and ensuring consistent rolling parameters across batches, thus reducing scrap rates.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
What products is a pipe rolling machine suitable for?
It’s suitable for making large-radius arc parts, ring-shaped rolled parts, curved sections of railings, curved structural parts for furniture and fitness equipment frames, and curved connection sections for HVAC systems.
Should I choose GY40NC or GY100NC?
It depends on your pipe diameter, wall thickness, material strength, and target radius range. Larger diameters, thicker walls, and harder materials require models with higher rigidity and greater capacity. Send me your pipe parameters, and I can recommend one.
What's the difference between a pipe rolling machine and a pipe bending machine?
Pipe bending machines are better suited for small/medium radius fixed-angle bending; pipe rolling machines are better suited for large-radius arcs and continuous arc forming. Many factories use both in combination.
Do you support customized rollers?
Yes. Roller grooves and surface treatments can be customized according to your pipe shape, appearance requirements, and process goals. This is crucial for ensuring forming quality.
Can it be integrated with automated production lines?
Yes. Depending on your pace and site plan, we can configure feeding assistance, positioning guidance, and other solutions to facilitate continuous processes with equipment such as pipe cutting, pipe bending, and end forming.
