Sample Service
In Zhuoran, we do not merely consider ourselves as the manufacturers of machines, but also as partners in the customers’ innovation journey. Every time we receive new drawings or pipe design plans, it feels like receiving an unopened letter from a friend – filled with hope, creativity and uniqueness. We understand that for our customers, turning the design into reality is far more than just a technical step; it is the spark that turns their ideas into reality.
Sample Proofing Service - Dispel Your Purchasing Concerns with Sincerity
Many factories treat sample making as a mere transaction, but Zhuoran views it as the beginning of building trust between both parties. When clients send drawings and samples, they are entrusting their product concepts and quality expectations to us. We are committed to simplifying the entire process, ensuring your peace of mind throughout.
Our service principles are clear and easy to understand: clients only need to bear the cost of custom-made molds for their products; pipe processing, sample making, and equipment debugging are all handled free of charge by us.
One client was developing a new motorcycle exhaust pipe and initially worried about the initial sampling costs. After understanding our policy, all concerns disappeared. They only paid for the mold and quickly received a qualified finished sample for testing.
This model eliminates unknown procurement risks for you: we do not charge multiple processing and debugging fees, allowing you to confidently produce samples. Once the mold arrives, senior engineers meticulously calibrate the equipment, control every bending detail, and polish a standard-compliant finished sample.
Send Us Your Pipes — We'll Send You Finished Bent Samples
Unsure if your machine can produce pipes without wrinkles, flattening, or surface damage? Zhuoran Machinery offers free pipe bending sample testing. Simply provide your actual pipe and product drawings.
Our engineers will evaluate your pipes, configure the appropriate machine and molds, complete the trial bend, and provide a detailed measurement report. You can inspect the finished samples before selecting equipment.
Highlights:
- Free sample bending
- Actual customer tubes and drawings
- Detailed measurement report
- Standard delivery in 5–7 days
- Tube diameter range: Φ6–Φ168 mm
Test Your Tube Before Choosing a Bending Machine
Selecting a pipe bending machine based only on catalog specifications can be risky. Tube material, wall thickness, bending radius, cross-sectional shape, and surface condition all affect the final result.
Our tube bending test service allows you to verify the process before purchasing equipment. Instead of relying only on theoretical calculations, you can examine the actual bend angle, ovality, wall thinning, wrinkles, and surface condition.
The free tube bending sample test is especially valuable for thin-wall tubes, tight bending radii, polished stainless-steel tubes, aluminum tubes, and complex multi-bend parts.
How is the Pipe Bending Sample Test Conducted?
A Simple Five-Step Sample Bending Process
1. Send Your Tube Information
Provide your product drawing, tube material, outside diameter, wall thickness, bending radius, bend angle, and required production capacity.
You may also send actual tube samples to Zhuoran Machinery for testing.
2. Measurement and Test Report
Our engineers review the drawing and evaluate the tube’s bending feasibility. We determine the suitable machine type, tooling structure, mandrel, wiper die, clamping method, and process parameters.
If there is a high risk of wrinkling, collapse, excessive wall thinning, or springback, we will explain the problem before testing.
3. Sample Bending
We install the required tooling and perform a CNC bender sample test using your actual material or an agreed equivalent tube.
The bending speed, clamping force, mandrel position, pressure-die movement, and springback compensation are adjusted according to the tube characteristics.
4. Engineering Evaluation
After bending, our engineers inspect the finished sample. Key dimensions and forming conditions are recorded in the sample report.
Photos and videos can also be provided so you can review the process and finished result remotely.
5. Sample Return and Machine Recommendation
The completed bent samples can be returned to you for dimensional inspection, welding tests, assembly verification, coating tests, or internal approval.
Based on the test results, Zhuoran Machinery recommends the appropriate machine, tooling, and production configuration.
Core Verifiable Quality Indicators of Zhuoran
Free pipe bending sample testing allows for early detection of potential production problems and mitigates equipment purchase risks.
1. Bending Accuracy and Springback Control
Precisely verifies bending radius, angle, and total pipe length. For different materials such as stainless steel and aluminum, compensation parameters are matched to lock in standard processing angles, reducing subsequent welding and equipment issues.
2. Pipe Ovality Detection
Detects the amount of deformation in the bending section. Excessive deformation weakens pipe strength, hinders fluid flow, and causes assembly jams. Optimized processes using specialized molds control ovality within acceptable ranges, improving the flattening defects of thin-walled and elliptical pipes during bending.
3. Forming Defect Detection
Verifies the wall thickness reduction after bending and stretching, ensuring compliance with your quality control standards. Addressing the pain points of wrinkling and collapse in small-diameter, thin-walled parts, optimized parameters using mandrels and scraper dies reduce mass production rework and material loss.
4. Surface Quality Inspection
Polished stainless steel, chrome-plated, and aluminum alloy decorative pipe fittings are prone to scratches and mold marks. We use coated molds and professional lubrication to protect the pipe surface. Samples are used to visually verify the appearance, preventing finished products from being scrapped due to appearance defects. Suitable for the fitness equipment, automotive, and high-end furniture industries.

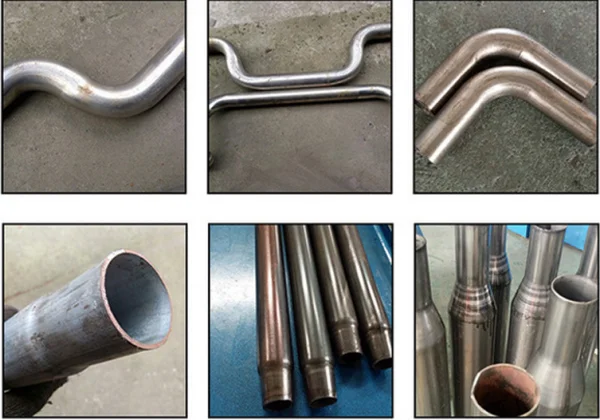

Supported Tube Materials for Zhuoran’s Test Service
We can optimize the process for various types of industrial pipes commonly used in your production and combine the characteristics of different pipes to help you avoid processing defects in mass production in advance and ensure that the equipment fully adapts to your production needs.
We support testing of stainless steel pipes, carbon steel pipes, copper pipes, aluminum pipes and titanium alloy pipes, covering your production scenarios in automobiles, fitness equipment, construction machinery, HVAC, medical equipment, high-end decoration and other industries.
Focus on testing springback control, surface protection and anti-wrinkle performance, verify bending force, angle accuracy and production efficiency to ensure batch processing stability; avoid flattening and wrinkling problems during mass production; we recommend that you verify the process in advance through sample testing before model selection and mold production to avoid the risk of large investments.
Supported Tube Shapes and Sizes
Our sample bending service supports tube diameters from Φ6 mm to Φ168 mm, depending on the material, wall thickness, bending radius, and machine configuration.
Supported Tube Cross-Section Profiles
Our Sample Service Commitment
We offer free standard pipe bending samples and can customize samples based on your pipe specifications and product drawings. For custom molds, complex process testing, raw material sourcing, or special shipping options, we will provide a separate quote. Standard sample orders will be bent and a complete inspection report will be issued within 5-7 business days of receiving your pipes and technical documents; for projects requiring custom molds or complex process development, the delivery time will be extended.
All finished samples come with complete testing documentation, including dimensional measurements, product photographs, forming analysis, and customized machine setup recommendations. We strictly protect your intellectual property: your drawings and product data will only be used for engineering evaluations, sample testing, and equipment configuration related to your order and will never be shared externally.

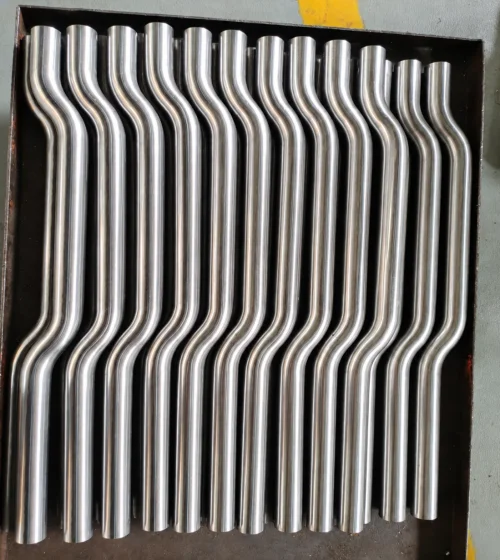

Why Choose Zhuoran for Pipe Sample Bending?

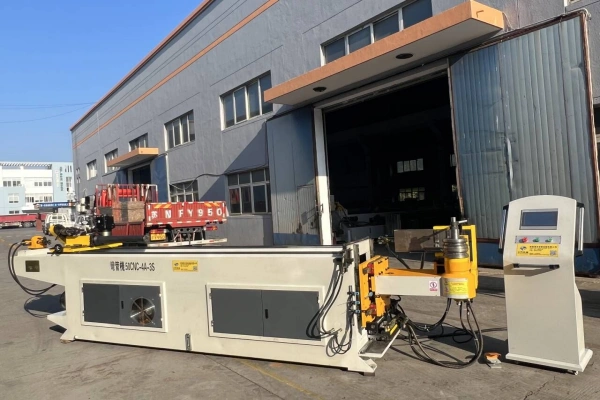

Zhuoran Machinery manufactures two-axis, three-axis, four-axis, five-axis, hydraulic, mandrel, and automatic tube bending machines. Because we also design the tooling and develop the bending process, our engineers can evaluate the complete relationship between the tube, machine, tooling, and finished product.
A successful pipe sample bending project can help you:
- Reduce machine-purchasing risk
- Confirm bending feasibility
- Prevent wrinkles and tube collapse
- Verify dimensional accuracy
- Compare machine configurations
- Estimate tooling requirements
- Improve welding and assembly
- Reduce material waste
- Shorten new-product development time

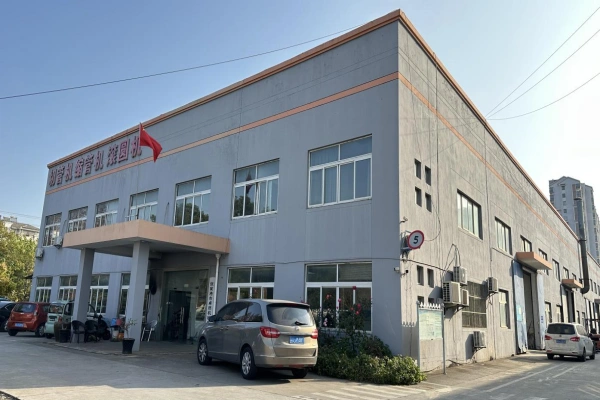

Why Choose Zhuoran for Pipe Bending Sample Testing?
Zhuoran independently manufactures 2- to 6-axis CNC, hydraulic, and fully automatic pipe bending machines with mandrels, and also independently develops supporting molds and bending processes. Our engineers can comprehensively assess the overall matching relationship between pipe materials, equipment, molds, and finished product quality, providing a one-stop solution for various bending process challenges.
Completing pipe sample testing can comprehensively reduce your early-stage R&D and procurement risks: verify the feasibility of the bending process in advance, avoiding defects such as pipe wrinkling and flattening; measure dimensional accuracy, compare different machine configurations, and calculate mold procurement costs; optimize subsequent welding and assembly processes, reduce material waste, and significantly shorten the new product development cycle.
Submit Your Tube for a Free Sample Bending Test
Do not choose a bending machine based only on catalog specifications. Send Zhuoran Machinery your actual tube, product drawing, and production requirements. We will evaluate the process, perform the trial bending, and provide finished samples with measurement results.
How many pipe samples should I send?
We recommend sending 3-5 straight pipes, each 300-500 mm in length. This allows us to test the repeatability of multiple bends and confirm that the test result of the first pipe is not accidental.
What delivery documents will be provided after testing?
After testing, we will send the bent samples back to you, along with a detailed quality inspection report, including dimensional measurement data, actual photos of the samples, forming effect analysis, process optimization suggestions, and suitable equipment configuration solutions for your acceptance.
Do I need to provide drawings?
Drawings are helpful but not required. At a minimum, please inform us of your pipe material, outer diameter, wall thickness, target bending angle, and bending radius. If you have a 3D model or 2D printed part, please provide it as well so that we can more accurately select the appropriate cutting tools.
Can Zhuoran test thin-walled pipes?
Yes. Thin-walled pipes can be tested using appropriate mandrels, dies, presses, and bending processes. The final design depends on the material, pipe diameter, wall thickness, and bending radius.
