CNC Pipe Bending Machine Manufacturer
Zhuoran CNC tube bending machines are specifically designed for tube processing applications that require precise control over feeding and rotation, repeatable bending programs, and consistent dimensional accuracy.
Selecting the appropriate CNC tube bending machine requires a comprehensive assessment of factors such as tube diameter, wall thickness, material, centerline bending radius, bending angle, number of bends, production batch size, and inspection requirements.
CNC Pipe Bending Machine Advantages
4 Key Selling Points of CNC Pipe Bending Machines
From 2-axis to selected 6-axis configurations, Zhuoran provides model-based CNC pipe bending machine solutions for different tube sizes, geometries and production requirements.
Different Tube Capacity Options
Selected machine models can be evaluated for small, medium and large tube components.
Industrial CNC Control Functions
Available functions may include program storage, springback compensation and controlled feeding or rotation.
Factory-Based Project Support
Machine selection, tooling evaluation and sample validation can be planned around the actual part.
CNC Control and Production Functions
Core Functions of CNC Tube Bending Equipment
Available functions depend on the selected CNC pipe bending machine model and control system.
Touchscreen Numerical Control
Selected configurations may include a touchscreen interface for setup, parameter adjustment and operation.
XYZ and YBC Program Input
Selected control systems support XYZ or YBC input for preparing tube bending programs.
STEP File Import
STEP import may be available on selected configurations. Confirm the supported file format and workflow.
Interference Detection
Selected systems may provide warnings to help review possible tooling and workpiece conflicts.
Springback Compensation
Compensation settings should be based on material, radius, tooling and actual sample results.
3D Bending Simulation
Selected controls may help review the bending sequence before production.
Program Management
Program storage, access control and production records depend on the selected control system.
Multi-Layer Mold Options
Selected configurations may reduce changeover requirements between different bending radii.
Confirm STEP import, simulation, interference detection, language options and program capacity for the selected machine model.
CNC Machine Specifications
CNC Pipe Bending Machine Core Specifications
These are configuration references, not specifications for every machine. Final values must be confirmed against the selected model and actual tube requirements.
| Specification | Reference Detail |
|---|---|
| Tube Diameter | Model-dependent, from small tube components to large tube applications |
| Wall Thickness | Depends on material, diameter, bend radius and selected model |
| Bending Radius | Depends on tube OD, wall thickness, tooling and forming method |
| Bending Angle | Selected configurations support approximately 180° or 190° |
| Axis Configuration | 2-axis, 3-axis, 4-axis, 5-axis and selected 6-axis configurations |
| Mold Layers | Single-layer, double-layer, triple-layer or project-specific configurations |
| Control System | Numerical control with touchscreen operation on selected models |
| Input Format | XYZ or YBC input on selected CNC configurations |
| Material Range | Carbon steel, stainless steel, aluminum, copper and other approved materials |
Confirm the exact specification against the model, drawing, tooling design and sample test.
CNC Machine Selection
How to Select the Right CNC Pipe Bending Machine
Tube diameter alone is not enough. The machine must also match material, wall thickness, centerline radius, bend sequence, production volume and inspection requirements.
Tube and Material Requirements
- Tube outside diameter and wall thickness
- Material grade and material condition
- Centerline radius and minimum bend radius
- Surface protection requirements
- Permitted ovality and wall deformation
Geometry and Production Requirements
- Number of bends and bend-to-bend distances
- Tube rotation and three-dimensional geometry
- Bend angle and final orientation
- Production volume and changeover frequency
- Manual, semi-automatic or automatic operation
CNC Machine Configurations
Choose a CNC Pipe Bending Machine by Part Geometry
2 Axis CNC Pipe Bending Machine
Can be evaluated for simpler tube geometries with limited spatial movement and fewer forming requirements.
3 Axis CNC Pipe Bending Machine
Can be evaluated for components requiring coordinated feeding, tube rotation and bending.
4 Axis CNC Pipe Bending Machine
Can be evaluated when the part requires more flexible forming control or additional mold adjustment.
Advanced CNC Pipe Bending
Advanced CNC Pipe Bending Machine Configurations
5 Axis CNC Pipe Bending Machine
Can be considered for complex multi-bend components, additional forming operations and higher production flexibility.
6 Axis CNC Pipe Bending Machine
Selected configurations may be evaluated for complex geometries, multiple forming operations and advanced automation.

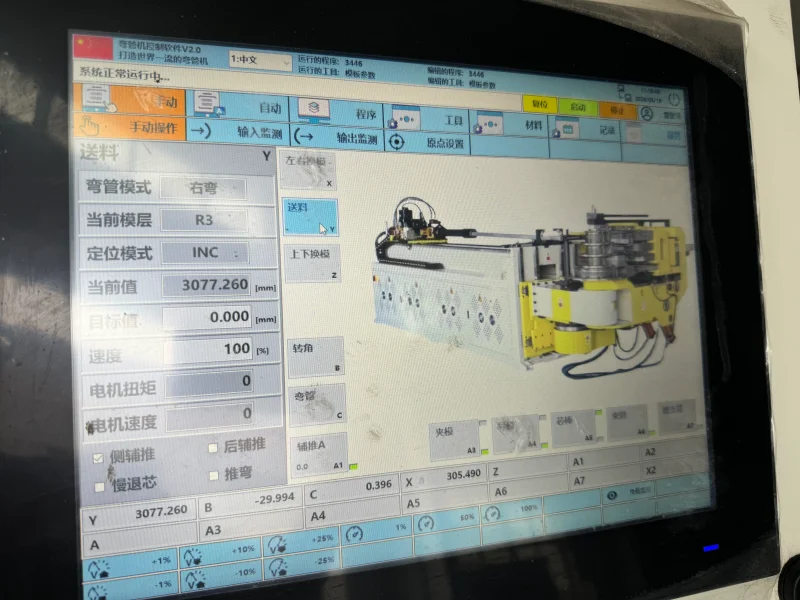

Model-Dependent CNC Control
Axis quantity, servo control, mold adjustment and programming functions depend on the selected machine model. Confirm the final selection by reviewing the drawing and sample.
Tooling and Forming Process

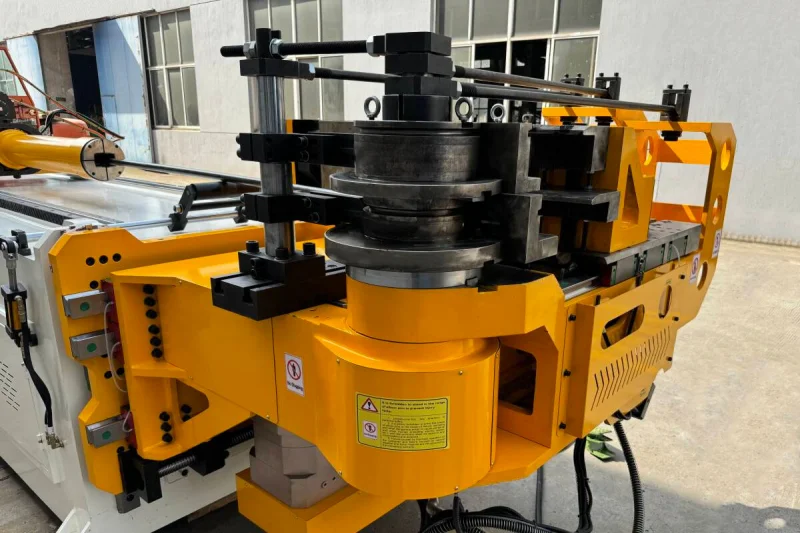

CNC Pipe Bending Machine Tooling Must Match the Tube
CNC pipe bending results depend on the relationship between the machine, tooling and tube material.
- Mandrel support for thin-wall tubes and tight radii
- Wiper die support for wrinkle-sensitive applications
- Pressure-die support for controlled deformation
- Springback compensation based on sample results
- Tooling selection based on tube OD, wall thickness and CLR

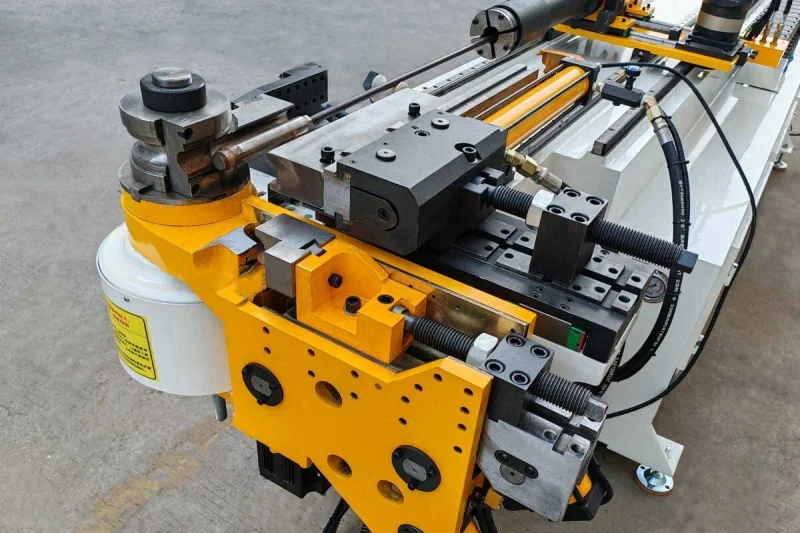

CNC Sample Validation
Verify the CNC Pipe Bending Machine Process Before Production
Before final machine selection, review the tube drawing, material, tooling requirements and inspection criteria together.
- Part drawing or 3D model
- Tube material and material condition
- Tube outside diameter and wall thickness
- Centerline radius and bend sequence
- Rotation angle and final orientation
- Inspection method and acceptance criteria
CNC Automation Solutions
Automatic CNC Pipe Bending Machine Production Line
Loading, unloading, cutting, transfer, inspection and sorting can be configured according to production rhythm and factory layout.
- Automatic tube loading and positioning
- Servo or pneumatic unloading
- Tube cutting and end preparation
- Inline dimensional inspection
- Good and nonconforming part separation
- Integration with tube end forming equipment
CNC Pipe Bending Applications
CNC Pipe Bending Machine Applications
Automotive CNC Pipe Bending Applications
Potential applications include exhaust tubes, brake and fuel lines, chassis tubes and thermal-management components.
VIEW AUTOMOTIVE TUBE BENDING SOLUTIONS →

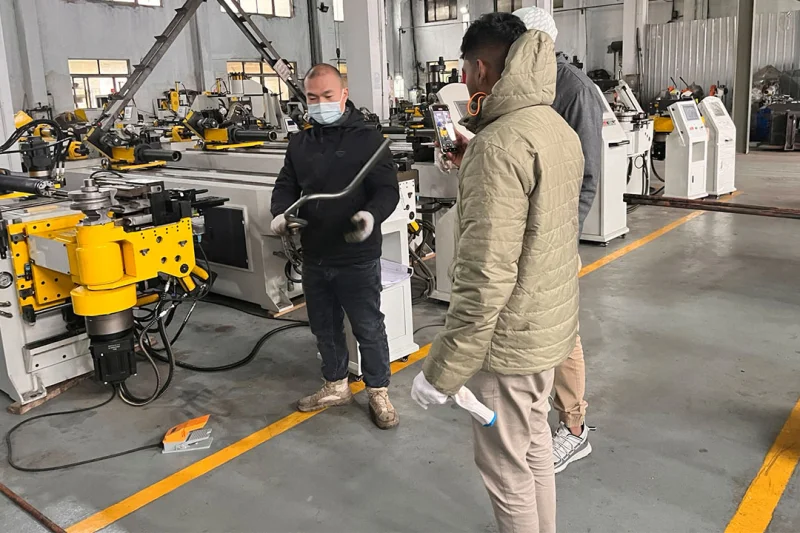

HVAC CNC Pipe Bending Applications
Refrigeration, air-conditioning and heat-pump tube components may require stable routing and repeatable endpoints.
VIEW HVAC TUBE BENDING SOLUTIONS →

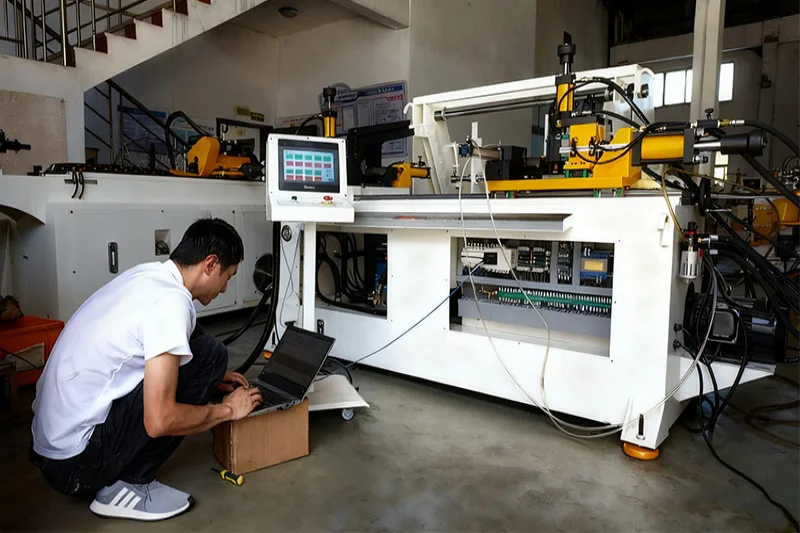

Industrial CNC Tube Bending Applications
Industrial, furniture, fitness, motorcycle and structural tube parts should be evaluated by material, geometry and volume.
REVIEW TUBE BENDING DEFECT CONTROL →Machine Comparison
CNC vs NC vs Automatic Tube Bending Equipment
Choose by part complexity, production volume, operator workflow and the required level of integration.
| Comparison Item | NC Machine | CNC Machine | Automatic Production Line |
|---|---|---|---|
| Control Method | Operator-assisted control | Programmable CNC control | Integrated line control |
| Automation Level | Manual or semi-automatic | Model-dependent automated bending cycle | Integrated feeding, bending and unloading |
| Programming | Simple parameter input | Program-based bending sequences | Integrated production-line programming |
| Product Complexity | Simple or moderate geometry | Multi-bend and multi-plane geometry | Standardized complex parts at volume |
| Investment Level | Generally lower initial investment | Configuration-dependent investment | Higher integration investment |
CNC Machine Investment
CNC Pipe Bending Machine Price: What Changes the Quote?
Price depends on tube capacity, axis configuration, tooling, automation and inspection requirements.
- Tube diameter and wall thickness
- Axis configuration
- Single-layer or multi-layer tooling
- Mandrel, wiper die and boosting options
- Feeding stroke and machine length
- Automatic loading and unloading
- Inspection and production-line integration
Before Selecting a Machine
Check Your Part Requirements, Not Only Tube Size
Confirm Tube and Material Information
Confirm outside diameter, wall thickness, material grade, material condition and minimum bending radius.
Review Bend Geometry
Review bend angles, bend-to-bend distances, tube rotation, endpoint location and final orientation.
Match Automation to Production
Automation should match material flow, batch size, tooling changes, inspection and factory layout.
Consider Maintenance and Support
Review maintenance access, tooling replacement, lubrication needs and technical support.

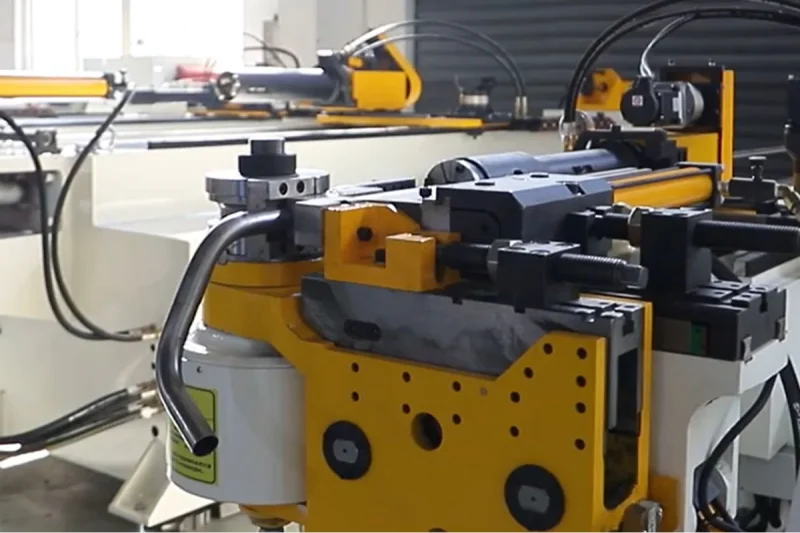

Project-Based CNC Support
Build a CNC Pipe Bending Machine Solution Around Your Part
Zhuoran can review the drawing, material, dimensions, bend sequence, production volume and inspection requirements before recommending a configuration.
- Machine model evaluation
- Axis configuration review
- Mandrel and tooling recommendation
- Sample bending and process verification
- Automation and production-line planning
Factory-Based CNC Solutions

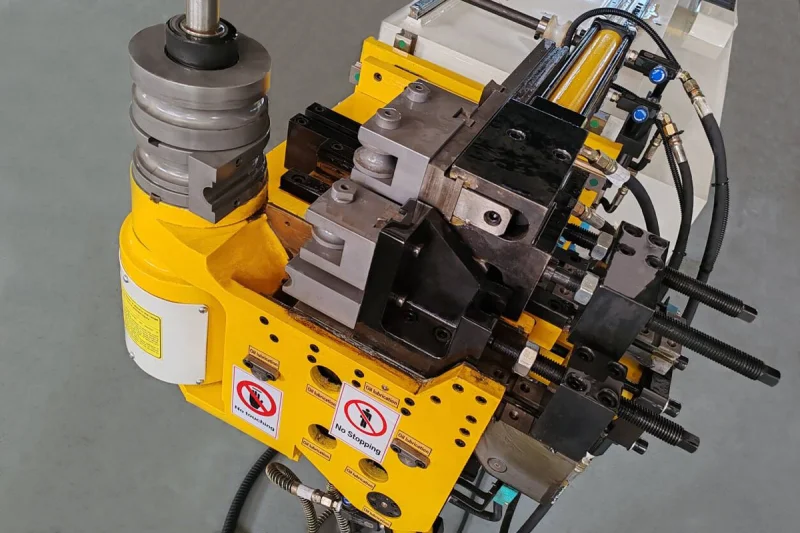

Competitive CNC Pipe Bending Machine Solutions
Zhuoran provides model-based solutions for different tube sizes, materials, production volumes and tooling requirements.
Each quotation should define machine capacity, axis configuration, tooling scope, automation requirements and inspection needs. This helps compare configurations against the actual part instead of headline price alone.
CNC Pipe Bending Machine FAQ
Get Your CNC Pipe Bending Machine Recommendation
Share your tube drawing, material, dimensions, bend radius, bend sequence, production volume and inspection requirements. Zhuoran can help evaluate the model, tooling arrangement and validation route.
REQUEST A SAMPLE REVIEWWhat is the price of a CNC pipe bending machine?
The final price depends on tube capacity, axis configuration, tooling, automation and inspection requirements. A drawing-based quotation is more useful than a general price range.
What tube sizes can a CNC pipe bending machine process?
Capacity is model-dependent. Final suitability depends on tube outside diameter, wall thickness, material and bend radius.
Can the machine process stainless steel and aluminum tubes?
Selected configurations may be evaluated for stainless steel, aluminum, copper, carbon steel and other approved materials. Confirm the recommendation through tooling review and sample testing.
Can the machine import a 3D tube design?
STEP import and related functions must be confirmed for the selected CNC control system and machine configuration.
Do I need a mandrel for tube bending?
Mandrel support may be needed for thin-wall tubes, tight radii or strict ovality and wall-deformation requirements.
How do I choose between NC and CNC equipment?
NC equipment may suit simpler or operator-assisted production. CNC equipment is generally considered for repeatable multi-bend, multi-plane and program-based production.
