Special CNC pipe bending machine for metal furniture pipe fittings – chair frame, armrest, table frame, all done in one machine
Metal Furniture Tube Bending Solution for Your Factory
If you are engaged in the production of metal furniture, once the pipe bending accuracy is unstable, it will cause chain problems: misalignment of pipe fittings during welding, a surge in grinding workload, all surface defects exposed after spraying, and a large amount of rework, which directly consumes profits and delays delivery.
We serve the pain points of pipe bending in over 50 factories in the furniture industry. We specialize in customizing CNC pipe bending solutions and integrate pipe cutting, chamfering, and pipe end forming processes to help them create a smooth and coherent pipe processing process.
We continuously optimize the production experience: full coverage of Ø16–Ø89mm furniture-specific pipes; double-layer/three-layer molds support quick mold changes without stopping the machine; standard polishing molds, which can be directly painted and electroplated after bending; built-in 500 sets of process procedures, newcomers can operate independently in one day, and the products take into account efficiency, quality, and cost-effectiveness.

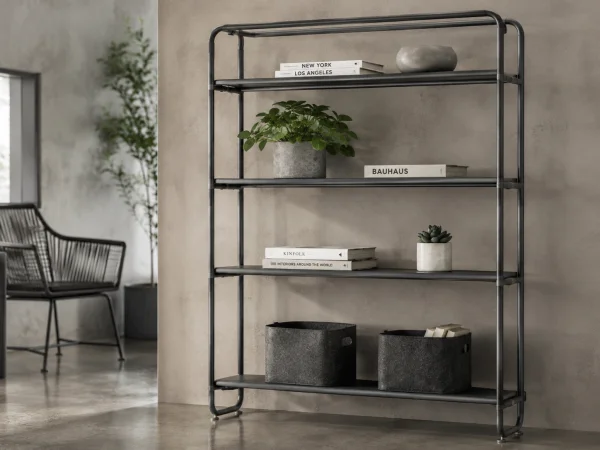

Tube Bending Challenges for Furniture Industry
In furniture manufacturing, products such as chair frames, table frames, armrests, display frames, bed frames, etc. have a large demand for metal bent pipes. Traditional manual bending is obviously affected by experience, making it difficult to control springback and poor dimensional consistency. The yield rate of chair frames is usually only 70% to 85%, which easily causes welding and assembly rework, increases labor costs and affects delivery time.
Our pipe equipment uses three-dimensional programming, multi-axis linkage and automatic compensation technology to process multi-angle complex pipe bends, increasing the yield rate to more than 98%, which can help you effectively improve efficiency and product consistency to meet large-scale production needs.
Tube Applications for Furniture
There are many types of pipe fittings in the furniture industry, and different products have very different requirements for pipe bending machines. We have sorted out the six most common scenarios to help you quickly determine what configuration you need.

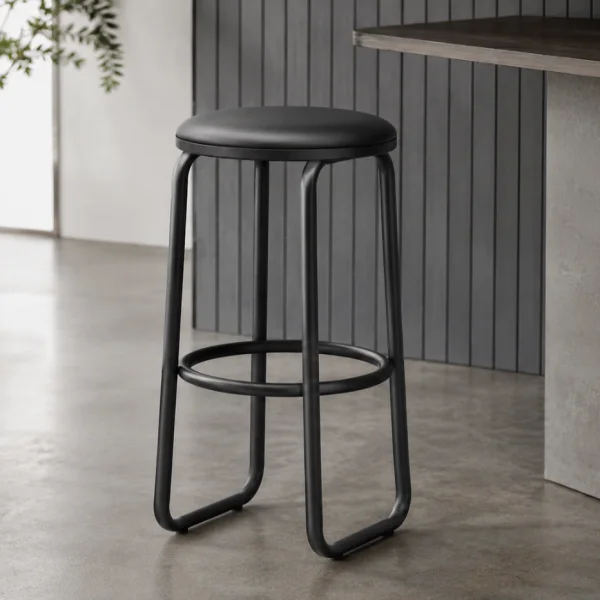

Chair frame and chair back tube
Chair frames mostly use Ø19–Ø38mm thin-walled round tubes with a wall thickness of about 1.2–2.0mm. The problem is: there must be no indentations on the surface, and the left and right chair legs must be highly symmetrical, otherwise the finished product will easily shake and become unstable.
Our chair frame bending machine comes standard with high-precision polishing molds to reduce bend indentation; with closed-loop servo control, the angle accuracy can be controlled within ±0.1°. The left and right parts are processed using the same program to ensure consistent dimensions and symmetrical structure, reducing assembly correction and rework.
Handrails and guardrail tubes
Guardrails and handrails are mostly made of stainless steel or aluminum alloy round tubes with an outer diameter of about Ø25–Ø51mm. The difficulty lies in the fact that the product is in direct contact with the user and has high surface requirements, especially for mirror-plated parts. Small scratches will be magnified.
Our handrail bending machine is equipped with a mirror-polished special mold and uses special lubrication protection on the bending contact surface to reduce scratches and indentations. After bending the pipe, you can directly enter the electroplating process, reducing manual polishing and helping you reduce post-processing costs.
Shelves and storage rack pipe fittings
Shelf products mostly use carbon steel round tubes or square tubes, which have large batch sizes and few elbows, but require high production rhythm and equipment stability. The problem is: Once the equipment is down, the entire assembly line will be slowed down.
Our adopts a heavy-duty welded steel frame structure, and the hydraulic and servo systems are suitable for continuous production conditions and can support stable operation for multiple shifts. If your shelf products are in large batches, you can also configure an automatic feeding system to reduce manual participation and increase the output of each shift.

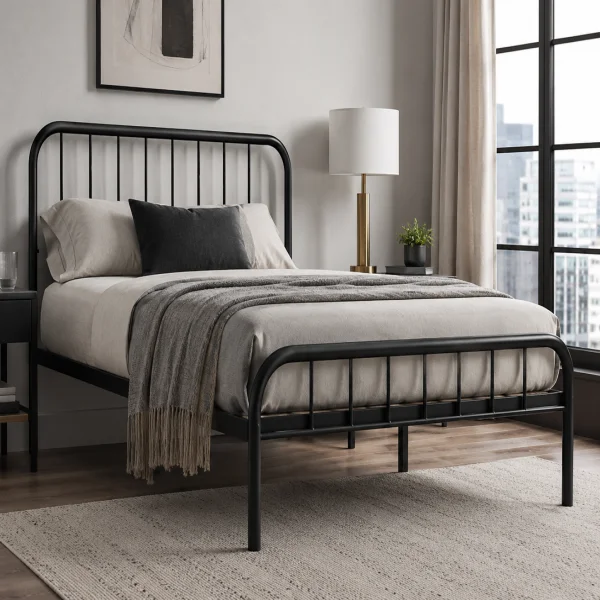

Sofa frame and bed frame fittings
Frame pipe fittings mostly use carbon steel round pipes with an outer diameter of about Ø25–Ø50mm. There are usually 3–5 elbows on a pipe. The problem is: the spacing and angle of each elbow must be accurate, otherwise it will be easy to misalign during assembly.
Our CNC system supports up to 30 bending processes in a single set of programs, and the entire pipe processing process can be saved at one time and recalled with one click. Workers do not need to memorize parameters and sequences repeatedly, reducing misoperations and ensuring batch bending dimensions of the entire pipe are stable and assembly is accurate.
Common Troubleshooting for Furniture Tube Bending
If there is a problem with the bent pipe, first look at this table. Most situations have corresponding solutions.
| Your Problems | Root Causes | Standard Fixes | Prevention by Our Machines |
|---|---|---|---|
| Tube surface indentations | Unpolished dies & excessive bending pressure | Use polished dies, adjust pressure | Standard polished dies with Ra≤0.4μm |
| Oval chair leg cross-section | No mandrel support for thin-wall tubes | Add mandrel, slow bending speed | Standard thin-wall mandrel |
| Wrinkles on inner bend | No wrinkle die, too small bending radius | Add wrinkle die, check minimum CLR | Mandrel + wrinkle die combo |
| Asymmetric left & right legs | Inconsistent manual parameters | Store unified programs | 500 saved programs + closed-loop servo |
| Bending angle deviation | Material springback without compensation | Set springback compensation values | Built-in springback compensation algorithm |
| Uneven dimensions across batches | Human error & parameter drift | Adopt CNC closed-loop equipment | Closed-loop servo, ±0.1mm precision |
| Scratched stainless steel surface | Rough dies & insufficient lubrication | Clean dies, add lubrication, polish dies | Mirror polished dies + lubrication system |
| Collapsed inner corners of square tubes | Round tube dies for square tubes | Special integrated square tube dies | Custom dies matched to tube shapes |

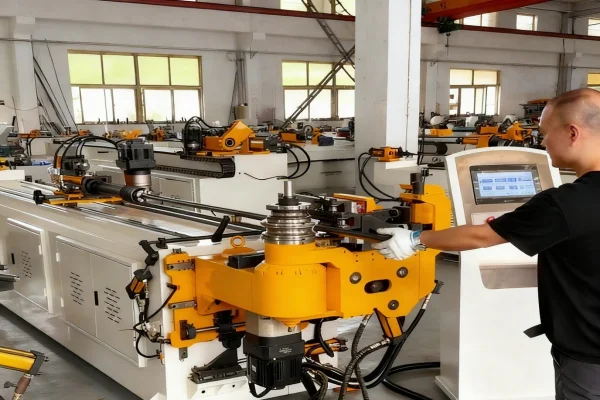

Material processing capabilities
The bending pain points of carbon steel pipes, stainless steel pipes, aluminum pipes, square pipes, and oval furniture pipes are all covered. Zoran CNC pipe bending machine specifically solves the defects of springback, scratches, and deformation, and is suitable for the mass production of various types of metal furniture.
The bending characteristics of different pipes vary greatly, and it is easy to produce scrapped parts if blindly installed on the machine. Carbon steel pipes, stainless steel, aluminum alloys, square pipes, and elliptical pipes commonly used in furniture factories each have unique processing difficulties such as rebound, scratches, and deformation during molding.
We match the corresponding process and mold for each pipe material: built-in springback compensation, standard polishing mold, thin-walled special mandrel, square pipe integrated mold, elliptical orientation fixture, 3-6 axis CNC machine model selection on demand, STEP import 3D simulation to prevent interference, automatic conversion of pipe coordinates, stable mass production of various furniture pipe fittings.
Furniture bending equipment purchase list
Furniture Tube Bender Selection Chart：
| Furniture Type | Typical Tube Diameter | Recommended Model | Daily Output |
|---|---|---|---|
| Office Chair Frames | Φ19–Φ25 | DW38CNC-4A-3S | 800–1200 pcs |
| Dining Chair Frames | Φ22–Φ32 | DW50CNC-3A-1S | 600–1000 pcs |
| Table Legs & Frames | Φ32–Φ50 | DW63NC / DW50NC | 400–800 pcs |
| Armrests | Φ16–Φ25 | DW38CNC-4A-3S | 1000–1500 pcs |
| Display Racks | Φ22–Φ38 | DW50CNC-2A-1S | 500–900 pcs |
Supplementary Text：
This table is only a reference baseline. Custom machine configurations will be tailored based on your bending complexity and budget. When choosing equipment, higher price or more axes do not equal better performance — the ideal machine is the one that fits your products and production line perfectly.
Why do furniture factories want to find us?
What you care about is not just buying equipment, but “whether it can be mass-produced on schedule.” We prefer to cooperate with you on a project basis:
①First make model selection and mold suggestions according to the drawings, and then confirm delivery
②Debug and test run before leaving the factory, and try to leave problems in the factory to solve
③Remote technical support to help you solidify parameters into standard operations
④ If necessary, pipe cutting, chamfering, and end forming can be planned together to reduce on-site wrangling.
Provide information to achieve mass production
The clearer you provide it, the easier it will be for us to make the solution “can be implemented at the factory”, so that you can avoid the embarrassment of buying the wrong equipment.
①Pipe outer diameter OD, wall thickness, material (carbon steel/stainless steel/aluminum, etc.)
②Minimum bending radius (CLR) and number of bends
③Part length (determines the stability of feeding and long materials)
④Appearance requirements (spraying/electroplating/drawing, whether indentation is allowed)
⑤Drawings (PDF/STEP) + production target (per shift/daily)
Testimonial
“In the past, we had to change models several times a day, and each change took a long time. After using the DW38CNC-4A-2S, the changeover time was reduced from 40 minutes to 6 minutes, and new employees can get started quickly. Now the monthly output has increased by 28%, and the efficiency has been significantly improved.”
Polish dining chair manufacturer Anna K.
“Our handrail products have very high surface requirements and must not have scratches or indentations. After using the DW50CNC-3A-1S mirror polishing mold, the products can be sent directly to electroplating after bending. The surface qualification rate has increased from 72% to 97%, saving a lot of manual polishing time.”
UAE Stainless Steel Guardrail Manufacturer Hassan M.

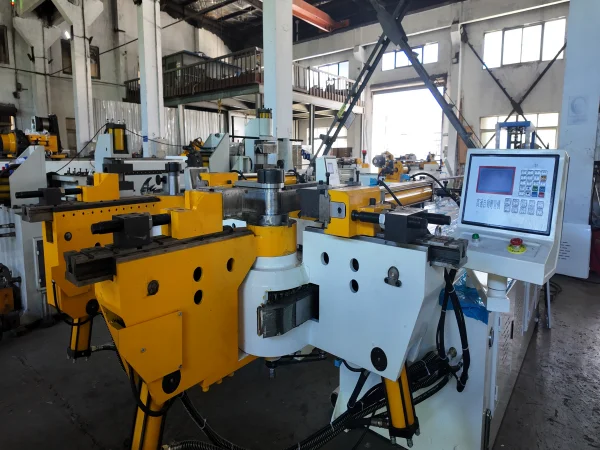

Your furniture pipe bends deserve a more professional solution
A good furniture pipe bending machine can help you solve accuracy problems, but a professional solution can help you solve problems in the entire production process. Zhuoran Machinery’s engineers can provide free process evaluation and complete line solution customization based on your product and production capacity needs.
What kind of furniture are you making? What specific problems did you encounter? Whether the angle of the chair frame bend is inconsistent, the armrest cannot be bent in an S-shape, or the surface of the bend is scratched and cannot be removed – you are welcome to come to us with product drawings or pipe samples for a chat.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
How can the stainless steel handrail elbow be scratch-free?
It comes standard with a mirror-polished mold, precise pressure control, and matching special lubrication. The three-point synchronization can achieve zero scratches in handrail bending without the need for additional accessories.
Can one pipe bending machine handle both round and square pipes?
Yes, the special mold needs to be replaced, and the routine mold change takes 15-30 minutes. For frequent mixed production, a 4-axis double-layer mold is recommended. Two sets of molds are pre-installed, and the program can be switched with one click without stopping the machine.
How long does it take for a newbie to get started with the equipment?
Large-screen graphic touch control allows independent operation within 1-2 days of training; complex programming is completed by engineers, and workers only need to load materials and retrieve programs to start the equipment.
How much pricier is 4-axis dual-layer mold vs 3-axis single-layer mold?
20%-35% more expensive. Multiple exchanges per day can significantly save debugging hours. The price difference is usually paid back in 8-12 months by improving efficiency, and we can help calculate the income for free.
Does the equipment match the mold?
The purchased machine is delivered with a complete set of molds; for subsequent additions of pipe diameters, the molds can be purchased separately without changing the host.
