HVAC Copper Tube Bending Machine for Air Conditioning & Refrigeration | Zhuoran
HVAC Copper Tube Bending Machine Solutions
If you’re a manufacturer of air conditioning or refrigeration equipment, you know this: a bent pipe or a flat elbow can impede refrigerant flow, reduce heat transfer efficiency, and cause the finished coil to need to be reworked. Not only is material cost wasted, but downtime is also increased.
The right HVAC duct bender can solve these problems at the source. Zhouran Machinery combines precision CNC technology with a deep understanding of the performance of thin-walled copper and aluminum tubing, which has helped more than 2,000 HVAC manufacturers produce cleaner elbows, reduce scrap, and scale production without increasing labor. In addition, we also supply refrigeration pipe bending machines to meet all cold chain manufacturing demands.

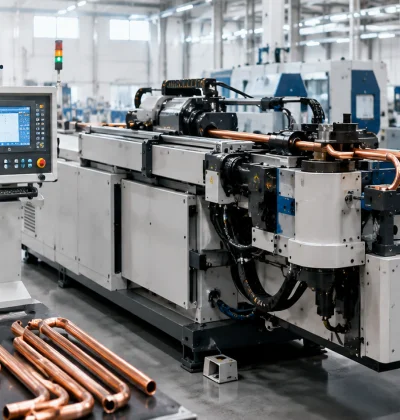

HVAC Copper Tube Bending Machine Features
Our dedicated thin wall tube bending machine is specially optimized for ultra-thin copper tubing under 1mm wall thickness
Improve HVAC system efficiency
Poorly bent tubes will restrict refrigerant flow and reduce heat transfer efficiency. To avoid loss of performance, it is best to use a precision HVAC pipe bending machine to ensure smooth and consistent bends and avoid deformation or flattening of the pipe.
Prevents kinks and wrinkles
Copper and aluminum pipes are prone to kinking, especially when a small bend radius is required. For copper tubes with a radius R ≥ 1.5D, using a copper tube mandrel bender provides internal support to help you achieve a smooth, wrinkle-free bend. Our CNC three- or four-axis machines offer the best combination of flexibility and production speed.
Reduce scrap and production costs
Inconsistent bending can result in damaged pipe, wasted material and extended production time. As a source factory, Zoran can help you choose a reliable bending solution with four-stage quality control and CE certification, which can reduce scrap, improve product consistency, and recover investment faster.

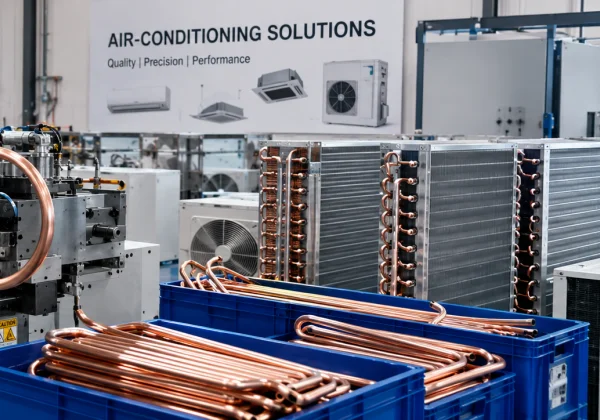

Performance of HVAC Copper Pipe Bending Machine
Here’s a question every HVAC engineer has faced: why do two seemingly identical coil assemblies perform so differently on the test bench?
If your HVAC coils suffer from kinks, tube flattening, or inconsistent bends, refrigerant flow and heat-transfer efficiency may be reduced. These defects can also increase pressure-test failures, material waste, and production costs.
Zhuoran Machinery’s HVAC Copper Tube Bending Machine uses CNC control and mandrel support to protect the inner wall of the copper tube during bending. This helps you produce smooth, round, and wrinkle-free bends, even at tight bending radii.
With stable accuracy, repeatable performance, and factory-direct support, Zhuoran Machinery helps you reduce scrap, improve coil quality, and increase production efficiency. It is a practical solution for air-conditioning coils, refrigeration tubing, and other HVAC copper tube applications.
Why Manual Bending Falls Short in HVAC Production？
Manual tools may work for occasional field repairs, but they are not efficient for high-volume HVAC production.
When your production line produces hundreds of coil assemblies per shift, operator fatigue can lead to inconsistent bending angles and even experienced workers can produce a 5 to 8 percent scrap rate when bending thin-walled copper tubing.
Manual mold changing will also reduce production efficiency. Adjusting the tool to accommodate different pipe diameters can take 15 to 20 minutes, causing unnecessary downtime. Programmable HVAC duct bending machine can achieve repeatability within ±0.1° and complete pipe diameter changes in 60 seconds.
Zhuoran Machinery provides CNC and hydraulic copper pipe bending machine solutions for HVAC copper pipe production. Our thin-wall tube bending machines help you produce precise, wrinkle-free bends while reducing damage to fragile copper tubes. For an air-conditioning factory that produces 500 coil assemblies per day, the Zoran bending machine saves about 15 to 20 hours of production runtime per week.
Coil and Refrigerant Pipe Forming Solutions
For mass production, the bending accuracy of copper tubes will directly affect the refrigerant circulation, heat exchange efficiency and subsequent assembly. Therefore, a stable and reliable air conditioning copper tube bending machine is the core of the production line.

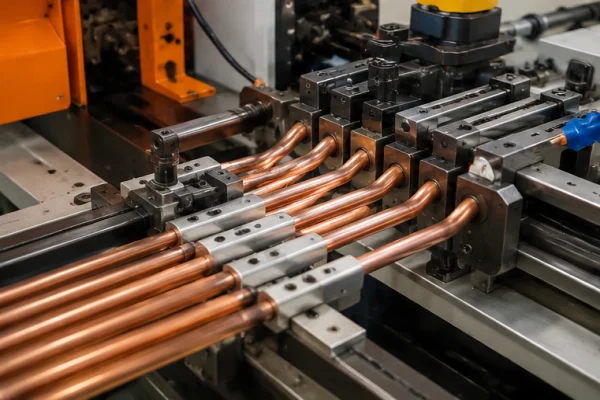

Precision molding solution for condensation coils
When machining condensation coils, you may encounter problems such as wrinkling of U-bends, thinning of tube walls, and inconsistent dimensions. Standard coiled pipe usually contains 20 to 60 hairpin copper pipes. The bending radius is about 1.5 to 2 times the pipe diameter, which requires high equipment accuracy.
Zhuoran Machinery’s copper tube mandrel bending machine adopts mandrel support and hydraulic clamping, which can accurately control feeding, rotation and bending, reduce collapse and wrinkling of copper tubes, make the tube wall thickness and forming size more stable, and reduce material loss.

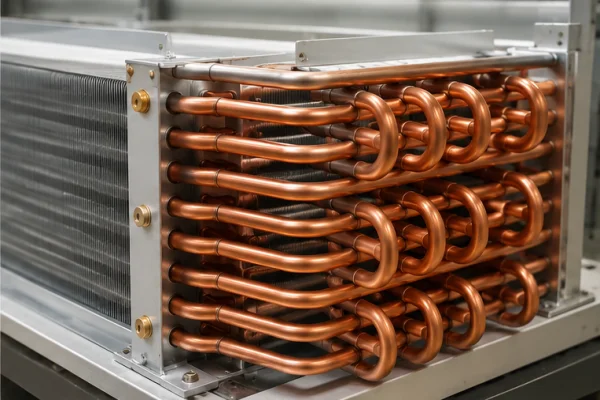

Refrigerant Connection Pipeline Full Processing
When processing refrigerant connecting pipes, you may encounter problems such as inconsistent angles at both ends, twisted pipes, and misalignment of mounting holes. Even a bending deviation of just 2 mm can make rework and on-site installation difficult.
Zhuoran Machinery’s AC copper tube bender finishes double-end bending in a single clamp, removing manual flipping and repositioning. It cuts angular errors and guarantees co-planar tube ends. We also offer two-way, mandrel and hydraulic bending solutions customized to your tube diameter, wall thickness, length and output requirements.
Refrigeration Bend Equipment Application
The cold chain field is one of the most difficult scenarios for pipe bending. The evaporator operating temperature of this type of equipment is as low as -10°C ~ -40°C. The pipes have large thermal stress and are prone to brittleness at the bends. Our full range of refrigeration pipe bending machines can meet the cold chain pipe forming needs of copper and aluminum pipes.
3.1 Ice making machines and refrigeration equipment
The interior of the ice machine evaporator is a continuous wavy serpentine copper tube, which needs to maximize the contact area with the ice. Ordinary single-bending equipment cannot complete this type of processing.
Our refrigeration pipe bending machine supports uninterrupted bidirectional serpentine pipe forming, which can perfectly meet the bending needs of ice machines and special refrigeration equipment, improving production efficiency and product quality.
3.2 Bending of refrigeration aluminum tubes
Aluminum tubes have low cost and light weight, and are widely used in refrigerated display cabinets and vehicle-mounted refrigeration equipment. However, their ductility is only 60% of copper tubes, and the outside of the bend is easily cracked, making it difficult to adapt to ordinary equipment.
Our equipment CNC system has a built-in material compensation database, which can automatically adjust the feeding speed, mandrel feed amount and bending rate according to the material, eliminating the need for you to debug each batch of products based on experience.
3.3Walk-in cold storage and refrigerated display cabinets
The pre-embedded copper pipes in the cold storage wall panels need to be bent at 90° in multiple places, and must avoid door frames and other components. The outer walls of the pipes are prone to wrinkles and collapse, causing holes in the insulation layer, forming thermal bridges, and eventually causing condensation on the equipment.
Zhuoran’s equipment has upgraded the mandrel structure and is suitable for long-distance continuous bending; the four-axis CNC model can complete multi-dimensional continuous bending in a single clamping, automatically rotating, bending, and reverse bending, without you having to manually touch the workpiece during the entire process, which is efficient and precise.

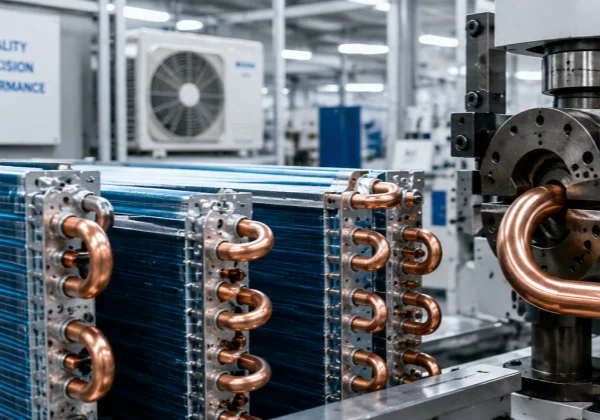

Core Application Scenarios of HVAC Pipe Bending Machines
The air-conditioning pipe bending machine selected must match the workpiece shape, pipe diameter range and daily production capacity. Our complete product line covers all needs: HVAC pipe bending machines, thin-wall pipe bending machines, copper pipe mandrel pipe bending machines.
Central air conditioning and multi-split pipelines
Central air conditioners, chillers, and VRF/VRV systems typically use 22 mm to 50 mm pipe and include multi-plane, multi-radius bends. You need to focus on equipment torque and three-dimensional processing capabilities.
It is recommended to choose a four-axis or five-axis CNC pipe bending machine. The maximum bending torque can reach 80 kN, which can complete the clamping and forming of complex pipelines in one time and reduce repeated positioning errors.
Split air conditioning refrigerant pipeline
If you produce split air conditioners, the focus should be on processing speed and bending accuracy at both ends. Commonly used copper pipes have a diameter of 6.35 mm to 15.88 mm, and the bending position must be accurately aligned with the indoor and outdoor unit installation holes.
Our CNC HVAC pipe bending machine can control the processing cycle of a single set of pipes within 12 seconds, and is suitable for mass production of 2,000 sets per day.
Heat exchanger and condensation coil
When processing heat exchangers and condensation coils, it is recommended to use a thin-walled pipe bender or a copper tube mandrel pipe bender for copper pipes with a wall thickness of 0.6~0.8 mm and a bending radius of 1.5D.
Equipped with a special hairpin bending attachment, it can process 8 to 10 180° U-shaped bends per minute, and control the pipe wall thinning within 10%.
Technical Key Points for Selection of HVAC Pipe Bend Equipment
HVAC Copper Tube Hardness Comparison
| Tube Hardness | Characteristics | Bending Method | Springback |
|---|---|---|---|
| Soft (Annealed) | Best ductility, easy to bend | Mandrel bending / press bending | 1–2° |
| Half-hard | Moderate rigidity, good for coil forming | Mandrel bending preferred | 3–5° |
| Hard (Drawn) | High rigidity, holds shape after forming | CNC mandrel + booster | 5–8° |
Most AC coils use half-hard copper tubing — it stays fixed inside fins while still allowing tight bends. Since springback varies between batches, a quality HVAC tube bender uses real-time angle feedback for auto-compensation. Our flagship CNC mandrel bender comes with built-in hardness-matched parameters.
Comparison of Mandrel Bending vs. Press Bending Processes
In 90% of HVAC processing scenarios (copper and aluminum pipes within 50mm, tight bending radius), the rotary stretch bending process with a mandrel is preferred. HVAC pipe bending machines equipped with this process have the best molding quality and repeatability. Our copper pipe mandrel pipe bending machine is the most commonly used bending equipment by air-conditioning coil manufacturers.
| Process Type | Applications | Advantages | Disadvantages |
|---|---|---|---|
| Rotary Draw Bending (with Mandrel) | Ultra-thin copper tubes and tight bending radii | Produces smooth, wrinkle-free bends | Longer cycle time and higher tooling cost; the core process used in a copper tube mandrel bending machine |
| Press Bending | Thick-wall tubes and large bending radii | Fast processing and simple tooling | Supports only single-plane bending |
| Roll Bending | Large-diameter helical coils | Suitable for very large bending radii | Lower accuracy and greater springback |

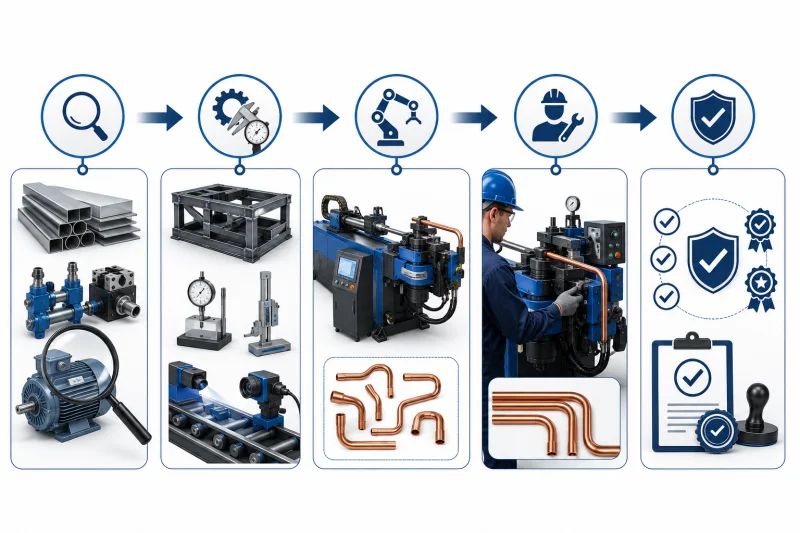

Full Process Quality Control of Copper Pipe Bending Machines
All equipment completes four quality inspection procedures before leaving the factory:
1. Raw material inspection: Incoming material inspection of steel structure parts, hydraulic accessories, and servo motors;
2. Process quality inspection: structural welding accuracy, equipment calibration, line assembly inspection;
3. Assembly and complete machine testing: full-function testing of standard pipe bending, full model trial production of thin-walled pipe bending machines and copper tube mandrel pipe bending machines;
4. Final test before leaving the factory: actual bending test according to the customer’s actual pipe material and size, and the refrigeration pipe bending machine additionally adds cold chain pipeline testing.
5. All Zhuoran equipment has passed CE certification and complies with ISO9001 quality management system standards.
Real Cases of Global HVAC Customers
Southeast Asian air conditioner manufacturer
A medium-sized air conditioning coil factory in Thailand previously used manual pipe bending equipment. The scrap rate of 9.52mm semi-rigid copper pipe refrigerant pipes has been 12% for a long time. The main problems are wrinkles and inconsistent bending angles of the pipes. In April 2025, a Zoran four-axis CNC machine was purchased.
The scrap rate dropped to 2.3% within two months, and the equipment’s repeatable angle accuracy eliminated operator bias. The equipment purchase cost can be recouped within 8 months just from the savings in raw material losses. Today, the factory operates in two shifts, equipped with three Zoran four-axis machines, plus a dedicated thin-wall pipe bending machine to process ultra-thin coiled pipes.
Middle East Refrigeration Equipment OEM
Dubai’s commercial refrigeration equipment manufacturer has a manual production line for evaporator coils for refrigerated display cabinets with a maximum production capacity of 120 sets per shift. The difficulty of recruiting skilled bending technicians continues to increase.
The two manual workstations were replaced by a single Zoran four-axis CNC equipment equipped with multiple sets of tooling. This equipment can automatically switch the processing procedures of copper and aluminum pipes without manual debugging. The production capacity per shift has been increased to 280 sets, doubling the production capacity without adding new operators. The workers are only responsible for loading and unloading materials, and the bending process runs fully automatically.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
How Can You Prevent Copper Tubes from Kinking?
Use the correct bending die, mandrel, clamping pressure, and bending speed. For tight bending radii such as 1.5D, we recommend a copper tube mandrel bending machine.
What Tube Sizes Can a Copper Bender HVAC Machine Process?
Zhuoran copper tube bending machines commonly process tubes from 6 mm to 50 mm in diameter. The actual capacity depends on the tube material, wall thickness, bending radius, and machine model.
What Is the Difference Between CNC and Hydraulic Bending Machines?
A CNC copper tube bending machine automatically controls feeding, rotation, and bending angles. It is ideal for complex parts and high-volume production. A hydraulic pipe bending machine is suitable for simpler products that require stable bending force and a lower initial investment.
Can Zhuoran Test My Copper Tubes Before Purchase?
Yes. Zhuoran Machinery supports sample bending using your actual copper tubes. You can inspect the bending angle, wall thinning, ovality, and surface quality before purchasing the machine.
Why Choose Zhuoran Machinery for HVAC Copper Tube Bending?
Zhuoran Machinery provides CNC, hydraulic, thin-wall, mandrel, and refrigeration pipe bending machines. Every copper bender HVAC solution undergoes assembly inspection, functional testing, sample bending, and final quality inspection before delivery.
