Metal Pipe Cutting Machine — MC315 Series
- Cut 100mm round tube, 90mm square — 25% more capacity than the MC275
- Three drive options: manual (A), pneumatic (B), or hydraulic (Y). No other manufacturer gives you this choice at this price
- 800+ clean, burr-free cuts per day on the B and Y models. No angle grinder. No deburring. No excuses.
MC315 Series — Which Model Should You Choose?

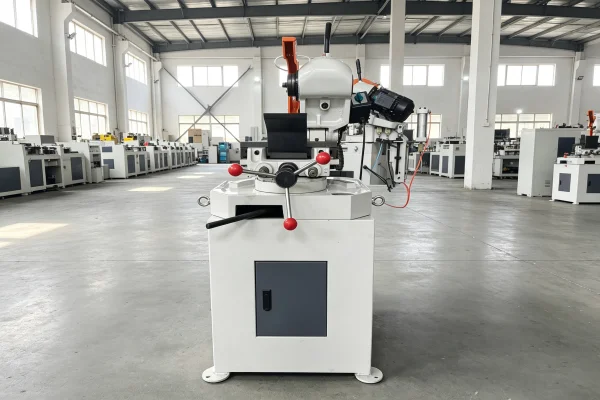

MC315A — Manual Pipe Cutter (Reliable & Cost-Effective)
A fully mechanical tube cutting machine. Manual feeding, manual clamping, and manual cutting. The worm gear drive provides smooth and stable operation with fewer components to fail.
Choose MC315A if you:
- Cut 80–200 tubes/day
- Mainly process thin-wall tubes (0.8–2mm)
- Need a low-cost, reliable machine
- Prefer simple mechanical structure with minimal maintenance
- Have unstable power or want to avoid electronic systems
Best for: Small workshops, general tube cutting jobs, budget-focused buyers.

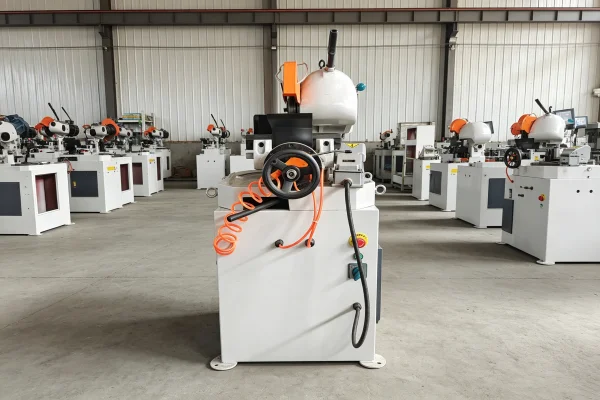

MC315B — Pneumatic Semi-Automatic Cutter (Higher Efficiency)
An upgraded version of the MC315A with pneumatic clamping and feeding. The operator only loads the tube and presses the pedal, while the machine handles the cutting process.
Choose MC315B if you:
- Cut 200–500 tubes/day
- Need faster production and lower labor effort
- Process stainless steel, carbon steel, aluminum, copper tubes
- Want one operator to handle multiple tasks
- Have a standard air compressor system
Best for: Small to medium production lines requiring better efficiency.
MC315Y — Hydraulic Heavy-Duty Cutter (Maximum Strength)
A heavy-duty version using hydraulic clamping and feeding. Hydraulic power provides stronger holding force and smoother feeding, especially for demanding materials.
Choose MC315Y if you:
- Cut 500–800+ tubes/day
- Process thick-wall tubes (3mm+) or solid bars
- Run continuous production for 8–10 hours/day
- Need maximum stability and durability
- Have experienced problems with pneumatic systems under heavy loads
Best for: Industrial production, heavy materials, and high-volume cutting.
MC315A, MC315B & MC315Y Metal Pipe Cutters Comparison
Important Note: The MC315A can cut larger solid rebars than the automatic model. MC315A: Maximum solid rebar diameter 55 mm, while MC315B/MC315Y: Maximum solid rebar diameter 30 mm. The reason is simple: the manual design offers more cutting space. The automatic model requires additional space to accommodate a pneumatic or hydraulic system. If you primarily cut solid rebars and don’t require high-speed cutting, choose the MC315A. It’s more affordable and has greater cutting power.
| Feature | MC315A (Manual) | MC315B (Pneumatic) | MC315Y (Hydraulic) |
|---|---|---|---|
| Clamp / Feed | Manual / Manual | Auto (air) / Auto (air) | Auto (oil) / Auto (oil) |
| Round Tube 90° | ○Φ100mm / 3.94″ | ○Φ100mm / 3.94″ | ○Φ100mm / 3.94″ |
| Square Tube 90° | □90×90mm / 3.54″ | □90×90mm / 3.54″ | □90×90mm / 3.54″ |
| Solid Round 90° | ●Φ55mm / 2.17″ | ●Φ30mm / 1.18″ | ●Φ30mm / 1.18″ |
| Solid Square 90° | ■50×50mm / 1.97″ | ■30×30mm / 1.18″ | ■30×30mm / 1.18″ |
| Round Tube 45° | ○Φ80mm / 3.15″ | ○Φ90mm / 3.54″ | ○Φ90mm / 3.54″ |
| Square Tube 45° | □80×80mm / 3.15″ | □80×80mm / 3.15″ | □80×80mm / 3.15″ |
| Weight | 300kg / 661 lbs | 300kg / 661 lbs | 330kg / 728 lbs |
| Machine Size | 600×800×1600mm | 650×900×1500mm | 650×1450×1600mm |
| Price Range (FOB) | 900−1,500 | 1,200−2,200 | 1,500−2,500 |
| Best For | Budget / Small batch | Medium-high volume | Heavy-duty / Continuous |
MC315 Metal Pipe Cutting Machine — Designed for Real Workshop Needs
Large Cutting Capacity for More Applications
The MC315 handles round tubes up to Φ100mm and square tubes up to 90×90mm, covering most daily cutting jobs in small and medium factories.
Whether you cut exhaust pipes, handrail tubes, machine frames, or construction profiles, one machine can handle multiple applications.
Stronger Motor, More Stable Cutting
With a 2.4/3KW dual-speed motor, the MC315 provides more cutting power for stainless steel and thicker materials.
Choose low speed for stainless steel and heavy-wall tubes, or high speed for aluminum and thin-wall tubes.
Accurate Angle Cutting
The cutting head supports ±45° angle adjustment with an engraved scale, making repeated angle cuts faster and more accurate for welding projects.
Large Cutting Capacity for More Applications
The automatic coolant system keeps the blade running in a constant cooling environment, reducing heat damage and extending blade life.
Standard HSS blades are easy to replace without relying on special suppliers.
Heavy-Duty Structure for Daily Production
The 300–330kg machine body provides better stability and vibration control during cutting.
For continuous production, this means more consistent cuts and less maintenance over time.
MC315 is built for you when you need higher cutting capacity, better stability, and reliable daily performance — without the high investment of a CNC machine.
Pneumatic vs Hydraulic: Choosing the Right Metal Pipe Cutting Machine Drive
When you’re faced with both Type B and Type Y cutting heads, each with the same cutting head and cutting capacity, which one would you choose?
MC315B — Faster and More Economical
The MC315B uses a pneumatic system with air cylinders for automatic clamping and cutting.
If your workshop already has an air compressor, it is easy to install and operate. The system is fast, simple, and affordable.
Choose MC315B if you:
- Mainly cut thin-wall tubes (0.8–2mm)
- Need faster production
- Want lower investment and easy maintenance
Our advice: For most tube cutting jobs, the MC315B provides the best balance between speed and cost.
MC315Y — Stronger for Heavy-Duty Cutting
The MC315Y uses a hydraulic system, providing stronger clamping force and smoother feeding.
Unlike air, hydraulic oil does not compress, so the material stays more stable during heavy cutting. This helps reduce vibration and improves cut quality.
Choose MC315Y if you:
- Cut thick-wall tubes or solid materials
- Run the machine for long shifts (8+ hours)
- Need maximum stability and consistent results
Our advice: If you work with heavy steel or continuous production, the MC315Y is worth the extra investment.
MC315 Applications — Built for Multiple Tube Cutting Industries
From exhaust pipes to structural steel, the MC315 gives you one reliable cutting solution for different tube applications.
Automotive Exhaust Systems
If you cut stainless exhaust pipes, the MC315 is a great fit.
It handles common exhaust tube sizes with clean, square cuts, reducing grinding work before welding. For higher production, the MC315B and MC315Y can run continuously with stable cutting performance.
Construction & Structural Tubes
For handrails, gates, scaffolding, and structural frames, materials are usually larger and thicker.
The MC315Y hydraulic model provides stronger clamping force, keeping the tube stable and improving cut quality on heavy materials.
Motorcycle & Bicycle Frames
For small-diameter, thin-wall tubes, precision and control matter more than cutting force.
The MC315A gives operators better control during manual feeding, making it suitable for custom frame production and small batches.
Air Conditioning & Refrigeration
Copper tubes require careful handling to avoid deformation.
The MC315’s adjustable clamping pressure helps maintain round, clean cuts, making the tubes ready for brazing and assembly.
Fitness Equipment
Fitness equipment frames often require repeated tube cutting and angle cuts.
With ±45° angle adjustment and accurate positioning, the MC315 helps you produce consistent parts, making welding and assembly easier.
Get Your Custom Machine Quotation Now
Tell us what you’re cutting. Material (stainless, carbon, aluminum?). Tube diameter. Wall thickness. How many pieces per day. That’s all we need to recommend the right model.
Can MC315 cut solid steel bars?
Yes.The MC315A cuts solid round bars up to Φ55mm, while the B and Y models handle up to Φ30mm.
If solid bar is your main material, the MC315A is usually the better choice because the manual structure provides a larger cutting opening.
Should you upgrade from MC275 to MC315?
If your jobs require larger tube capacity and higher production, the MC315 is the natural upgrade.
Choose MC315 for around 200–800 cuts/day.
Choose a CNC model only when you need 1,000+ cuts/day with frequent size changes.
How long does the blade last?
A quality HSS blade can typically last:
- 3,000–4,000 cuts on normal thin-wall tubes
- Around 4–6 weeks on heavy materials
Blade life depends on material, cutting speed, and coolant usage.
Can MC315 cut stainless steel?
Yes. Stainless exhaust pipe is one of its common applications.Use lower speed and proper coolant for better blade life and cleaner cuts.
What air compressor does MC315B need?
A standard workshop compressor is enough.Recommended:
- Air pressure: 6–8 kg/cm²
- Air flow: 120L/min or above
- About 2HP compressor
