Tube Bending Engineering Design Service
Zhuoran Machinery provides custom tube bending machine design, tooling engineering, 3D simulation, process programming, automated production line design, and OEM/ODM support.
Custom Machines, Tooling, Processes, and Automated Production Lines
Our tube bending engineering design service covers complete machine customization, tooling design, process programming, fixtures, simulation, and automated production-line development. Whether you are producing a simple U-bend or a complex three-dimensional tube assembly, our engineers can develop a solution based on your tube, product drawing, production target, and quality requirements.
- 20+ mechanical, electrical, and process engineers
- 15 years of tube-processing equipment experience
- Custom machine and tooling design
- 3D modeling and bending simulation
- Automated production-line development
- OEM and ODM support
Custom Engineering for Your Tube Bending Project
Choosing a standard machine without evaluating the actual workpiece may result in insufficient bending capacity, unsuitable tooling, low production efficiency, or unstable product quality.
Zhuoran Machinery’s tube bending engineering design service begins with your tube material, cross-sectional shape, wall thickness, bending radius, number of bends, three-dimensional geometry, and daily production volume.
Our engineers review the complete production process before recommending a machine. This helps you avoid unnecessary functions while ensuring that the selected equipment can meet your current and future production requirements.
What Our Engineering Team Designs and Builds for You
If you send your tube drawings to a supplier and they only recommend standard machines without checking your parts carefully, you will likely run into production issues later. Our engineers first analyze your actual tube drawings instead of just picking generic machines from catalogs.
1.Custom Machine Configuration
When standard axis counts, bending capacities, or machine structures don’t match your product, we configure from the ground up. We’ve developed 2-axis through 6-axis configurations, left-hand and right-hand bending, push bending and rotary draw bending, single-head and double-head machines, heavy-duty hydraulic systems for thick-wall structural tube, and robotic production cell integration.
The decisions we make are based on your part geometry, required cycle time, operator arrangement, factory floor space, and investment plan — not on what’s easiest to manufacture.

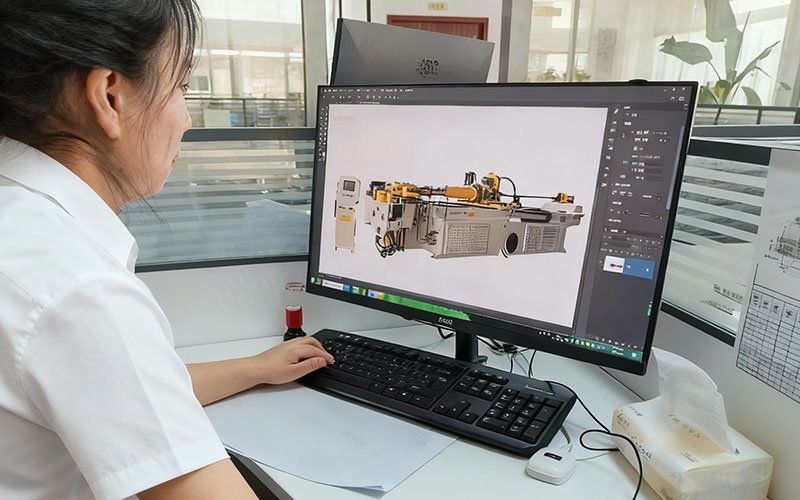

2.Tooling Design
The right machine with the wrong tooling produces bad parts. Tooling directly determines your tube’s surface quality, dimensional accuracy, ovality, wall thinning, and wrinkle behavior at the bend.
We design complete tooling sets — bend dies, clamp dies, pressure dies, mandrels, mandrel balls, wiper dies, collets, and support fixtures — matched to your tube’s actual cross-section, wall thickness, material, and minimum bend radius. For stainless steel, polished aluminum, and coated tube profiles, we select contact surface materials and finishes that protect the tube surface through the bending cycle.

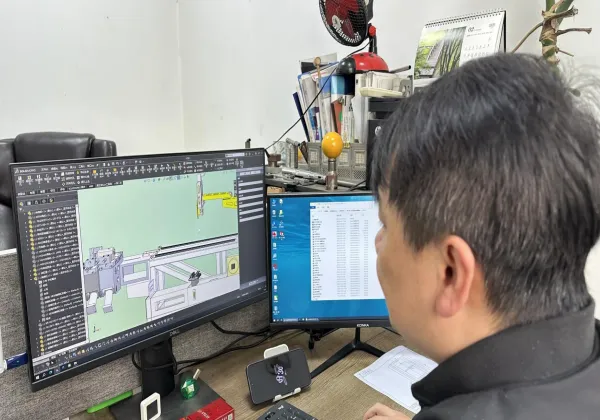

3.Process Engineering & 3D Simulation
Before we manufacture anything, your part goes through simulation. We model the complete bending sequence in 3D — checking for interference between the tube and machine body, identifying where the outer wall thins, evaluating ovality risk on thin-wall profiles, and confirming that the springback compensation approach will hold your required angle tolerance.
For multi-bend and three-dimensional parts, this stage prevents the tooling adjustments and re-engineering that happen when problems are discovered after the machine is built. Complex parts are validated in simulation before production starts — not discovered on the shop floor after delivery.

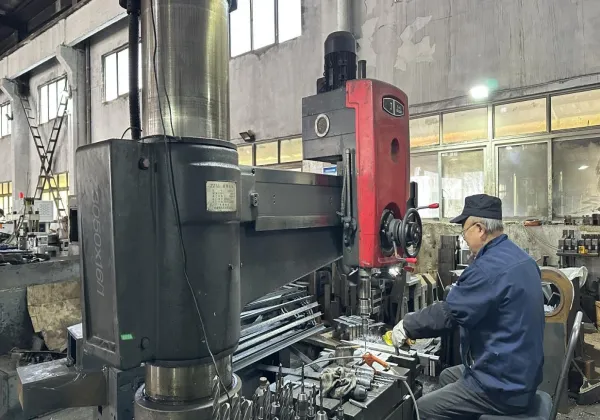

4.Automated Production Line Integration
A standalone bending machine has a throughput ceiling. When your volume or cycle time requirement exceeds what a single machine can deliver with manual handling, we design the complete line.
We integrate tube loading, cutting, bending, end forming, punching, drilling, marking, welding, robotic transfer, dimensional inspection, and finished-part unloading into a single production system. The line is designed around your target cycle time, part variety, available floor space, and labor plan — not assembled from standard modules that happen to fit together.

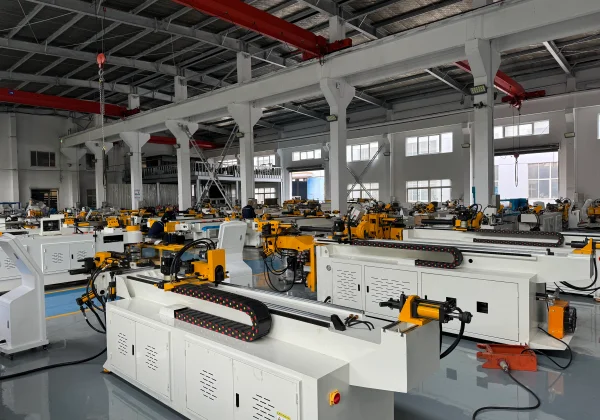

5.Fixture and Workholding Design
If your tubes shift during loading, moving, welding or inspection, you will lose consistent bending accuracy.
We design custom tube loading jigs, auto positioning fixtures, welding holders, assembly clamps, inspection gauges and robot grippers for you.
These custom fixtures perfectly solve your trouble if you need symmetric left/right workpieces, tight assembly tolerances or automatic part transfer between stations.
6.OEM / ODM Machine Development
For machinery distributors, industrial equipment brands, and system integrators who need a machine developed under their brand, we provide complete OEM and ODM support.
This includes custom machine configuration, brand nameplates and color schemes, control panel branding, local-language interfaces, distributor documentation packages, and customer-specific model designations. Requirements are confirmed during the technical evaluation stage — before engineering begins.
Customized Pipe Bending Solution Process
Many customers complain custom machines do not match the plan agreed during quotation. Our standardized development process avoids this problem. We check and confirm details with you before every production step.
Requirement review
You provide: product drawing, tube OD/wall/material,bend radii, production volume, floor space, power supply,automation preference, operator arrangement.
We confirm: technical feasibility, machine structure options,tooling approach, and any missing information before engineering begins.
Concept design & proposal
We compare machine structures, axis configurations,tooling options, loading methods, and automation levels.
You receive a preliminary technical solution for review and comment before 3D modeling starts.
3d modeling & simulation
You provide: product drawing, tube OD/wall/material,
bend radii, production volume, floor space, power supply,automation preference, operator arrangement.
We confirm: technical feasibility, machine structure options,tooling approach, and any missing information before engineering begins.
Manufacturing

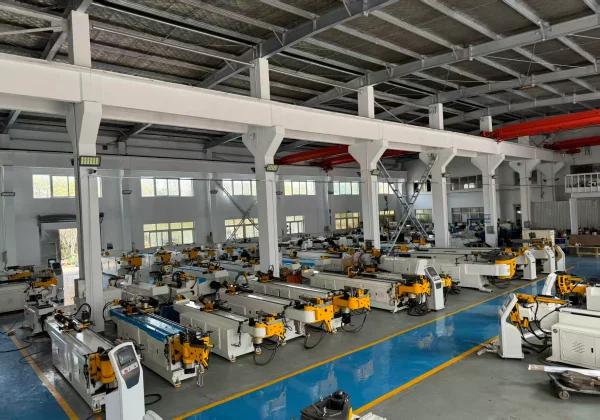

All machines and custom bending tooling are fully produced inside our factory in Zhangjiagang.
We will send you regular production progress photos and videos at every pre-agreed key milestone, so you can clearly track manufacturing status anytime.
Sample bending & validation
We bend your actual tube material to your product drawing before the machine ships. Bend angle, surface quality, dimensional accuracy, and cycle time are verified.
You can witness this stage remotely or in person.
Parameters are adjusted until your quality requirements are met — before the machine leaves our factory.
Delivery & commissioning support
①Complete technical documentation package delivered with the machine.
②Remote commissioning support provided at installation.
③On-site support available for complex automated lines.
Engineering Cases
Engineering Projects We’ve Delivered — What the Problems Were and How We Solved Them
6-Axis Automated Bending Cell, Automotive Exhaust Supplier, Germany
A German automotive exhaust pipe supplier needed to produce a stainless steel tube assembly with 7 bends in three spatial planes — a geometry that required rotation between every bend group and had a collision risk between the tube tail and the bending head on the fourth bend. Their previous supplier had quoted a 4-axis machine that couldn’t execute the full program without manual repositioning.
Zhuoran’s engineering team modeled the complete 7-bend sequence in 3D simulation, identified the collision point at bend 4, and redesigned the bending head clearance geometry to eliminate it. A 6-axis CNC machine was configured with automatic mandrel retraction sequencing. Sample bending confirmed zero interference and ±0.3° angle repeatability before shipment. The customer’s welding rejection rate on this assembly dropped by 71% in the first production quarter.
Integrated Bending Forming Production Line of a US HVAC Manufacturer
A US HVAC component manufacturer was running tube cutting, bending, and end forming as three separate manual operations — with WIP inventory stacking between each station and three operators managing the flow. Their target was to reduce headcount and eliminate the WIP buffer while increasing daily output by 40%.
Zhuoran’s engineering team designed a fully integrated line — automatic tube loading, servo-driven cutting to length, CNC bending with automatic mandrel control, and a four-station end forming unit — connected by servo-driven transfer conveyors.
The complete line runs with one operator monitoring. Daily output increased by 55%, WIP inventory between stations was eliminated, and the customer recovered the line investment cost within 14 months.

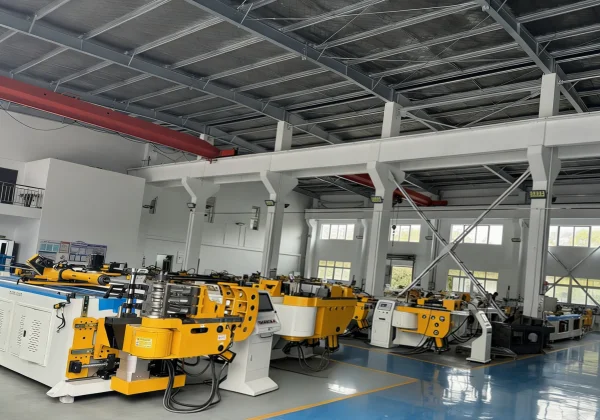

OEM / ODM Support
If you’re bringing a tube bending machine to market under your own brand, or integrating bending capability into a system you supply to end customers, Zhuoran’s OEM and ODM service covers the engineering and configuration requirements that standard machine purchases don’t address.
What We Provide for OEM/ODM Partners:
| Requirement | What Zhuoran Delivers |
|---|---|
| Custom machine configuration | Axis count, capacity, and structure specified to your product requirement |
| Brand identity | Nameplates, color schemes, control panel branding, logo placement |
| Local-language interface | Control system interface in your market language |
| Distributor documentation | Operation manuals, maintenance guides, and spare parts lists in your required language and format |
| Custom model designation | Machine identified by your model number in all documentation |
| Technical data customization | Specifications formatted to your market’s standards and requirements |
| Single-unit evaluation orders | Available for distributor qualification — contact us for terms |
Who This Is For:
✦ Machinery distributors adding tube bending to their product portfolio without in-house machine development capability
✦ Industrial equipment brands who need a bending machine built to their specification and sold under their name
✦ System integrators incorporating bending capability into a larger production system they supply to end customers
✦ Regional agents who need localized documentation and support infrastructure for their marketOEM and ODM requirements — including branding specifications, documentation language, and support protocol — are confirmed during the technical evaluation stage before engineering begins. Contact us to discuss your specific requirements.
Start Your Custom Tube Bending Project
Send Zhuoran Machinery your product drawing, tube specifications, production target, and automation requirements.
Our engineers will review the workpiece, evaluate the process, and recommend a suitable machine, tooling, fixture, and production configuration.
What information is needed for a custom design?
Please provide the pipe material, diameter or profile dimensions, wall thickness, bending radius, product drawings, number of bends, daily output, and quality requirements. For parts with complex spatial structures, 3D drawings are recommended.
Can I import my CAD files?
Yes. Our engineering team can review common 2D and 3D file formats, including STEP and IGES files.
Do you provide pipe bending simulation?
Yes. For suitable projects, our engineers will perform bending path simulation, interference checks, deformation analysis, and process evaluation.
Can you design a complete automated production line?
Yes. Zhuoran can integrate processes such as feeding, cutting, bending, end forming, punching, inspection, robotic handling, and unloading.
Can I test the process flow before placing an order?
Yes. Before finalizing the machine configuration, we can arrange sample bending and process verification using the pipes and drawings you provide.
