Pipe Chamfering Machine for 8-180 mm Tube and Pipe
Choose a single-head pipe chamfering machine that matches your tube diameter, wall thickness and material. The range includes three pneumatic models and one hydraulic model for metal tube, pipe and selected solid-bar work.
Series range
– Tube OD: 8-180 mm across four models
– Wall thickness: 0.3-10 mm, depending on model
– Drive options: pneumatic or hydraulic
– Workpieces: tube, pipe and selected bar profiles
Tube Processing Equipment Manufacturer | Application-Based Tooling | Factory Inspection | Global Export Support
Send your tube OD, wall thickness, material, minimum length and required end profile. Our engineer will check the model and tooling before quotation.
Select the Machine Around Your Workpiece
A machine that covers the tube diameter can still be the wrong choice if the wall, material or part length falls outside its working range. Start with the largest OD and wall thickness in your current production plan. Then check the drive type, minimum workpiece length, motor power and available floor space.
Choose a pneumatic pipe chamfering machine from the DJ60NC, DJ80NC or DJ120NC range when your workpiece fits the stated diameter and wall limits. The DJ180NC uses a hydraulic system and covers the largest diameter and wall range in this series.
Model Comparison：
| Specification | DJ60NC | DJ80NC | DJ120NC | DJ180NC |
|---|---|---|---|---|
| Machine type | Single-head pneumatic | Single-head pneumatic | Single-head pneumatic | Single-head hydraulic |
| Tube OD range | 10–60 mm | 8–80 mm | 10–120 mm | 30–180 mm |
| Wall thickness | 0.3–3.0 mm | 0.3–4.0 mm | 0.5–8.0 mm | 0.5–10.0 mm |
| Solid-bar diameter | 5–30 mm | 5–30 mm | Ask for confirmation | Ask for confirmation |
| Workpiece length | Source states no limit* | Source states no limit* | 60 mm or longer | 60 mm or longer |
| Main motor power | 0.75 kW | 1.5 kW | 2.2 kW | 4 kW |
| Approx. cycle time | 3.5 sec/end | 3.5 sec/end | Confirm by workpiece | Confirm by workpiece |
| Machine weight | 180 kg | 220 kg | 300 kg | 350 kg |
| Machine size | 500 × 700 × 600 mm | 800 × 850 × 900 mm | 800 × 1050 × 1100 mm | 1050 × 1300 × 1500 mm |
Notes:Long workpieces require suitable external support and safe material handling. Confirm the final machine layout before ordering.
Specification note: Cycle time and machining performance depend on material type, wall thickness, end geometry, tooling selection, and production requirements. Zhuoran confirms the final machine configuration based on the customer’s workpiece specifications.

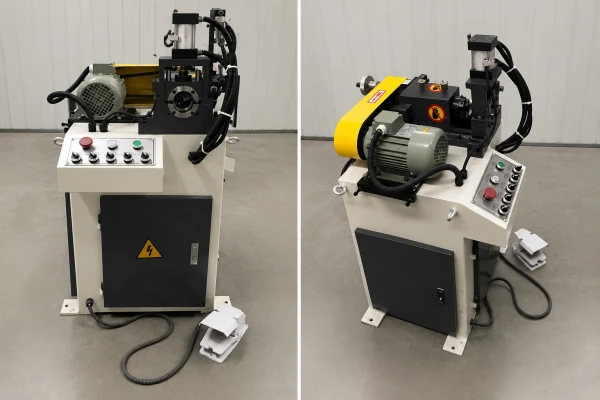

DJ60NC Compact Pneumatic Chamfering Machine
The DJ60NC covers tube diameters from 10 to 60 mm and walls from 0.3 to 3.0 mm. Its 0.75 kW motor and 500 x 700 mm machine footprint suit production areas where space and power demand need close control.
The source specification lists a changeover-focused feeding design, a custom alloy cutter and two-stage feed. The fast stage handles approach travel, while the slower stage gives the operator more control during cutting.
**Best fit based on the supplied specification**
– Tube OD from 10 to 60 mm
– Wall thickness up to 3.0 mm
– Solid bar from 5 to 30 mm
– Production that needs a compact machine and frequent size changes

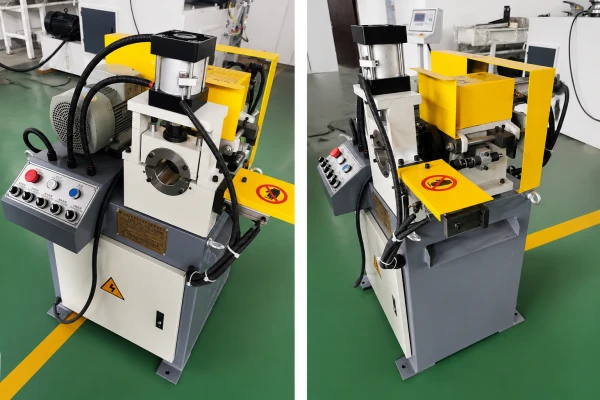

DJ80NC Pneumatic Chamfering Machine
The DJ80NC extends the tube range to 8-80 mm and the wall range to 0.3-4.0 mm. Its 1.5 kW motor gives buyers more diameter capacity while keeping the pneumatic single-head format.
The machine uses the same changeover-focused feed concept and two-stage feed described in the DJ60NC source file. Choose this model when your current parts exceed the DJ60NC range or when you want extra diameter capacity for future orders.
**Best fit based on the supplied specification**
– Tube OD from 8 to 80 mm
– Wall thickness up to 4.0 mm
– Solid bar from 5 to 30 mm
– Mixed-size production that still fits a pneumatic machine

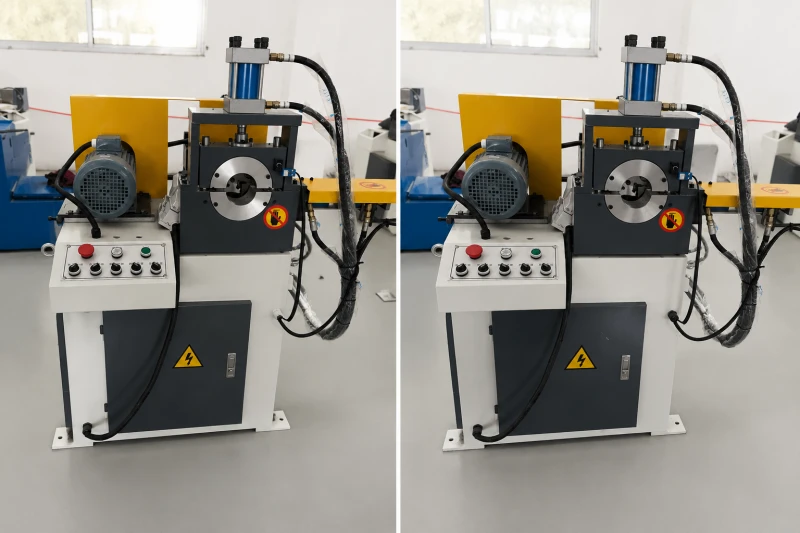

DJ120NC Pneumatic Tube End Chamfering Machine
The DJ120NC covers tube diameters from 10 to 120 mm and walls from 0.5 to 8.0 mm. The supplied document describes manual loading, automatic clamping and automatic cutter advance and return.
Its clamp and cutter-head design can machine the inner edge, outer edge and end face in one setup. The machine also uses pulley speed changes for different metal materials. Zhuoran checks the cutter setup and speed against your tube before production approval.
**Best fit based on the supplied specification**
– Tube OD from 10 to 120 mm
– Wall thickness up to 8.0 mm
– Workpieces 60 mm or longer
– Buyers who need more wall capacity without moving to the DJ180NC size

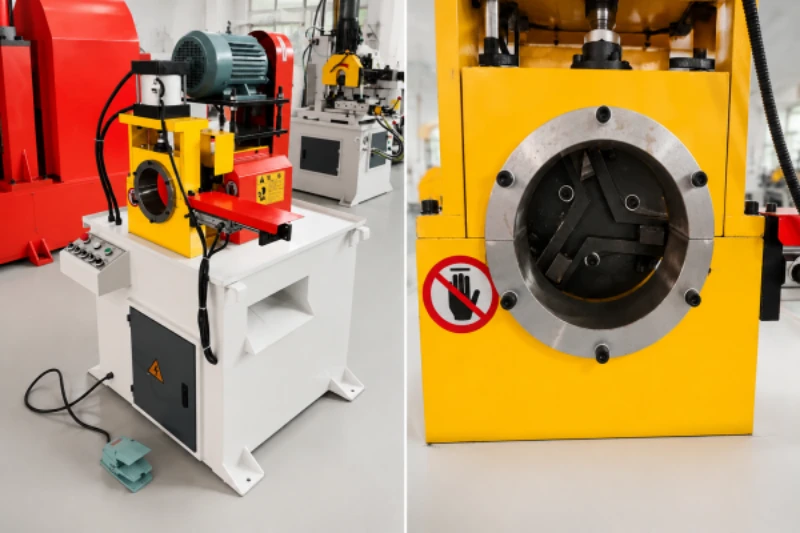

DJ180NC Hydraulic Pipe Chamfering Machine
The DJ180NC covers tube diameters from 30 to 180 mm and walls from 0.5 to 10.0 mm. It is the only hydraulic model in this four-machine range and uses a 4 kW main motor plus a 1.5 kW oil-pump motor.
The supplied specification states that its clamp and cutter-head design can process the inner edge, outer edge and end face in one setup. Select this model for parts that exceed the DJ120NC diameter or wall limit. Send the largest and smallest workpiece in the project so the engineer can check the clamping and cutter range.
**Best fit based on the supplied specification**
– Tube OD from 30 to 180 mm
– Wall thickness up to 10.0 mm
– Workpieces 60 mm or longer
– Large-diameter or heavier-wall tube within the stated range

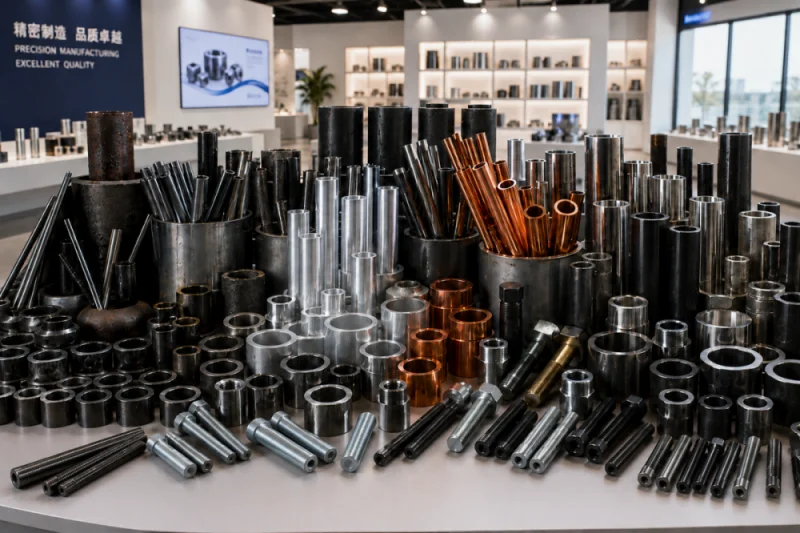

One Setup for the End Features Your Part Requires
Tube-end requirements vary by the next operation. Some parts need burr removal before handling. Others need an inner chamfer, outer chamfer or a flat end face before welding, insertion or assembly.
Tube-end requirements vary by the next operation. Some parts need burr removal before handling. Others need an inner chamfer, outer chamfer or a flat end face before welding, insertion or assembly.
Send these details for a tooling check：
1. Tube outside diameter and wall thickness
2. Material and profile shape
3. Required inner chamfer, outer chamfer and facing dimensions
4. Minimum and maximum part length
5. Parts per shift and current upstream process
6. Available voltage, frequency and compressed-air supply
Buyer Problems This Series Addresses
Model selection based on more than diameter
The comparison table places diameter, wall thickness, power and footprint in one view. Your engineer can remove unsuitable models before discussing price..
Repeated manual edge finishing
A dedicated cutter and clamping setup gives your operator a defined machining cycle. The DJ120NC and DJ180NC can combine inner-edge, outer-edge and end-face work in one setup, subject to the approved tool configuration.
Mixed materials and changing part sizes
The supplied documents list steel, stainless steel, aluminum, copper and selected non-metallic materials. Each material needs the correct cutter and process settings. Send a drawing or sample before the final tooling recommendation.
Unclear quotation scope
Zhuoran bases the quotation on the workpiece and requested end geometry. This process separates the base machine from the clamps, cutter head, inserts, material support and other project-specific items.

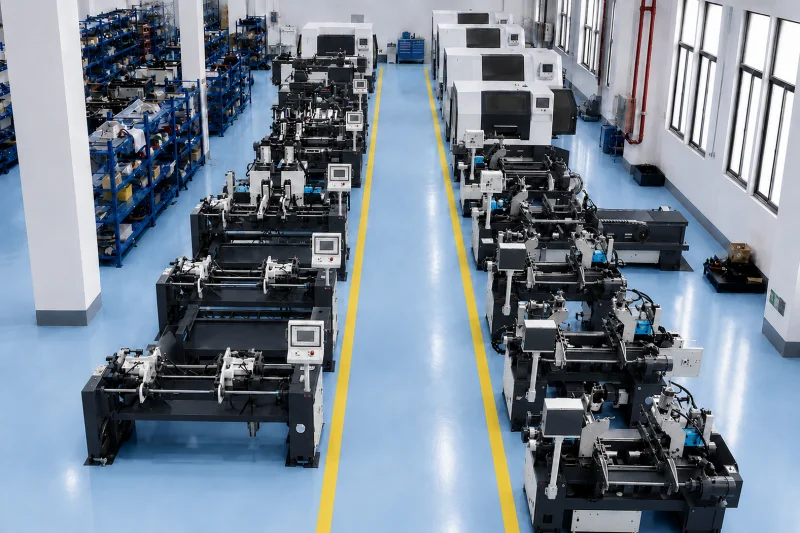

Typical Production Applications
Metal tube chamfering machine fits between cutting and the next welding, insertion, forming or assembly step. Zhuoran supplies tube-processing equipment for automotive components, furniture, fitness equipment, HVAC systems, construction machinery and other metal-tube applications.
Application fit depends on the workpiece, not the industry label. Send the part drawing and annual or shift volume for an engineering check.

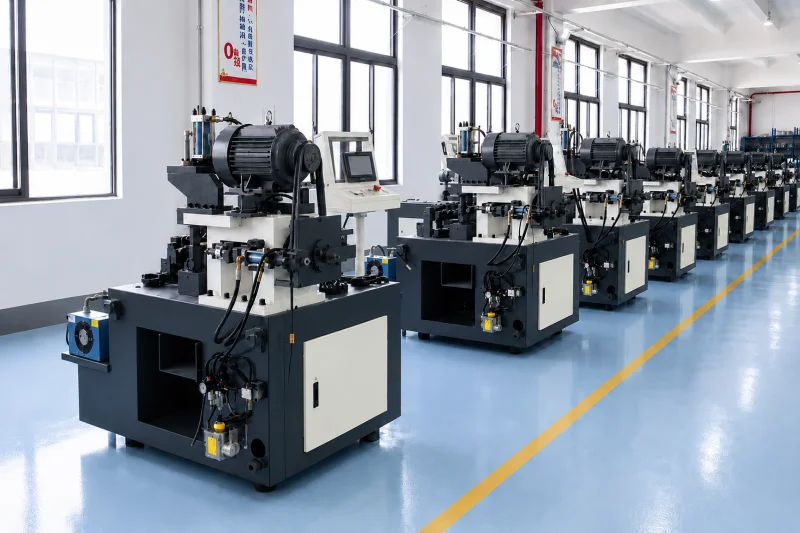

Pneumatic or Hydraulic: Use the Verified Model Range
Choose between the four models using the published working ranges:
– DJ60NC: 10-60 mm OD and up to 3.0 mm wall
– DJ80NC: 8-80 mm OD and up to 4.0 mm wall
– DJ120NC: 10-120 mm OD and up to 8.0 mm wall
– DJ180NC: 30-180 mm OD and up to 10.0 mm wall
The DJ180NC hydraulic model covers the largest parts in this series. Pneumatic models cover the three smaller ranges. Material hardness, end geometry and output target can change the final recommendation, so diameter alone should not decide the purchase.
Why Work With Zhuoran
Zhangjiagang Zhuoran Machinery manufactures equipment for tube bending, cutting, end forming, rolling, sealing and chamfering. The company catalogue describes an in-house R&D team, production facilities, inspection controls and export support for international projects.
You can send a drawing, tube sample or finished-part requirement. The engineering team will review the workpiece range, tooling, utilities and line layout before quotation.
Request a Pipe Chamfering Machine Recommendation
Choose the model after an engineer checks the full part range. A complete RFQ helps Zhuoran confirm the machine, cutter and clamping scope with fewer follow-up emails.
Recommended form fields
– Name and company
– Business email
– Country or region
– Tube OD range
– Wall thickness range
– Material and profile
– Minimum and maximum part length
– Required end geometry
– Parts per shift
– Available voltage and frequency
– Compressed-air supply
– Drawing or sample upload
– Preferred model, if known
Get Your Custom Machine Quotation Now
Not sure which pipe end chamfering machine is right for your application? Send us your pipe samples, and our engineers will perform a free chamfering test. Only place your order after you’re satisfied with the results.
Which pipe chamfering machine should I choose?
Start with your largest tube OD and wall thickness. DJ60NC covers 10-60 mm OD, DJ80NC covers 8-80 mm, DJ120NC covers 10-120 mm and DJ180NC covers 30-180 mm. Material, part length and end geometry also affect the cutter and clamping choice.
Can one machine process several tube diameters?
Yes, within the stated model range and with the correct clamps and tooling. Send the smallest and largest sizes so the engineer can define the change parts in the quotation.
Can the machine chamfer the inside and outside edges?
The DJ120NC and DJ180NC source specifications state that the machines can process the inner edge, outer edge and end face in one setup. Confirm the required geometry for all models before ordering the cutter.
Can these machines process solid bar?
The DJ60NC and DJ80NC specifications list solid-bar diameters from 5 to 30 mm. The source files do not give a bar-diameter range for DJ120NC or DJ180NC, so Zhuoran needs to check those applications from the drawing or sample.
How fast are the machines?
The DJ60NC and DJ80NC source files state about 3.5 seconds per end. The files do not provide a cycle time for DJ120NC and DJ180NC. Material, wall thickness, chamfer geometry, loading and operator handling affect total output.
