Motorcycle pipe bending machine – frame, exhaust, handle, all covered by one piece of equipment
Solutions From Frame to Exhaust Pipe
When you are making motorcycle parts, are you unable to weld due to the bending and rebound deviation of the frame? The thin-walled stainless steel exhaust pipe has excessive ovality, and the entire order is returned. Traditional manual equipment requires many people and has low production capacity. It takes half a day to replace the pipe and adjust the mold, which drags down production capacity.
Zhuoran has been engaged in pipe bending equipment for 16 years, with more than 60 craftsmen, serving more than 40 motorcycle parts manufacturers. The CNC pipe bending machine can increase your production capacity by 3-5 times and reduce the scrap rate from 10%-15% to less than 3%.
To help you solve the problem of springback compensation, mandrel, and quick-change tooling, a complete set of mature processes is delivered with the equipment, eliminating the cost of self-debugging. At the same time, we can also configure a complete set of pipe processing processes, such as pipe cutting, chamfering, and end forming, for you to achieve one-stop purchasing needs.
Why is it difficult to bend motorcycle tubing?
Motorcycle pipe fittings with small diameters and many bends are prone to appearance defects such as pipe wall wrinkling, scratches, flattening and deformation during production. The defects will become more prominent after the finished product is polished and sprayed.
During the processing of pipe fittings, springback will cause size deviation and asymmetry of the left and right pipe fittings. The bending parameters are all controlled by master craftsmen, and the process cannot be standardized. The dimensional stability of mass production is poor, and rework losses continue to increase.
Zhouran CNC pipe bending machine is equipped with an exclusive molding process for motorcycle pipe fittings, with built-in springback compensation, anti-scratch molds and quick-change tooling. The process parameters can be stored and reused, automatically controlling the accuracy of the bending appearance and size, effectively reducing rework and scrap.

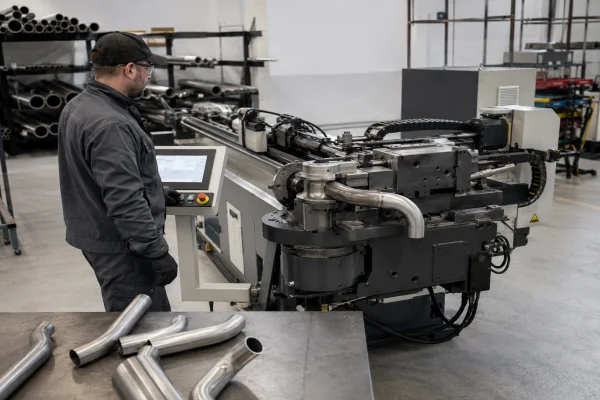

Precision Bending to Avoid Tube Deformation
If you are processing motorcycle exhaust pipes, what really affects the yield rate is often not whether the machine can bend, but whether it is flat, round, and easy to weld after bending.
For thin-walled exhaust pipes, we can provide CNC/NC pipe bending machines (DW38–DW168), and select configurations such as mandrels, scrapers, and boosts according to pipe diameter, wall thickness, and bending radius to improve bending support capabilities and reduce wrinkles, flattening, and surface indentations.
As a pipe bending equipment manufacturer, we are more concerned with making your exhaust pipe bend successful the first time, rather than repeatedly adjusting the machine.

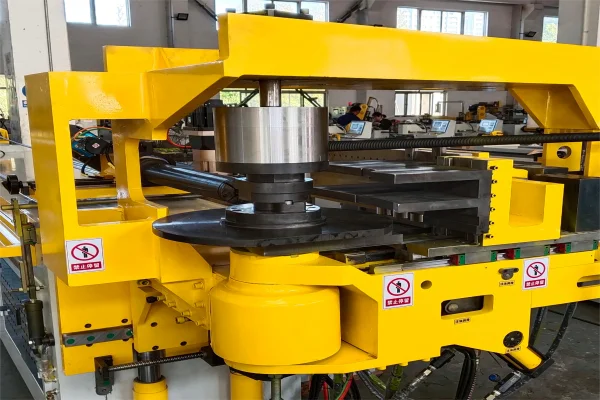

Eliminate Left-Right Tube Deviation
Are the left and right pieces always inconsistent? Make each batch of products easier to replicate
For symmetrical parts such as frame parts, guard bars, and pedal brackets, the real headache for many factories is that the second batch of products cannot achieve the same effect as the first batch.
Our equipment supports programmed processing and parameter storage, and solidifies the bending angle, feeding, cornering and other processes to reduce errors caused by manual experience.
Whether it is 1 sample or 1,000 batches, you can more easily obtain consistent bending effects, reduce assembly rework, and improve product consistency.
Material processing capabilities
Different materials have different bending characteristics and require different equipment parameters and mold configurations – this is our core experience accumulated over 15 years
| Material | Typical Motorcycle Applications | Bending Difficulties | Zhuoran Solutions | Recommended Machine Models |
|---|---|---|---|---|
| Carbon Steel Tube | Main frame tubes, auxiliary tubes, support brackets | Moderate springback, compensation required | Pre-set springback compensation parameters for one-step forming | 3-axis / 4-axis CNC Tube Bender |
| Chromoly Steel Tube | High-performance frames, swingarms | High material strength, large bending force, severe springback | High-torque servo drive with precise springback compensation | 4-axis / 5-axis CNC Tube Bender |
| Stainless Steel Tube | Exhaust pipes, brake fluid lines | Obvious springback, high risk of surface scratches | Advanced compensation algorithm + polished tooling surface | 3-axis / 5-axis CNC Tube Bender |
| Aluminum Alloy Tube | Cooling pipelines, partial frame components | Heavy springback, thin walls prone to deformation | Springback compensation + mandrel support + low-speed bending mode | 3-axis / 4-axis CNC Tube Bender |
| Copper Tube | Oil circuit pipes, partial brake lines | Soft material, easy deformation, sensitive surface finish | Precise pressure control + dedicated soft-material tooling | 3-axis CNC Tube Bender |
How do motorcycle customers usually choose pipe bending machines?
The NC semi-automatic pipe bending machine has outstanding cost performance and is suitable for processing structural parts with fixed processes; the universal 3-axis CNC pipe bending machine can meet the mass production of most motorcycle pipe fittings.
The 5/6-axis CNC pipe bending machine is suitable for complex space bending workpieces with multi-action and high consistency requirements; the double-layer/three-layer multi-layer mold is suitable for exhaust pipes, guard bars, etc. with multiple radii and frequent production changes.
If you send the pipe diameter OD, wall thickness, material, minimum bending radius (CLR) and part drawings, we can provide the corresponding machine model and mold plan faster.
Advantages of our pipe processing equipment
①Less wrinkles and flattening, higher yield of thin-walled parts
②Cleaner appearance, reducing polishing and remediation processes
③The angle is more stable and the clamping and alignment is more time-saving
④The consistency between the left and right parts is better, and the symmetrical parts are easier to deliver
⑤Multi-layer mold reduces mold change time and improves multi-SKU efficiency
⑥The program can be reused, making returns easier to reproduce
⑦ Operations are more standardized, reducing dependence on skilled workers
⑧ Expandable and pipe cutting/chamfering/end forming line
Customer Case
Case 1
Rajesh K. is the production director of a professional manufacturer of motorcycle exhaust pipes in India. The factory supplies 3 motorcycle brands at the same time and needs to switch the exhaust pipe programs of different models 4-6 times a day.
After the introduction of Zhouran DW63CNC-5A-3S pipe bending machine, the 3D simulation function of complex exhaust pipes increased the first-piece pass rate from 65% to more than 95%, and the time for each model switching was shortened from 50 minutes to 8 minutes.
——”Before, we lost nearly 3 hours of production capacity every day due to model change and scrap. Now this problem has basically been solved,” said Rajesh.
Case 2
Carlos M. is the factory manager of a comprehensive manufacturer of motorcycle accessories in Brazil. The factory also produces handlebars, exhaust pipes, cooling pipes and other pipe fittings. It originally required three different types of pipe bending machines to process them separately.
After the introduction of Zoran DW63CNC-4A-2S, through mold change and program switching, one piece of equipment covered the pipe fitting varieties of the original three pieces of equipment, the equipment footprint was reduced by 60%, and the number of operators was reduced from 6 to 2.
——”The cost savings from equipment consolidation exceeded our expectations,” Carlos said.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
Symmetrical parts always assemble inconsistently. What’s the problem?
Common reasons are insufficient springback compensation, inconsistent positioning benchmarks, or non-solidified change parameters. Using reusable programs and standardized calibration processes can significantly improve the consistency of left and right parts and the stability of order returns.
What should I do if there are indentations/scratches on the back surface of the bent pipe?
The focus is on clamping and mold surface treatment, cleaning and lubrication control. For appearance parts, priority should be given to tooling solutions based on the idea of ”surface protection” rather than simply increasing the clamping force.
Can the pipe bending process be matched with pipe cutting and chamfering?
Can. Cutting the pipe to a fixed length, chamfering and deburring it before bending the pipe can significantly reduce bending deviation and welding assembly problems, and the entire line rhythm can be better planned.
What information do you need from me to make a selection?
Pipe outer diameter OD, wall thickness, material, minimum CLR, part length and bending angle, daily production target, and drawings (PDF/STEP) or sample photos.
