CNC Pipe Bending Machine—China Pipe Bender Production Base
It’s great that you found this place. Zhangjiagang, China, is a manufacturing base for CNC pipe bending machines, where you can find better products, cheaper prices, and better service.
4 Key Selling Points of CNC Pipe Bending Machines
From 2-axis single-layer to 6-axis multi-layer configurations — Zhuoran delivers factory-direct CNC pipe bending machines with proven accuracy, flexible customization, and competitive pricing.
- ✅ 2-Axis to 6-Axis configurations — matched to your production complexity
- ✅ Tube diameters from Ø5mm to Ø168mm, wall thickness up to 12mm
- ✅ 15″ industrial touchscreen with 3D simulation & STEP file import
- ✅ Direct from factory — competitive CNC pipe bending machine pricing
CNC Pipe Bending Machine — Core Specifications
Pipe Bending Machine Built for Production Efficiency
| Specification | Range / Detail |
|---|---|
| Tube Diameter Range | Ø5mm — Ø168mm |
| Wall Thickness | Up to 12mm |
| Bending Radius Range | 15mm — 600mm |
| Bending Angle | Up to 190° |
| Axis Configuration | 2-Axis / 3-Axis / 4-Axis / 5-Axis / 6-Axis |
| Mold Layers | Single-layer / Double-layer / Triple-layer / Multi-layer |
| Control System | CNC PLC with 15″ industrial touchscreen |
| Program Storage | 500 programs, up to 30 bends per program |
| File Import | STEP 3D file direct import |
| Simulation | Real-time 3D bending simulation |
| Interference Detection | Automatic collision detection |
| Coordinate System | XYZ / YBC auto-conversion |
| Language Support | Multi-language interface |
| Material Compatibility | Carbon steel, stainless steel, aluminum, copper, alloy |
| Machine Length | 4000mm — 7500mm (model dependent) |
Highlight Points:
- 3D simulation eliminates costly trial bends before production
- Auto interference detection prevents tooling and workpiece collisions
- Multi-layer mold design — switch bend radius without stopping the machine
- STEP file import converts 3D designs to bending programs in minutes
- 500-program storage handles complex multi-product production schedules
Our Products — CNC Pipe Bending Machine Series
Full CNC Pipe Bending Machine Model Range — 2 Axis to 6 Axis

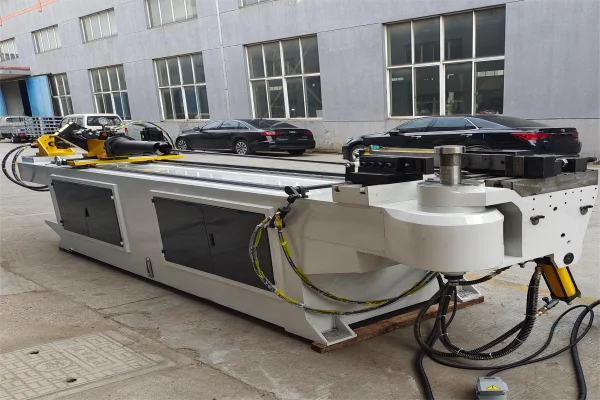

2 Axis CNC Pipe Bending Machine – Single-Layer Mold
Best for standard bends and cost-effective automation. Ideal when you run one main radius and want simple, stable production.

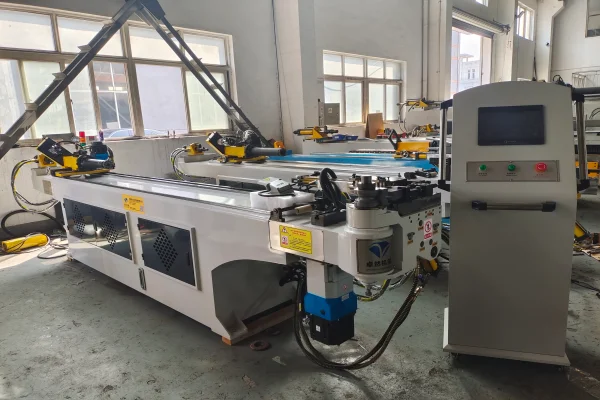

3 Axis CNC Pipe Bending Machine – Single-Layer Mold (DW38–DW114)
A strong all-rounder for automatic feeding + rotation + bending. Great for multi-bend parts with reliable rhythm.

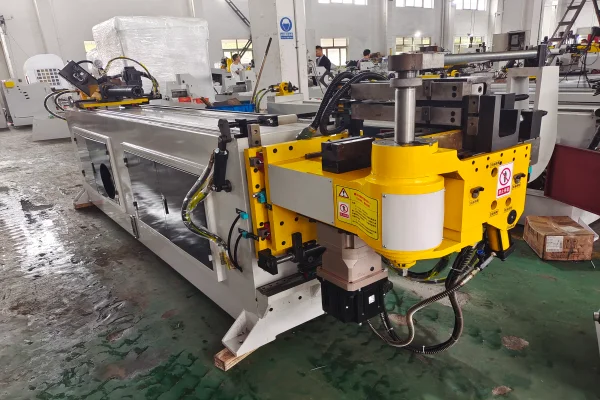

4 Axis CNC Pipe Bending Machine – Double/Triple Layer Mold
Built for fast switching between radii. Reduce die changes and keep throughput high for mixed-SKU production.

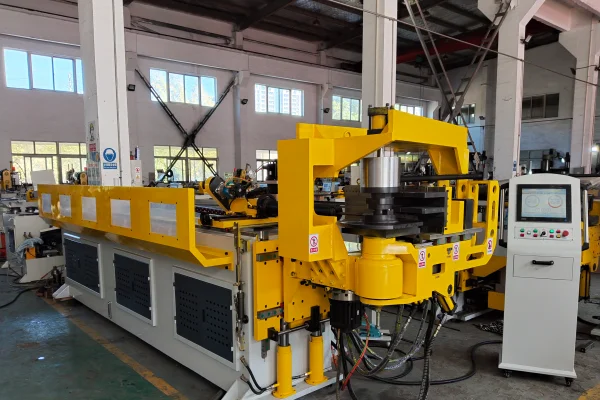

5 Axis CNC Pipe Bending Machine – Double/Triple Layer Mold
Higher flexibility for complex parts and multi-radius jobs. A good choice when your drawings change frequently.

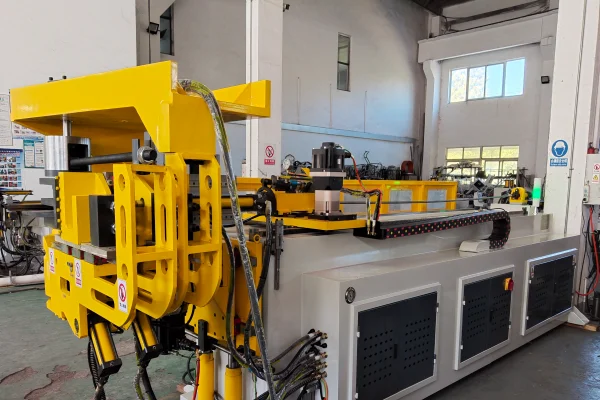

6 Axis CNC Pipe Bending Machine – Multiple Layers
For demanding 3D bends and higher automation potential. Ideal for advanced production and complex geometry control.

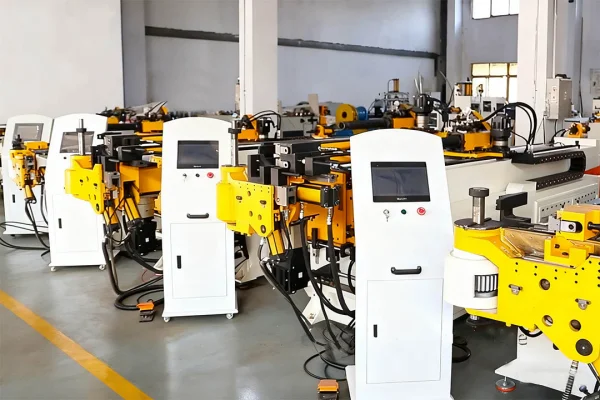

Automatic Tube Bending Production Line
Integrate bending with loading/unloading and line workflow. Designed for higher output and lower labor dependency.
Core Functions of CNC Tube Bending Equipment
What Makes Our CNC Pipe Bending Machine Stand Out？
🖥️ 15" Industrial Touchscreen Control
Graphical interface with step-by-step operation guidance — reduces operator training time to hours, not weeks.
📁 STEP File Direct Import
Convert your 3D CAD designs into bending programs instantly — no manual re-entry, no programming errors.
🛡️ Automatic Interference Detection
The system detects collision risks automatically and alerts the operator — protecting tooling, tube, and machine.
🔄 Multi-Layer Mold — No Die Change Needed
Switch between different bending radii within the same program — zero downtime between radius changes.s.
🌐 Multi-Language Interface
Switch between languages instantly — suitable for operators and production teams across 80+ countries.
🎯 Real-Time 3D Bending Simulation
Visualize the full bending sequence before running a single tube — eliminate costly trial-and-error setups.
📡 Remote Program Editing
Edit and upload bending programs remotely — adjust production parameters without interrupting the machine.
💾 500 Program Storage / 30 Bends Per Program
Store your full product catalog in the machine — instant recall for repeat orders, no re-programming required.
Which CNC Pipe Bending Machine Do You Need?
Choosing the right CNC pipe bending machine starts with understanding your bending complexity. A 2-axis machine handles single-plane standard bends — ideal for furniture frames and simple brackets. Step up to 3-axis for spatial multi-plane bending required in automotive exhaust or HVAC systems.
If your parts require multiple bending radii without die changes, a 4-axis or 5-axis multi-layer machine cuts your changeover time to zero. For maximum automation and complex programs, the 6-axis series is your answer. Not sure where you fit? Our engineers will analyze your tube specs and recommend the right configuration.

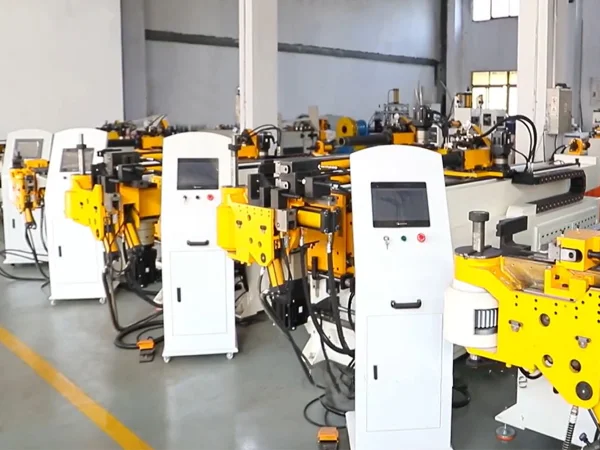

Competitive Price, No Compromise on Quality
Zhuoran Machinery is a 100% original factory; all pictures on the website are real factory photos. While ensuring quality, we eliminate middlemen to provide you with highly competitive CNC pipe bending machine prices.
Each machine undergoes comprehensive factory testing before leaving the factory. With over 16 years of manufacturing experience and a rich product line exported to more than 80 countries and regions, we provide you with high-quality Chinese-made pipe bending machines, along with professional engineering technology and reliable global after-sales service.

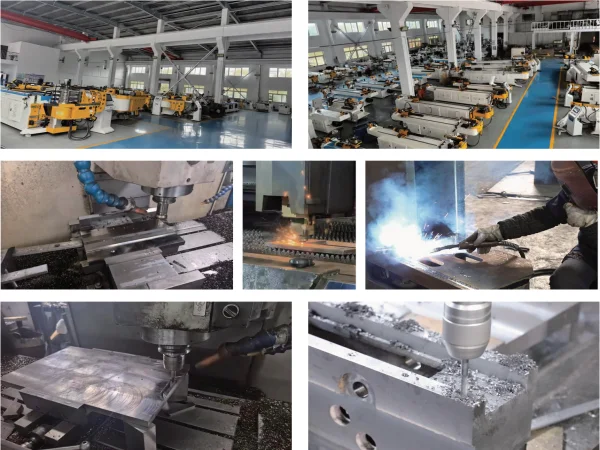

CNC Pipe Bending Machine Price: What Changes the Quote?
Your cnc pipe bending machine price mainly depends on:
- Tube OD and wall thickness range (capacity level)
- Axis configuration (2/3/4/5/6 axis)
- Mold layers (single vs double vs triple)
- Tooling scope (number of radii, mandrel/wiper/boost options)
- Feeding stroke requirement and automation options
If you share OD, thickness, CLR, material, and your drawing, you can get a fast, accurate configuration and quotation.
CNC vs NC vs Automatic — Pipe Bending Machine Comparison
Semi-Automatic vs CNC vs Fully Automatic Pipe Bending Machine — Which Is Right for You?
| Comparison Item | NC Semi-Automatic Pipe Bending Machine | CNC Pipe Bending Machine | Automatic Tube Bending Production Line |
|---|---|---|---|
| Control Method | Manual NC panel input | PLC + touchscreen programmable control | Fully integrated PLC + robotic/auto-feed control |
| Automation Level | Low — operator-assisted each cycle | Medium-High — automated bending cycle | Highest — feeding, bending, unloading fully automated |
| Programming | Simple angle & speed input | 500 programs, STEP import, 3D simulation | Integrated line programming, MES compatible |
| Bending Accuracy | Good — operator dependent | High — servo-controlled repeatability | Highest — consistent across full production run |
| Setup Time | Short — simple tooling setup | Medium — program + tooling setup | Longer initial setup, minimal per-batch setup after |
| Die Change | Manual, straightforward | Manual or multi-layer auto-switch | Automated or semi-automated changeover |
| Operator Skill Required | Low to medium | Medium | High (setup) / Low (running) |
| Production Speed | Moderate | High | Highest |
| Suitable Batch Size | Small to medium batches | Medium to large batches | Large to mass production |
| Product Complexity | Simple single-plane bends | Complex multi-plane, multi-radius bends | Standardized complex parts at volume |
| Material Range | Carbon steel, aluminum, stainless steel | All materials up to 12mm wall | All materials, typically standardized specs |
| Capital Cost | ✅ Lowest | ⚡ Medium | ❗ Highest |
| Operating Cost | Medium (labor-intensive) | Low-Medium | Lowest per part |
| Best For | Small workshops, varied low-volume jobs | Automotive, aerospace, HVAC, furniture | Mass production, automotive OEM, high-volume lines |
| Recommended When | Budget-sensitive, flexible mix of jobs | Balance of precision, flexibility & cost | Volume justifies automation investment |
Friendly Reminder
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
What is the price range of CNC pipe benders?
NC suits repeat simple bending; CNC for complex 3D work. Send tube specs for matched control advice.
Can I import my 3D tube design directly into the machine?
Yes. All Zhuoran CNC pipe benders support direct import of STEP files.
What tubes and sizes can your machines process?
Our CNC pipe benders work with carbon steel, stainless steel, aluminum, copper and alloy tubes. Tube OD ranges from Ø5mm to Ø168mm with wall thickness up to 12mm, based on different models.
What after-sales support do you provide?
Each machine comes with operation manuals, remote video commissioning, operator training and spare parts supply. We reply to technical issues within 24 hours.
Which industries use your equipment?
Auto parts, aerospace, metal furniture, fitness equipment, medical devices, shipbuilding, construction machinery, HVAC, new energy, motorcycles and general metal processing.
