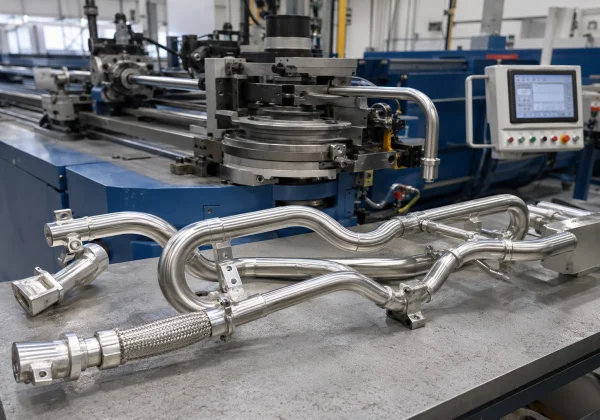

Zhuoran Machinery’s pipe bending capabilities for automobile mass production
Automotive pipe bending machine precision forming solution
Your vehicle production line is covered with hundreds of meters of metal pipes, covering exhaust, brake, fuel, chassis structure, air conditioning and new energy battery cooling pipelines. The bending accuracy and consistency of pipe fittings directly determine the safety, assembly efficiency and yield rate of the entire vehicle.
With the lightweighting of car companies, the upgrade of IATF16949 quality control, and the complexity of new energy thermal management pipelines, your current ordinary pipe bending machine is prone to problems such as wrinkles, collapse, coating damage, and dimensional drift, resulting in high scrappage, failed audits, and delivery delays.
Zhuoran Machinery has been deeply involved in automobile pipe bending technology for 15 years. It has customized a full range of CNC pipe bending machines for nine major automobile pipe forming pain points. It does not need to rely on imported high-priced equipment, helping you reduce scrap, stabilize accuracy, and easily pass the quality control audit of automobile companies.
What Problems Can We Solve?
– New energy battery cooling tubes are currently the biggest pain point. Ultra-thin aluminum tubes are prone to collapse and have many scratches; our exclusive two-way bending + scratch-free tooling solves mass production problems.
– The price of direct supply from the original factory is 30%–50% lower than that of European and American equipment. It comes with a full set of automotive-grade quality control data traceability and directly supports PPAP/FAI audits.
– When you mass-produce pipe fittings for multiple models, mismatching the number of axes will result in 15%–25% high scrap; we accurately match 3–6 axes models according to the complexity of your pipelines, and the first-time pass rate is ≥95%.
– When you make safety parts (brake/fuel), you often face coating damage and dimensional deviation; our anti-scratch mold + closed-loop measurement meets FMVSS, ECE, and IATF standards.

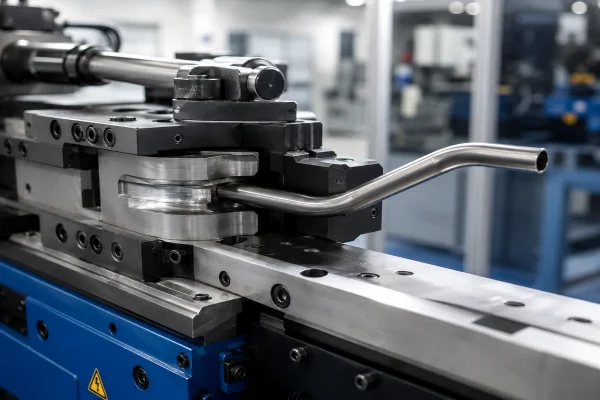

Auto High Precision Pipe Bending Machine
When you produce automotive pipe fittings such as exhaust, brakes, fuel, chassis, seats, new energy cooling, etc., the difficulty is not to complete the bending, but to stably form batches, strictly control scrapping, and meet the OEM audit standards.
Due to the wide variety of automotive pipe fittings, large material differences, and complex bending radii, it is difficult for an ordinary pipe bending machine to take into account efficiency, accuracy, and consistency at the same time.
Zhuoran Machinery provides 2-axis to 6-axis CNC pipe bending machines, fully automatic pipe bending machines, mandrel pipe bending machines and automated pipe processing production lines according to different automotive pipe fitting working conditions to help you stably make complex pipe fittings into qualified products.
How to Choose the Right Pipe Equipment?
In automotive pipe processing, the most common problems are: pipe collapse after bending, wrinkling, unstable rebound, inconsistent dimensions, slow mold change, and long manual adjustment time. Once the equipment selection does not match, problems such as batch rework, high scrap rate, and delivery delays will occur.
Zhuoran will not recommend equipment to you based only on pipe diameter, but will help you match the appropriate number of axes, mandrel structure, mold configuration and feeding method based on your pipe material, outer diameter, wall thickness, bending radius, three-dimensional bending shape, annual output and automation needs. We will give you a solution for long-term stable mass production.
Common Issues with Automotive Pipe Fittings

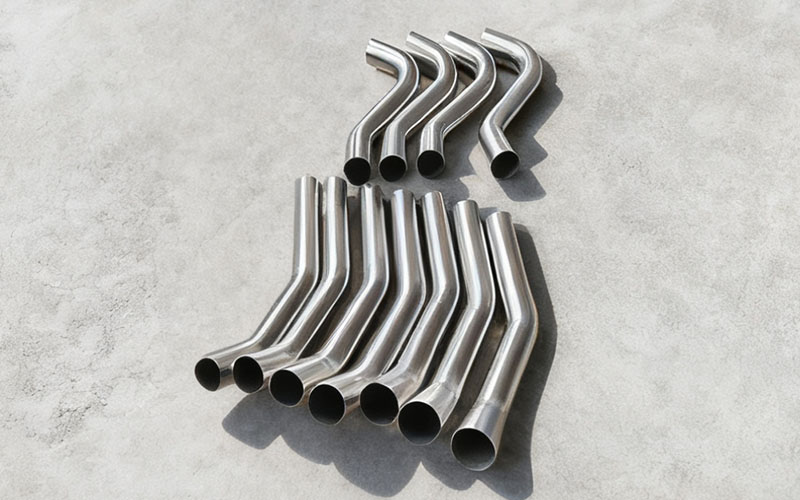

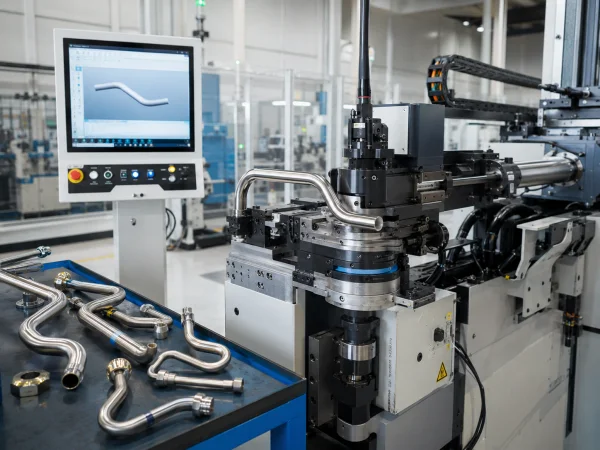

1. Exhaust pipe elbow: thin wall collapse, wrinkles, rebound
When producing exhaust manifolds, mid-section pipes, tail pipes, and muffler connecting pipes, you are often troubled by problems such as small-radius bending and flattening of thin-walled stainless steel, wrinkles on the inside, and inconsistent rebound of raw material batches, which affect the product yield.
Our pipe equipment can adopt multi-ball mandrels, servo die, boosting mechanism, and springback compensation technology to effectively prevent collapse, suppress wrinkling, and reduce springback errors; it supports quick-change molds and special fixtures to help you quickly change molds, reduce trial bending waste, and ensure the stability of mass production.

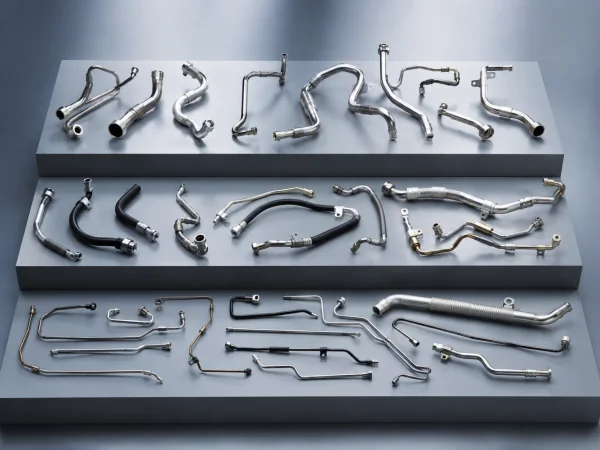

2. Brake pipeline bends: ensuring high precision of safe pipelines
Safety-grade brake tubes are equipped with anti-corrosion galvanized coatings. When bending, the risk of coating damage and corrosion must be eliminated, and the ovality and bending accuracy must be strictly controlled. Small angle deviations will cause joint assembly misalignment, making it impossible to meet quality requirements.
Zhuoran Brake’s special pipe bending machine is equipped with an anti-scratch mold, a servo-adjustable clamping mechanism, and an automatic feeding coil system. It can complete multi-plane bending with one clamping, eliminating dimensional errors caused by manual shifting, and achieving stable mass production.
Machine Capability
| Parameter | Industry Standard | Our Machine Capability |
|---|---|---|
| Bending Accuracy | ±0.3° | ±0.1° |
| Tube Ovality | < 8% | < 5% with Mandrel Support |
| Surface Finish | No Coating Damage | Standard Anti-Scratch Tooling |
| Cycle Time per Bend | < 3 s | Up to 1.8 s per Bend |
| Tool Change Time | < 15 min | Quick Tool Change System |
3. Fuel pipeline elbow: misaligned joints and low cleanliness
When producing chassis fuel pipes, the biggest concern is that bending angle deviation will cause joint seal leakage, as well as machining debris and oil residues to block the oil circuit and damage the oil pump. The fuel pipe has a complicated bend, and separate processing can easily cause secondary pollution and dimensional deviation.
Zhuoran provides integrated solutions for pipe cutting, pipe bending, pipe end forming, and inspection to reduce secondary pollution and ensure molding accuracy; laser online inspection effectively avoids assembly misalignment; it is equipped with quick changeover capabilities to meet your flexible production needs for multiple models.
Seat frames and interior fittings
Are you experiencing surface indentations, thin-walled tube collapse, or a lack of assembly accuracy? We use anti-wrinkle molds and intelligent servo control technology to effectively avoid scratches and collapse, helping you to stably produce high-quality seats and interior fittings.

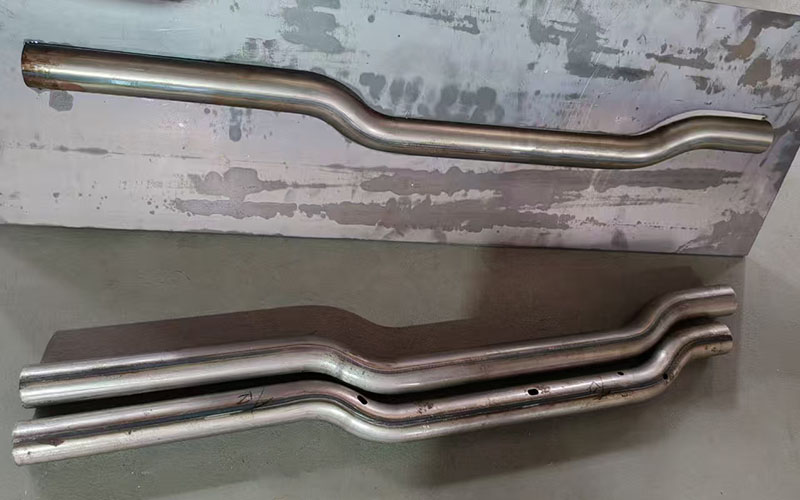

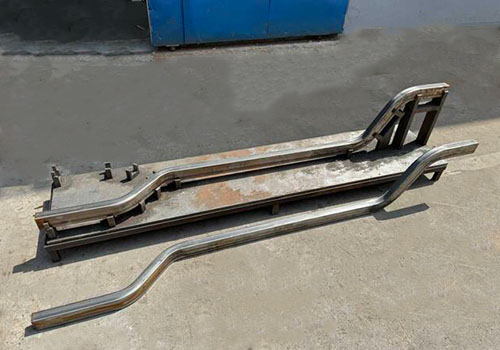

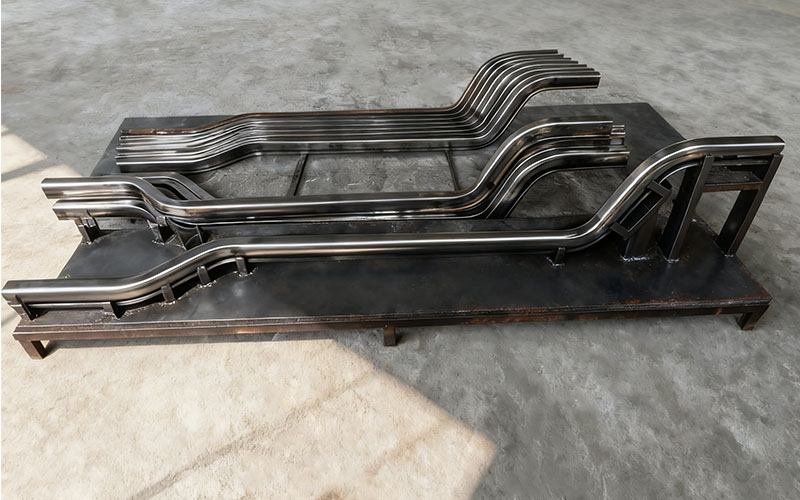

Chassis frame structural parts elbow
Worried about the thinning of the frame’s bent tube wall thickness, loss of strength, or difficulty in molding complex structures? We relies on its rich experience in frame processing and uses high-torque drive, servo boost and multi-specification mandrel technology to effectively control wall thickness thinning and help you stably complete the mass production of high-strength frame structural parts.
Suspension and steering components
Worried about bending scratches and residual stress affecting fatigue life? We combine finite element simulation to optimize the bending process and control wall thickness thinning and residual stress in advance to help you improve product reliability and consistency.
Car air conditioning system
Do dimension deviations of long pipelines and complex space bends require you to repeatedly adjust the machine? Zhuoran uses closed-loop online detection technology to correct bending parameters in real time, helping you improve long pipeline forming accuracy and reduce rework.
Battery thermal management pipeline
Has the product been scrapped due to collapse, scratches or leaks? Zhuoran has accumulated rich experience in new energy projects and uses two-way continuous bending, scratch-free tooling and real-time wall thickness monitoring technology to help you stably produce high-precision cooling pipes and significantly reduce the scrap rate.
Hydraulic and pneumatic pipelines
Thick-walled steel pipes have a large rebound, and each batch of materials must be re-bended? Zhuoran is equipped with an adaptive springback learning system that automatically corrects compensation parameters to help you quickly complete model changes and machine adjustments, improving production efficiency and product consistency.
How to choose automobile pipe bending equipment?
Zhuoran can provide professional selection suggestions based on your product needs. It is recommended to use a 3-5-axis full servo pipe bending machine for fluid pipelines, equipped with anti-scratch molds, mandrel boost, laser detection, and closed-loop control, to meet the needs of complex bending processing such as braking, fuel, exhaust, air conditioning, etc.
For heavy-duty frames, hydraulic pipelines, and new energy battery cooling pipes, 5-6 axis high-end models are recommended. Combined with a large torque drive, rebound compensation, two-way bending, and scratch-free tooling, it can help you stably achieve high-precision, high-efficiency mass production.
Common Bending Defects and Control Measures
| Defect Type | Root Cause | Control Method |
|---|---|---|
| Wrinkling on inner radius | Insufficient pressure die force, misaligned mandrel position | Increase pressure die force and calibrate mandrel stroke |
| Tube collapse / flattening | Undersized or missing mandrel | Match proper multi-ball mandrel and select ball count based on bend radius |
| Surface scoring / galling | Worn tooling, insufficient lubrication | Inspect tool surfaces every 500 cycles and equip with automatic lubrication system |
| Dimensional drift in batches | Tool wear, batch-to-batch material hardness variation | Regular sampling inspection with SPC statistical process control |
| Springback variation | Inconsistent raw material hardness | Real-time angle detection with adaptive springback compensation |

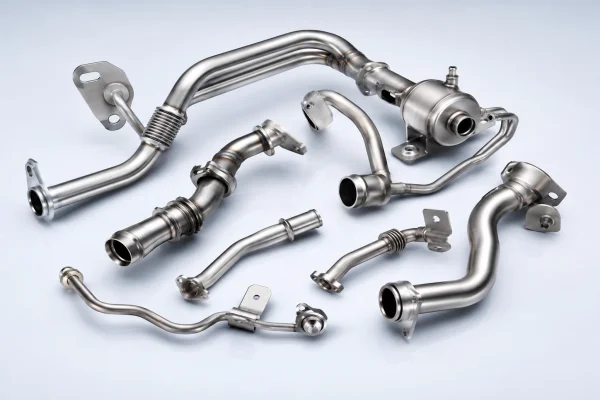

Quality Control System
Each pipe bending machine is manufactured in accordance with the automotive industry quality control standards before leaving the factory:
- 72-hour full-load aging test: The whole machine continuously simulates mass production operation, and the complete test report is delivered with the equipment;
- Complete set of calibration tooling: The alignment accuracy of the tooling and the fuselage datum is controlled within 0.01 mm;
- Complete process documents: supporting recommended parameters for various types of pipes, maintenance schedules, and troubleshooting manuals;
- Internet of Things remote diagnosis: Engineers can view equipment operating status and process parameters in real time.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
What are the common causes of scrapping of bent automobile pipe fittings?
The three major problems of thin wall collapse, inner wrinkling, and material rebound deviation are the main sources of scrapping of automobile exhaust pipes and cooling pipes.
Why must a full servo pipe bending machine be used for brake pipes?
The requirements for brake pipe accuracy and coating integrity are extremely high. The full servo model can ensure ±0.1° bending angle accuracy without damaging the anti-corrosion coating.
Q: Why is integrated pipe bending equipment recommended for fuel pipes?
Integrated pipe cutting, pipe bending, and pipe end forming reduce workpiece transfer, ensure pipeline cleanliness, and avoid oil pipeline impurity contamination.
How to ensure that the dimensions of pipe fittings are exactly the same in mass production?
Rely on servo closed-loop control, springback adaptive compensation + laser online detection to eliminate material batch errors.
How to reduce model changeover time in mixed line production of multiple models?
With the quick-change tooling + built-in formula parameter library, model switching can be completed in as fast as 8 minutes, significantly reducing test bending scraps.
