Aerospace tube bending｜Precision tube forming solutions specially designed for aircraft/spacecraft
At Zhuoran Security, safety is the top priority.
Every corner of your aviation hydraulic, fuel, and pneumatic pipelines directly determines flight safety. A single narrow-body passenger aircraft contains more than 2,000 pipe bends, and aviation-grade tolerances require accurate bending angles of ±0.1°, <3% ovality, and <15% wall thickness reduction. Once the bend molding fails, the system will shut down at best, or it will cause a catastrophic failure in the air.
Many aviation manufacturers will encounter common problems: imported pipe bending machines have long delivery times and high quotations; ordinary domestic equipment has substandard accuracy, is difficult to process titanium alloy/Inconel alloy, and has a high scrap rate.
Based on your production pain points, Zhuoran Machinery uses special pipe bending equipment that benchmarks European and American precision to avoid the high price and long delivery time of imported equipment, and adapts to the AS9100 aviation quality control system throughout the process.

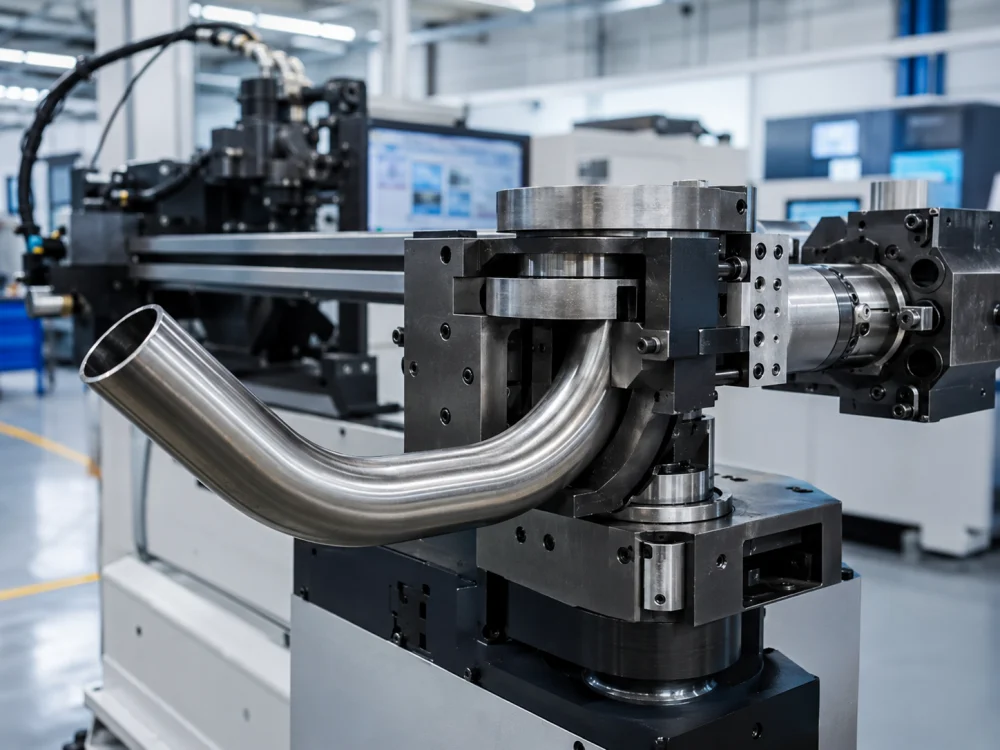

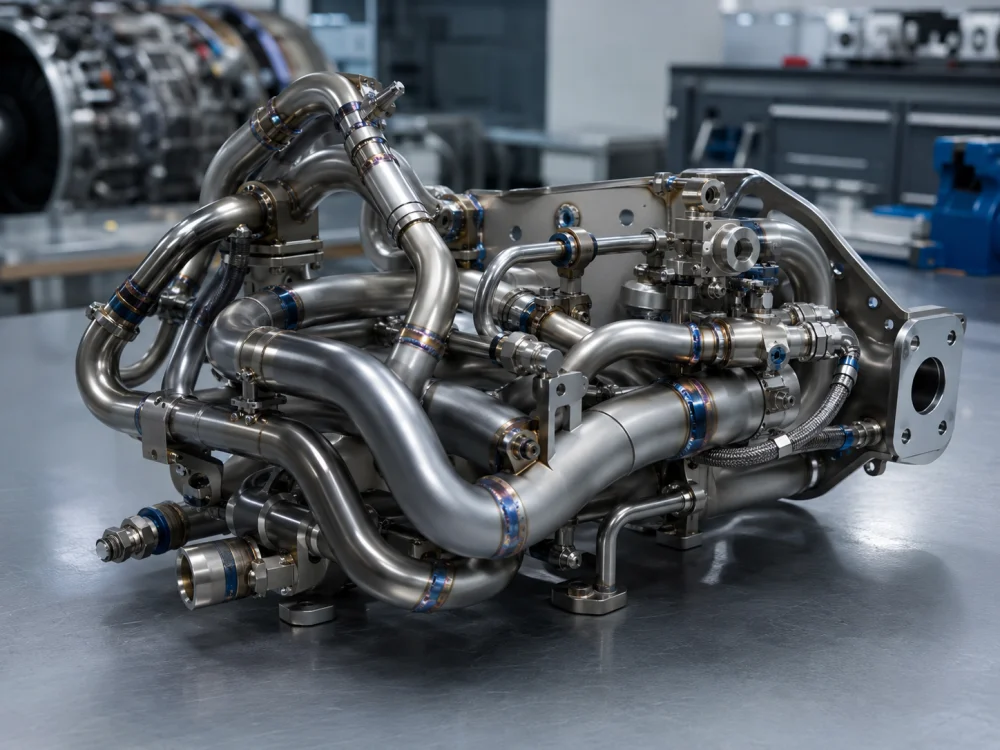

Molding Solutions For Aviation Pipe Fittings
The production of aviation pipe fittings has strict precision requirements. Only high-end CNC equipment can achieve ±0.1° bending angle control and ensure that the ovality of pipe fittings is stable within 3%. Titanium alloy, Inconel, and other special pipes are extremely difficult to process. The molding process is prone to cracking and excessive springback. Ordinary equipment cannot be adapted. You must choose customized special molding equipment.
Zhou ran’s multi-axis CNC pipe bending machine perfectly matches aviation manufacturing standards. The equipment is equipped with core functions of 1.5D extremely small radius bending, mandrel stretch bending, and automatic rebound compensation. It provides you with a cost-effective pipe forming solution that can be mass-produced on a large scale, and is a one-stop solution to various pain points in special pipe processing.

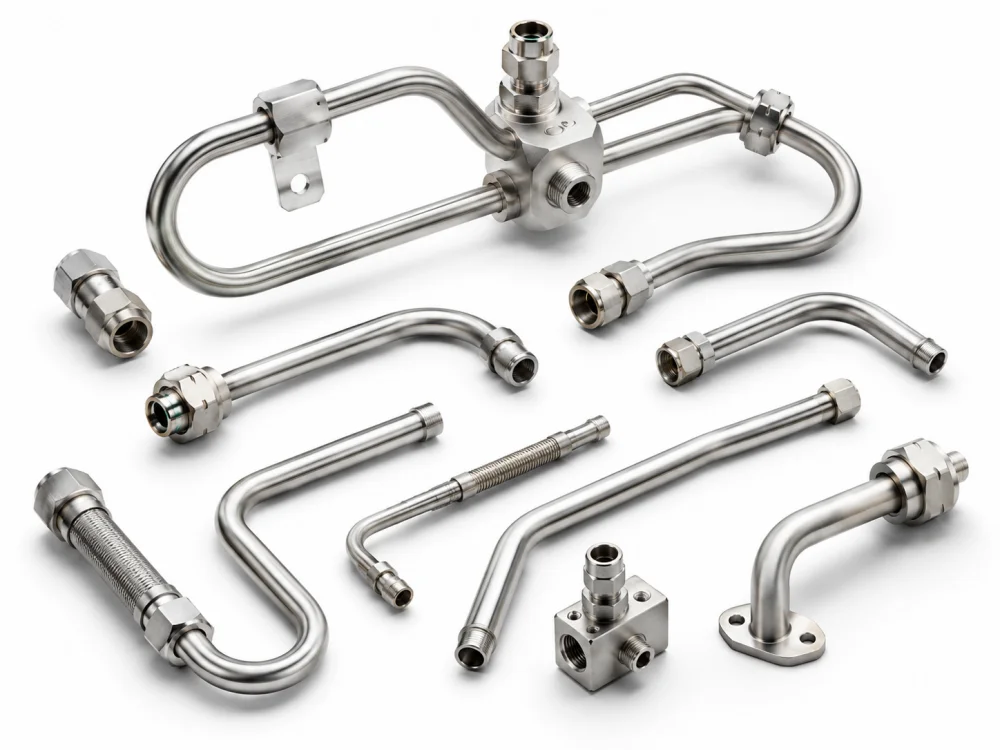

Molding Solutions For Aviation Pipe Fittings
In the past, you used straight pipes with welded joints to build fluid pipelines. For a long time, you faced three core problems: easy weld failure, increased weight of the fuselage, and high fluid loss in the pipelines, which restricted the overall performance of the aircraft.
Zhuoran’s pipe equipment can achieve continuous pipe bending during processing, which can solve pain points at once: cutting 30%-50% of welding nodes, reducing flaw detection expenses and leakage risks; the weight of the entire machine can be reduced by up to 200kg, improving load capacity and fuel utilization; pipeline pressure drops are reduced by 15%-25%, and the hydraulic and pneumatic systems operate more smoothly and stably.
Adapted To Extreme Aviation Processing Conditions
Ordinary pipe bending equipment cannot meet the standards under the harsh working conditions of aviation. Your pipe fittings must withstand 5000PSI high pressure, -65℉~1200℉ ultra-wide temperature range, high-frequency vibration and various corrosive environments. Pipe fittings processed by conventional equipment are prone to collapse, fatigue cracking, and surface damage.
General pipe-bending equipment cannot be used in the production of aviation pipe fittings. Zhuoran’s customized aviation pipe-bending machine is targeted and optimized. The mechanical structure and control system are specially designed for explosion-resistant, fatigue-resistant and corrosion-resistant aviation pipe forming.
Four Aviation Pipeline Scenarios
Our tubing equipment can precisely match your aerospace material forming needs.

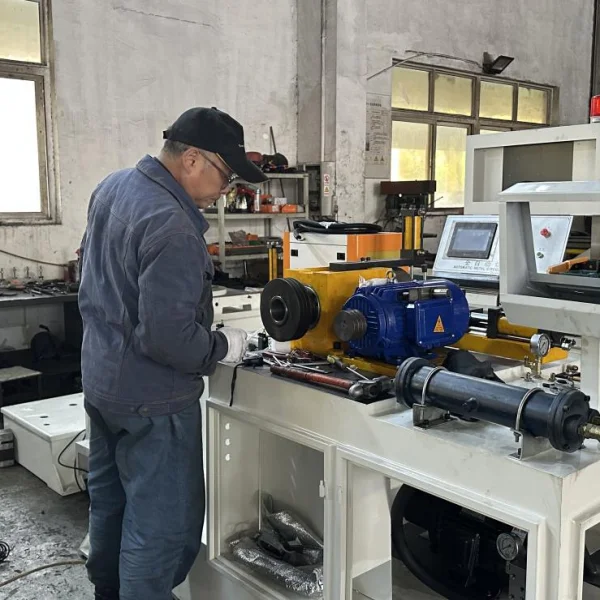

1. Hydraulic system (high pressure, high circulation)
When pipelines are subjected to high pressures of 3000-5000 PSI and millions of pressure alternations for a long time, bending, wrinkles and cross-sectional deformation of the pipe can easily lead to pipe explosion. The equipment comes standard with a servo die and a multi-ball mandrel, which can stably control the ovality within 3%, without cracks and wrinkles, and is suitable for processing full-size aluminum and stainless steel hydraulic pipes.
2. Fuel delivery system (high cleanliness, anti-deformation)
Since the fuselage continues to deform and pull on the pipes during flight, the debris generated by ordinary processing can easily clog the fuel nozzles. The entire machine is equipped with a low-speed molding process and a dust-proof sealing structure, and is equipped with a soft transitional bend-processed 2024/6061 aluminum tube, which takes into account both lightweight and long-term sealing and cleanliness standards.

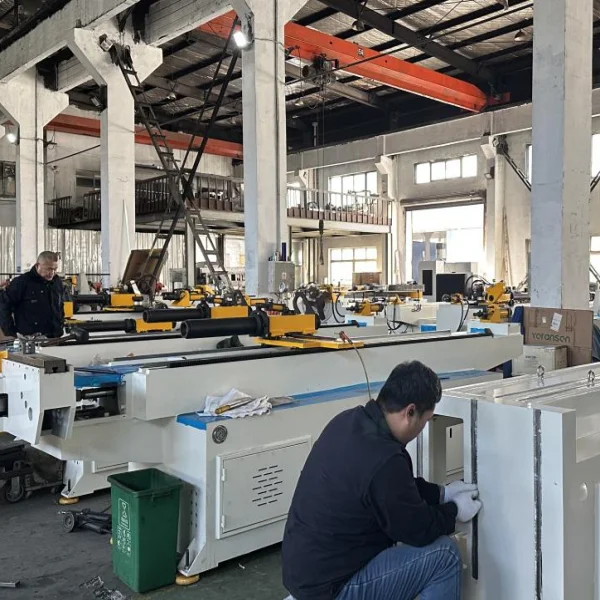

3. Environmental control/air bleed system (high temperature, complex multi-plane)
Under high-temperature working conditions, multi-dimensional three-dimensional bending of stainless steel and titanium alloys is prone to tooling interference. The 5/6-axis CNC bending equipment has built-in three-dimensional offline collision simulation, and can complete multi-layer complex bending shapes in a single clamping, reducing scrapping and loss of pipe fittings from the source.
4. Pipe structural parts (high consistency, easy assembly)
Batch size deviations of structural pipe fittings will slow down the assembly efficiency of the entire machine. The equipment is equipped with a closed-loop size compensation system, which has excellent molding repeatability. The pipe fittings produced in large quantities have uniform sizes and can be directly matched with automated assembly lines.
Difficult-to-Machine Aerospace Alloys
Our CNC tube benders deliver tailored forming solutions for hard-to-process aerospace titanium, Inconel, stainless steel and aluminum alloys to reduce springback, galling, cracking and scrap rate.
| Material Grade | Core Forming Challenges | Zhuoran Customized Solution |
|---|---|---|
| Ti-6Al-4V, Ti-3Al-2.5V | Excessive springback, tube surface galling | Hardened tooling + built-in adaptive springback database, one-time calibration |
| 304 / 321 / 17-7PH Stainless | Fast work hardening, inconsistent bending result | Servo boost system, independent precise pressure die control for stable batch production |
| Inconel 625 / Inconel 718 | High forming force, die abrasion, crack risk | Tungsten carbide dies + hydraulic boost + slow feed; boosts yield to 92%, cuts cost by 40% |
| 2024 / 6061 / 7075 Aluminum | Post-aging brittleness, stress corrosion cracks | Annealed bending process compatible with post-bend re-aging to eliminate cracking defects |
High-Frequency Problem Solving
Facing the four major forming challenges of aerospace tubing—thinning, springback, tearing, and scrap loss—we offer exceptional performance with strict tolerance control to reduce scrap.
1. Excessive Tube Wall Thinning
When forming thin-walled aerospace tubing, excessive wall stretching and excessive cross-sectional ellipticity are common problems. We utilize a servo-assisted propulsion system, a dedicated multi-ball mandrel, and dynamic pressure mold linkage optimization to precisely distribute bending and tensile stress, ensuring all key parameters are stably controlled within aerospace compliance limits.
2. Uncontrolled Tube Springback
When bending materials such as titanium alloys and stainless steel, irregular tube springback can significantly slow down production. Our equipment incorporates a comprehensive aerospace alloy pre-formed springback database, coupled with real-time on-machine angle verification, automatically compensating for springback deviations, allowing you to completely eliminate inefficient trial-and-error adjustments.
3. Tube Surface Tearing
When mass-producing precision hydraulic pipelines, surface tearing and residual contamination can directly lead to servo valve jamming and system malfunctions. We employ ultra-high precision forming molds with a Ra0.4μm diameter, coupled with a quantitative and controllable lubrication system, to achieve non-sticking and residue-free forming, fully meeting your pipeline cleanliness requirements.
4. High-Cost Scrap
When processing expensive pipe materials such as titanium alloys and Inconel, tooling interference and process deviations can lead to high material scrap losses. We incorporate offline 3D bending simulation to predict interference risks in advance, combined with real-time Cpk process capability warnings to identify process deviations early, significantly reducing the loss of high-end alloy raw materials.
Compliant to aviation grade tolerances
Our CNC tube benders meet strict aerospace tolerances with full data traceability, supporting AS9100 & AS9102 audits via high-precision hardware, built-in quality logging and CMM closed-loop correction.
Get your customized aviation tubing solution now!
You don’t need to pay premiums for import lead times or unreliable general-purpose equipment. Send us your tubing material, outer diameter, wall thickness, 3D bending diagram, and tolerance requirements. Within 48 hours, we will provide you with a customized equipment configuration, capacity calculation, and accurate quote, completely eliminating your concerns.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
