Professional Pipe Cutting Machine Manufacturer
Don’t waste time and materials on inaccurate cuts and excessive deburring. Zhuoran’s pipe cutting machine series delivers ±0.1mm, burr-free surface finishes, and rapid diameter changes, ensuring your production line runs continuously.
Product Description of Pipe Cutting Machine
Zhuoran CNC pipe cutting machines can precisely cut metal pipes of various sizes from 10mm to 120mm in diameter. With advanced CNC technology, it can process up to 300 pipes per hour, each with a smooth, even finish, like slices of bread. Zhuoran CNC pipe cutting machines are ideal for industries such as automotive, HVAC, and furniture manufacturing.
We help factories achieve high efficiency, superior cutting edge quality, and reliable repeatability for every batch. Balancing speed and precision, Zhuoran’s intelligent cutting solutions are trustworthy and meet your production needs.
Our Pipe Cutting Machine Series
Looking for NC pipe cutting machines? We supply small semi-automatic NC pipe cutting machine, MC350CNC and MC425CNC CNC cutters for round metal pipes, wide processing range, high efficiency for mass production.

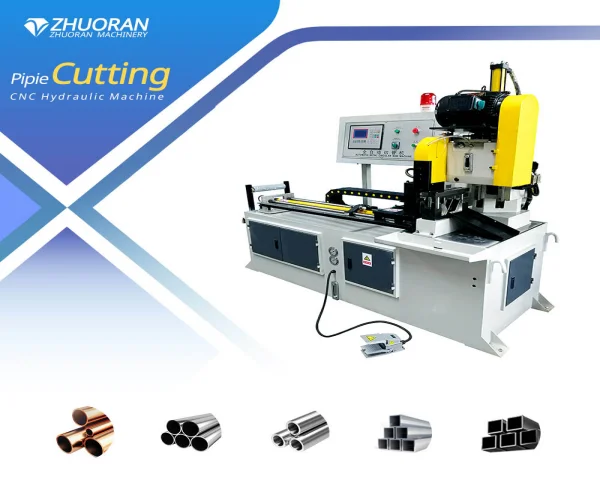

MC425CNC pipe cutting machine
Use this section to describe your company and the services you offer. You could share your company’s story and details about why you are in business. The goal is to create a connection with the visitor and give them confidence to work with you.

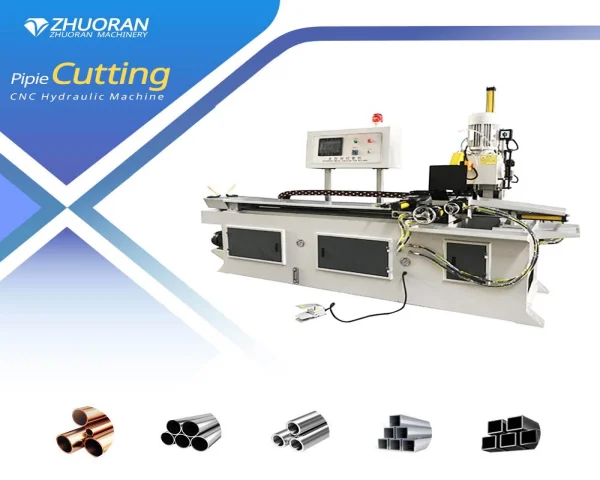

MC350CNC pipe cutting machine
Use this section to describe your company and the services you offer. You could share your company’s story and details about why you are in business. The goal is to create a connection with the visitor and give them confidence to work with you.

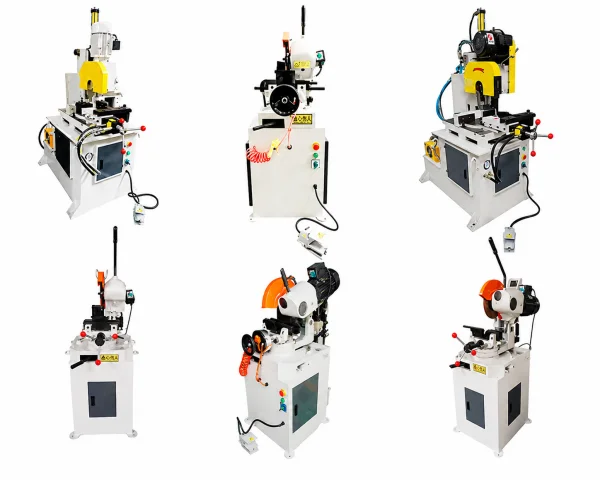

Small Semi-automatic CNC cutting machine
This small pipe cutting machine is commonly used for small-scale cutting production, or for bulk purchases by distributors and sales in the local market. Our equipment has been exported to 28 countries in Southeast Asia, South America, Europe and other regions.
Advantages of Our Pipe Cutting Machines
- Cutting length accuracy ±0.1mm, ensuring stable dimensional consistency in batch processing.
- Burr-free, smooth, and clean cutting surfaces, eliminating the need for secondary grinding.
- Covers NC semi-automatic and CNC fully automatic models, compatible with complete automated production lines.
- Processes various metal pipes, including carbon steel, stainless steel, aluminum, and copper.
- CNC parameter storage enables rapid model changeover, adaptable to multi-specification, small-batch orders.
- Supports automatic fixed-length cutting, with controllable dimensional errors.
Pipe Cutting Machine Technical Specifications
| Specification | Detail |
|---|---|
| Machine Type | NC pipe cutting machine / CNC pipe cutting machine / Automatic cutting line |
| Cutting Method | Rotary blade cutting / Saw blade cutting |
| Tube Diameter Range | Ø16mm — Ø168mm |
| Wall Thickness | Up to 8mm |
| Cutting Length Accuracy | ±0.1mm |
| Material Compatibility | Carbon steel, stainless steel, aluminum, copper, alloy |
| Tube Profile | Round pipe, square tube, rectangular tube |
| Control System | NC / CNC PLC with touchscreen |
| Feed System | Manual / Semi-auto / Fully automatic |
| Cutting Speed | High-speed servo-driven blade system |
| Program Storage | Multiple cutting length programs storable |
| Safety System | Full-guard enclosure, safety interlock |
| Customization | Available on feed length, clamping, automation level |
Highlight Points:
- Servo-driven feed system delivers ±0.1mm length accuracy across full production runs
- Rotary cutting method produces burr-free ends — eliminating secondary deburring
- Quick-change clamping system — switch tube diameters in under 10 minutes
- Automatic material optimization — reduces raw tube waste by up to 15%
- Full safety enclosure with interlock — zero flying chip risk for operators
Performance Characteristics of Pipe Cutting Machines
Why Zhuoran’s Pipe Cutting Machine Outperforms the Competition?
✂️ Burr-Free Cut Every Time
Rotary cutting technology produces clean, smooth tube ends — no secondary deburring, no extra labor, no production delay.
📐 ±0.1mm Length Accuracy
Servo-driven feed control maintains consistent cutting length across thousands of parts — zero accumulation error across full production shifts.
⚡ 10-Minute Diameter Changeover
Quick-release clamping system cuts tube size changeover time to under 10 minutes — keeping your line productive across mixed-diameter orders.
💾 Multi-Program CNC Storage
Store cutting length, quantity, and feed programs for your full product range — instant recall between orders, no reprogramming required.
🛡️ Full Safety Enclosure & Interlock
Enclosed cutting zone with safety interlock system — protects operators from flying chips and blade contact during high-speed cutting cycles.
📦 Intelligent Material Optimization
Automatic remnant length calculation minimizes raw tube waste — reduces material cost by up to 15% on standard production runs.
🔩 Multi-Profile Compatible
Cuts round pipe, square tube, and rectangular tube — one machine handles your full tube profile mix without additional tooling investment.
🌍 Factory-Direct from China
Competitive pipe cutting machine pricing direct from our Zhangjiagang factory — no middlemen, genuine after-sales support included.

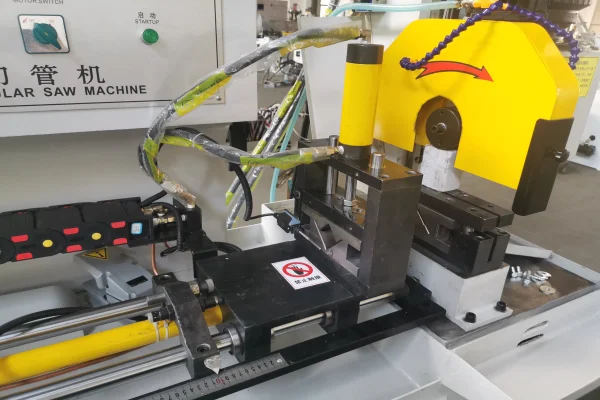

One-Step Cutting
The hidden costs of most pipe cutting operations are not the cutting itself, but the deburring, grinding, and rework required after rough cutting. Burred pipes mean extra labor time, potential surface damage, and delays in subsequent assembly.
Zhuoran’s rotary cutting technology can completely eliminate this problem—achieving smooth, ready-to-assemble pipe ends in a single cut, helping you save significant labor costs and time.

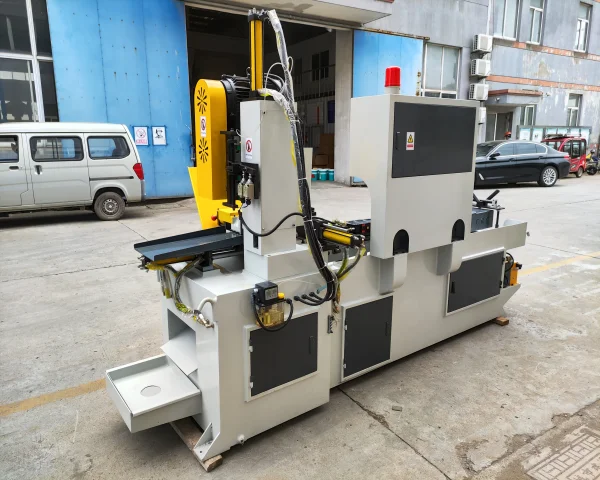

Achieve High-Precision Pipe Cutting
If a single cut has an error of 0.5mm, then after processing 500 pieces in batches, the dimensions will be significantly out of tolerance, leading to assembly failures, rework losses, and customer complaints.
By choosing the Zhuoran CNC pipe cutting machine, with its closed-loop servo feeding control system, you can maintain a cutting accuracy of ±0.1mm throughout the entire process. The pipe lengths are uniformly compliant, and the cut pipes can be directly sent for bending, end forming, or assembly, saving you extra trimming steps.
Common Problems & Solutions of Pipe Cutting
Common Pipe Cutting Problems — Causes & Solutions
| Problem | Root Cause | Solution | How Zhuoran’s Machine Addresses It |
|---|---|---|---|
| Burrs on cut end | Dull blade, wrong speed, incorrect feed rate | Replace blade, adjust feed & speed parameters | Rotary cutting technology produces burr-free ends as standard |
| Length inconsistency | Feed system wear, manual measurement error | Servo feed with encoder feedback | Closed-loop servo maintains ±0.1mm across full run |
| Tube ovaling at cut | Excessive clamping force on thin-wall tube | Adjust clamp pressure to tube wall thickness | Adjustable clamping force setting per tube spec |
| Blade wear too fast | Wrong blade grade for material, over-speed | Match blade specification to tube material | Application-specific blade recommendations provided |
| Cut angle deviation | Blade holder misalignment, frame vibration | Realign blade holder, check frame rigidity | Heavy-duty welded frame eliminates vibration-induced deviation |
| Material waste from remnants | No remnant optimization system | Implement automatic remnant length calculation | Intelligent material optimization reduces waste by up to 15% |
| Slow changeover between diameters | Manual clamp adjustment | Quick-release clamping system | Diameter changeover in under 10 minutes |
Pipe Cutting Machine Operation Guide

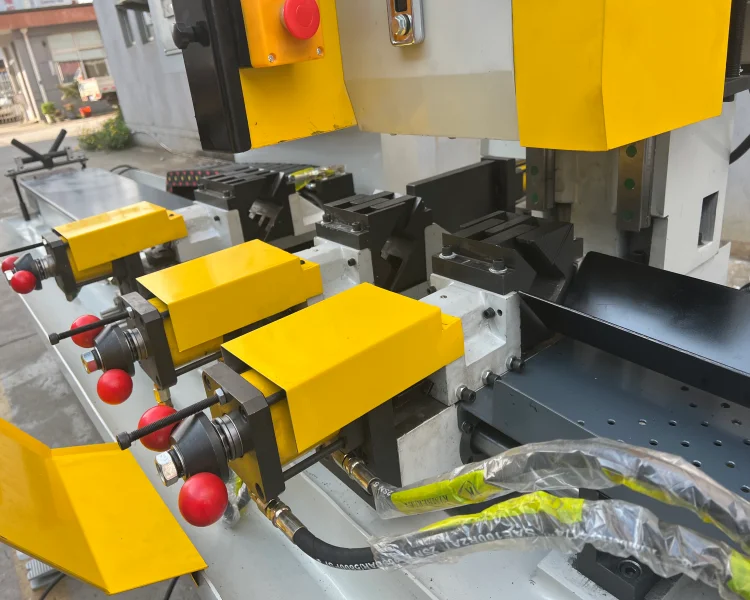

1. Match Dedicated Saw Blades to Improve Cutting Results
When cutting different pipe materials, you must use corresponding dedicated saw blades and cutting speeds. Incompatible saw blades and materials will directly lead to poor cut quality and premature blade wear. Cutting parameters differ for carbon steel, stainless steel, and aluminum. When changing processing materials, strictly follow the recommended saw blade usage plan to ensure stable cutting results.

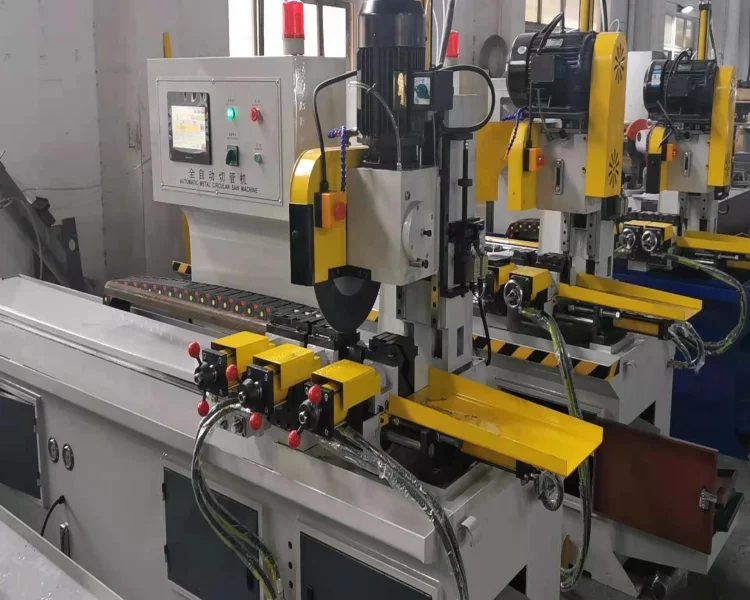

2. Pre-store Complete Set of Processing Parameters for Efficient Changeover
After your CNC pipe cutting machine is debugged, you can pre-enter and save the cutting parameters for all pipe specifications. Relying on manual memory or paper records for manual parameter input is prone to errors and slows down changeover efficiency. Pre-stored, verified programs can help you completely avoid processing errors and significantly improve changeover speed.
3. Correct Length Deviations Promptly to Prevent Batch Scrap
If you find a pipe cutting length deviation of 0.2 mm during production, you need to stop the machine immediately for investigation. Dimensional deviations are mostly caused by servo encoder wear, feed roller slippage, and unstable clamping pressure. Timely inspection and adjustment can effectively prevent the scrapping of entire batches of pipes and reduce production losses.
4. Standardize the sequence of processes on the production line to protect equipment
When a pipe cutter and a threading machine are used in a production line, the process of “cutting the pipe first, then threading” must be followed. A smooth, burr-free standard cut allows you to produce higher precision threads while reducing wear on the threading die; rough, uneven cuts will accelerate die wear and reduce finished product quality.
Get Your Custom Machine Quotation Now
Reliable pipe-bending machine manufacturer supporting full customization. Send us your drawing for a feasible solution and the best price.
Why do the pipes I cut vary in length?
Common causes include unstable feeding positioning, inconsistent clamping force, batch differences in pipe materials, or inconsistent operating procedures. Choosing a suitable CNC/NC control system and a stable clamping structure can significantly improve consistency.
What problems do too many burrs cause?
Burrs increase assembly resistance, scratch seals, affect welding gaps and appearance, and can even cause hand injuries.
How to reduce changeover time for different orders?
It is recommended to address this from three aspects: “rapid length adjustment, fixture adaptation, and process standardization.” For factories with high changeover rates, prioritize the “changeover logic” when selecting a machine, rather than just focusing on maximum cutting capacity.
Can it be integrated into a production line with a pipe bending machine and an end forming machine?
Yes. As a front-end process, pipe cutting is best suited for matching the cycle time with pipe bending, end forming, and chamfering, reducing handling and waiting time, and improving overall line efficiency.
What is the difference between a pipe cutting machine and a threading machine?
Pipe cutters are used to cut pipes to precise lengths; threading machines are used to process threads on the pipe ends for pipe fitting connections.
