Validate Your Pipe BendingProcess Before EquipmentSelection
Please submit detailed information about the tubing, drawings, or representative samples for engineering evaluation. Prior to the start of testing, we will clearly define the scope of testing, schedule, costs, and deliverables for your project.
When to Test
When Should You Request a Pipe Bending Sample Test?
A sample review can help evaluate a proposed bending process using your part requirements before the production equipment and tooling scope is finalized.

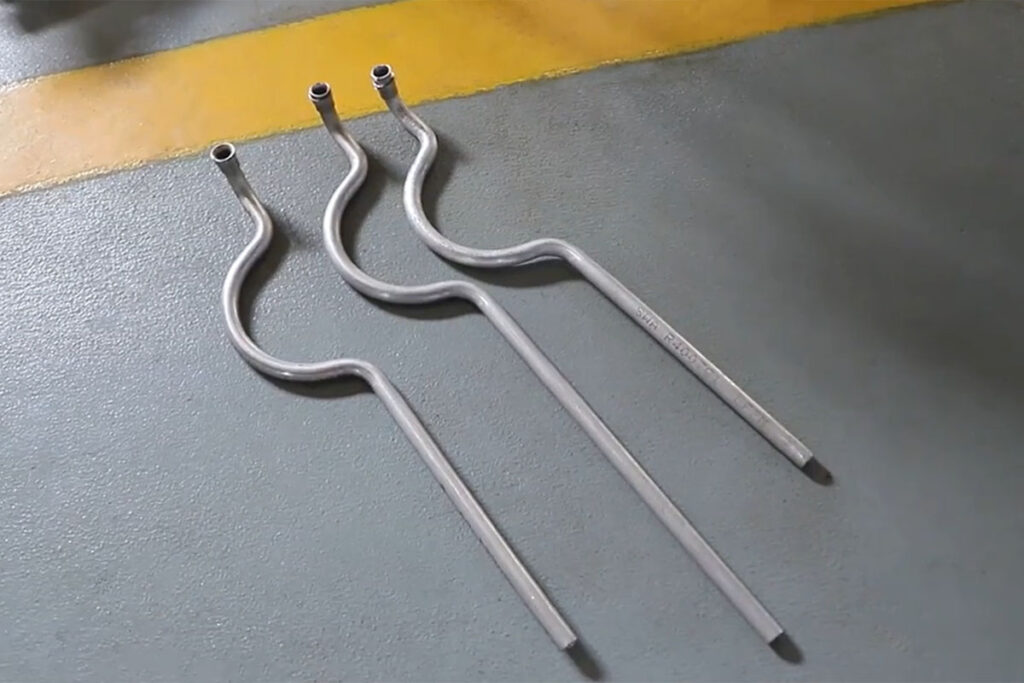

Challenging Geometry
Discuss thin-wall sections, tighter radii, multiple bends, non-round profiles or limited straight lengths.
Quality Requirements
Agree which dimensions, forming conditions and surface requirements should be checked on a representative sample.
Evaluation Scope
What Can a Pipe Bending Sample Test Evaluate?
The inspection plan depends on the part drawing and agreed acceptance criteria. Select the checks that are relevant to the application before the test starts.
Process and Tooling
- Initial bending feasibility for the specified tube
- Tooling arrangement and potential workpiece interference
- Bend sequence, orientation and setup considerations
- Springback observations under the agreed test conditions
Part and Formed Quality
- Bend angle, radius and agreed dimensional points
- Ovality or cross-section change, where specified
- Wall-thickness change, where specified
- Wrinkles, cracks, dents, scratches or other visible conditions
- Repeatability or cycle-time checks, if included in the scope
Measurement equipment, inspection methods and acceptance limits
should be agreed for the project. Specialized or third-party testing
is arranged only when specified in the project scope.

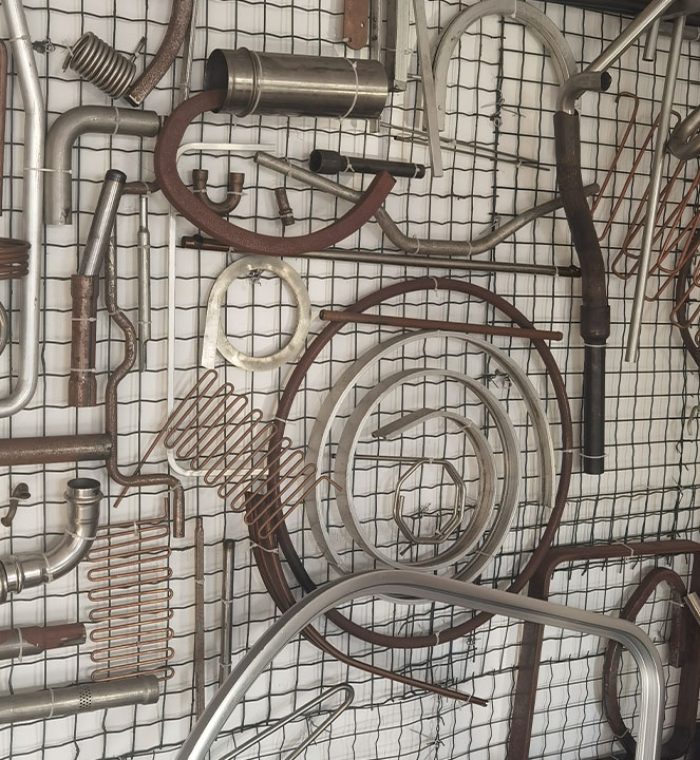

Workpiece Review

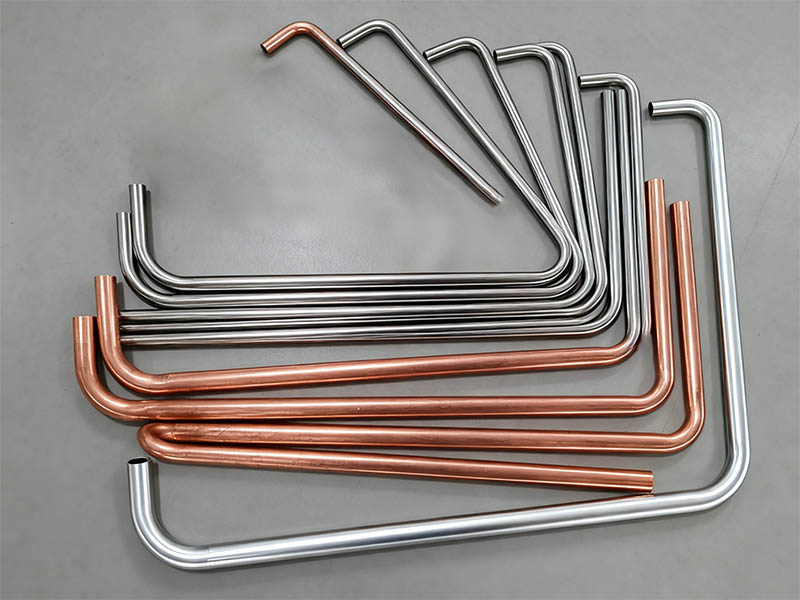

Review Tube Material, Profile and Dimensions
Sample-test suitability depends on the material, cross-section, outside dimensions, wall thickness, bend radius and machine configuration. Share the exact workpiece details so the team can review the proposed test scope.
Round and non-round profiles can be assessed when the required dimensions, orientation and forming details are available. Capability should be confirmed for the specific part rather than assumed from a general size range.
Details to confirm
- Material grade and condition
- Round tube, square tube, rectangular tube or other profile
- Outside dimensions and wall thickness
- Target bend radius, angles and bend sequence
- Workpiece length and straight sections
- Surface, dimensional and assembly requirements
Prepare for Review
Information to Prepare for a Sample Test Review
Complete part information helps the team assess feasibility and define the test plan. If some details are not available yet, identify them as pending in your inquiry.
Part Definition
- 2D drawing or 3D model, including revision
- Material grade and condition
- Tube profile, outside dimensions and wall thickness
- Workpiece length and straight sections
Bending Requirements
- Centerline radius (CLR), bend angles and bend count
- Bend sequence and spatial orientation
- Required tolerances and finished-part criteria
- Welding, assembly or other downstream requirements
Production and Samples
- Expected production volume and changeover pattern
- Sample quantity and material availability
- Whether the customer will supply the test material
- Target schedule and any project-specific requirements
Scope and Commercial Terms
Confirm the Test Scope, Costs and Deliverables Before Testing
Requirements vary by part and project. Zhuoran and the customer should confirm the applicable scope, responsibilities, schedule and deliverables before testing begins.
| Item | What to Confirm |
|---|---|
| Initial drawing review | Define the scope of any preliminary consultation or engineering review. |
| Test schedule | Confirm timing after reviewing material availability, tooling requirements and machine schedule. |
| Sample quantity | Set the quantity according to the project and acceptance objectives. |
| Sample inspection | Specify the measurement items, methods and acceptance criteria. |
| Test records | Confirm whether the deliverable is a brief record or a full inspection report. |
| Testing fees | Confirm before testing whether charges apply and who is responsible for each cost. |
| Custom tooling | Confirm development cost, lead time and tooling ownership separately. Custom-mold costs are the customer's responsibility. |
| FAT | Factory acceptance testing follows the acceptance plan specified in the equipment contract. |
| Results outside criteria | Agree in advance on adjustments, retesting and responsibility for related costs. |

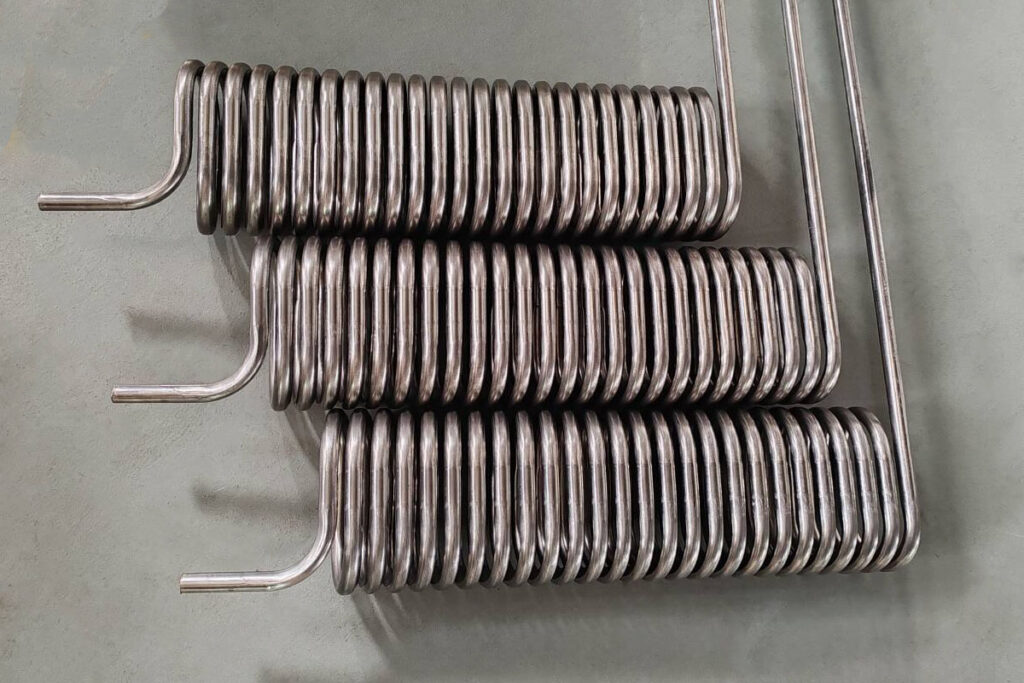

Sample Testing Process
How the Pipe Bending Sample Test Works
Submit Part Information
Send the drawing or representative sample, material details, tube dimensions, bend geometry and quality requirements.
Confirm the Test Plan
Review feasibility, sample quantity, material responsibilities, inspection methods, costs, schedule and expected deliverables.
Carry Out the Agreed Test
Test the workpiece using the confirmed material and tooling arrangement. Any additional process changes should follow the agreed scope.
Review Results and Next Steps
Review the sample and agreed records together. Discuss any adjustments, retesting or machine and tooling recommendations required for the project.
Sample Test and FAT
Sample Testing and FAT Serve Different Project Stages
A sample bending test focuses on the workpiece and the proposed bending process. It can help evaluate the part, tooling and production approach within the scope agreed for that test.
A Factory Acceptance Test (FAT) evaluates the configured machine against the acceptance plan agreed in the equipment contract. Test materials, measurement methods, acceptance criteria, documentation and customer attendance should be confirmed before the FAT.
Confirm FAT requirements in the contract
- Test material and representative workpiece
- Test scope and measurement method
- Acceptance criteria and required records
- Customer attendance or remote participation
- Adjustment and retest arrangements

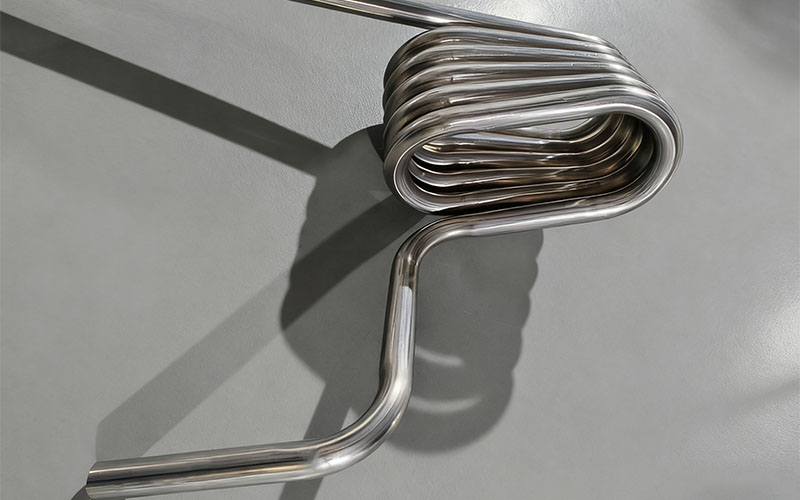

From Sample to Production
Use Test Results to Discuss the Production Configuration
After reviewing the sample and agreed test records, the project team can discuss the machine type, tooling scope and production configuration that may suit the part. Final recommendations depend on the drawing, material, production plan and confirmed technical requirements.
Review the CNC pipe bending machine range or discuss detailed tooling and process requirements through the tube bending engineering design service .
Potential next steps
- Review the tested part against the drawing and criteria
- Identify any tooling or process changes for discussion
- Confirm the machine configuration and project scope
- Define whether a separate FAT is required
FAQ
Frequently Asked Questions About Pipe Bending Sample Tests
Review common questions about test preparation, scope, costs and results. Project details are confirmed before testing begins.
What information should I provide for a sample test review?
Share a part drawing or representative sample, material grade, tube profile, outside dimensions, wall thickness, bend radius, bend angles and required quality criteria. Production volume and downstream assembly requirements are also useful.
Do I need to provide a drawing?
A drawing or 3D model helps the engineering team review the geometry and define the test plan. If you do not have one, provide the available dimensions, material and bending requirements first. Complex parts may require a drawing or additional engineering information before testing can be confirmed.
How many tube samples should I send?
The quantity and length depend on the test objective, bend sequence and agreed inspection scope. As an initial reference, the current page suggests 3–5 straight tube sections of about 300–500 mm each; confirm the required quantity and dimensions with the team before shipping material.
Which materials and tube profiles can be reviewed?
The current service page lists materials such as stainless steel, carbon steel, copper, aluminum and titanium alloy, as well as round and selected non-round profiles. Suitability depends on the specific material, dimensions, bend geometry, tooling and machine configuration, so confirm your workpiece before arranging a test.
What quality items can be checked on a bent sample?
Depending on the agreed scope, checks may include bend angle, radius, selected dimensions, springback, cross-section change, wall-thickness change and visible surface conditions such as wrinkles, dents or scratches. Measurement methods and acceptance criteria should be agreed before testing.
Is sample testing free, and who pays for custom tooling?
Testing fees and cost responsibilities are confirmed for each project before work begins. Custom-mold costs are the customer's responsibility; any other applicable costs should be listed and agreed in advance.
How long does sample testing take?
The schedule depends on material availability, tooling requirements, machine availability and the agreed test scope. The expected timing will be confirmed before testing starts; the page does not promise one fixed turnaround time for every project.
Will I receive a full inspection report?
The deliverables are agreed before testing. Depending on the project, they may include a brief test record or a more detailed inspection report, with photos or other records if specified in the confirmed scope.
Can thin-wall tubes or parts with a tight bend radius be tested?
These applications can be submitted for technical review. Feasibility depends on the material, outside dimensions, wall thickness, bend radius, tooling and required part quality. The test scope should be confirmed after reviewing the workpiece details.
What happens if the sample does not meet the agreed criteria?
The parties should agree in advance how process adjustments, additional tests, retesting and related costs will be handled. The results can then be reviewed against the agreed criteria before deciding on the next step.
Is a sample bending test the same as a Factory Acceptance Test (FAT)?
No. A sample bending test focuses on the workpiece and bending process. A FAT evaluates the configured machine against the acceptance plan in the equipment contract. FAT scope, measurement methods, acceptance criteria and records should be confirmed separately.
Start a Test Review
Discuss Your Tube Bending Sample Test
Send your drawing or sample, material specification, tube dimensions and acceptance requirements. The test scope, schedule, charges and deliverables can be reviewed before the work begins.
