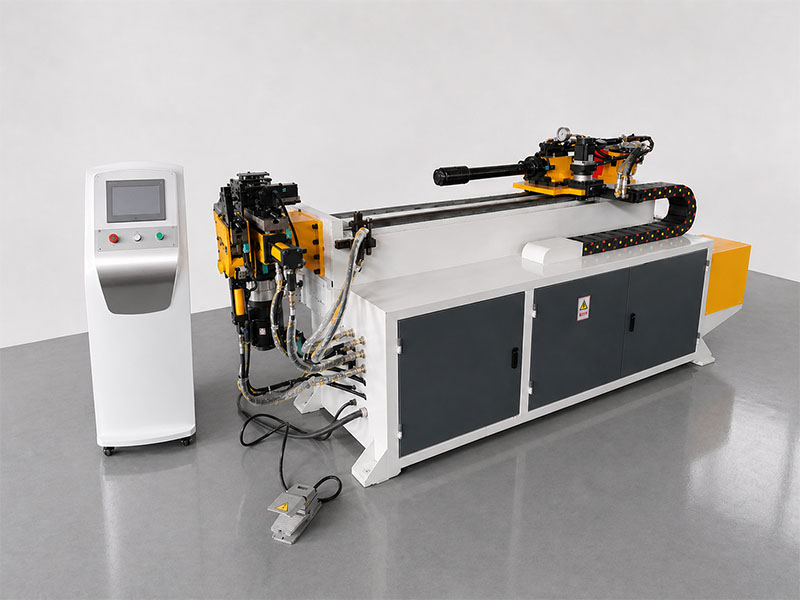

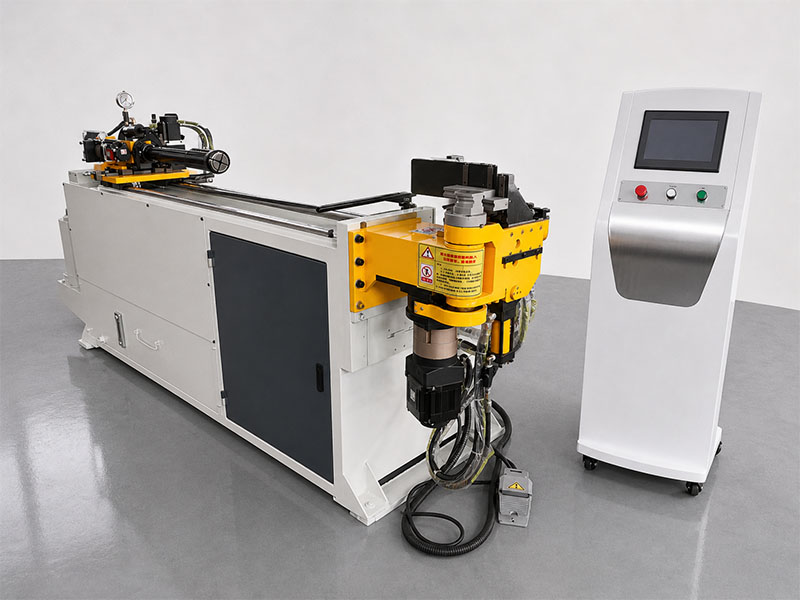

DW18CNC-3A-1S
The CNC automatic pipe bending machine usually uses a PLC system. If necessary, an industrial control system can also be used. It can automatically bend pipes, automatically feed materials, and automatically rotate pipe. The three axes of feeding, rotation and bending are all controlled by servo motors and servo drives. This will make the machine more accurate. If there are requirements for the bending pipe accuracy, you can choose it.
Applicable materials: steel pipes, stainless steel pipes, aluminum pipes, copper pipes, galvanized pipes and other various metal pipes.
It is very suitable for processing pipe parts with numerous spatial angles and high precision requirements. For example: the production of automotive fuel pipes, air conditioning pipes, headrests, motorcycle exhaust pipes and motorcycle handles, etc.
Choose the plan that’s right for you.
Respecting the choices of our customers, we offer assistance to help each customer purchase the machine they desire.
| Specification | Data information |
|---|---|
|
Machine Models |
DW18CNC-3A-1S |
|
Maximum bending diameter |
Φ18×1.6mm |
|
Bending radius. |
20-150mm |
|
Bending Angle. |
0-190° |
|
Longest pipe that can be processed |
1200mm |
|
Bend pipe accuracy |
±0.5° |
|
Bending servo motor power |
1.5KW |
|
Feeding servo motor power |
750W |
|
Rotating servo motor power |
400W |
|
Motor power |
4KW |
|
Cooling system |
Air-cooling system |
|
Machine size |
2500 * 950 * 1300 |
|
Machine weight |
800KG |
- The machine can store 500 different products and can be retrieved and used at any time.
- High-quality bending processing can be carried out using wiper, mandrel and other mold parts.
- The machine has start and emergency stop functions. The mobile foot switch can be used.
- It is equipped with an air-cooling system, which is more convenient than a water-cooling system. It can well control the oil temperature and ensure that the equipment can run stably for a long time in high-temperature environments.
- The body of the machine is made by overall steel plate assembly, and the machine body is sturdy.
- The hydraulic system mainly uses imported brands, and the hydraulic motor can be selected and replaced. The hydraulic circuit is equipped with cooling and speed regulation devices, which is stable and durable.
- The pipe bending arm uses grinding gear transmission to ensure the machine's accuracy and stability, and is controlled by the bending pipe servo, which ensures the accuracy of the bent pipe.
- The linear transmission part of the feeding and feeding-in part is composed of gear rack transmission and high-strength linear guides, allowing the machine to maintain stability during high-intensity use and increasing the machine's service life.
- It has the function of automatically detecting errors and faults. Once any abnormal operation or other abnormalities occur, the machine will immediately stop running and display the fault location on the operation interface to help the operator eliminate the faults.
- The PLC touch screen, with a graphic and text interactive operation screen, is easy to understand. This touch screen can switch between Chinese and English displays. It can also be customized with other language versions.
- The PLC system can display the coordinates of the X, Y, and Z axes. It has the functions of detecting the status of the servo and giving alarms. It also has the functions of product quantity statistics and working time statistics, which can better assist you in completing batch orders.
- The feeding/rotation/bending is controlled by three servo motors, with an accuracy of ±0.5-0.1 millimeters, ensuring excellent consistency in product bending.
- The sensors of the machine are properly installed at the correct positions and are highly sensitive, ensuring that every movement of the machine runs smoothly.

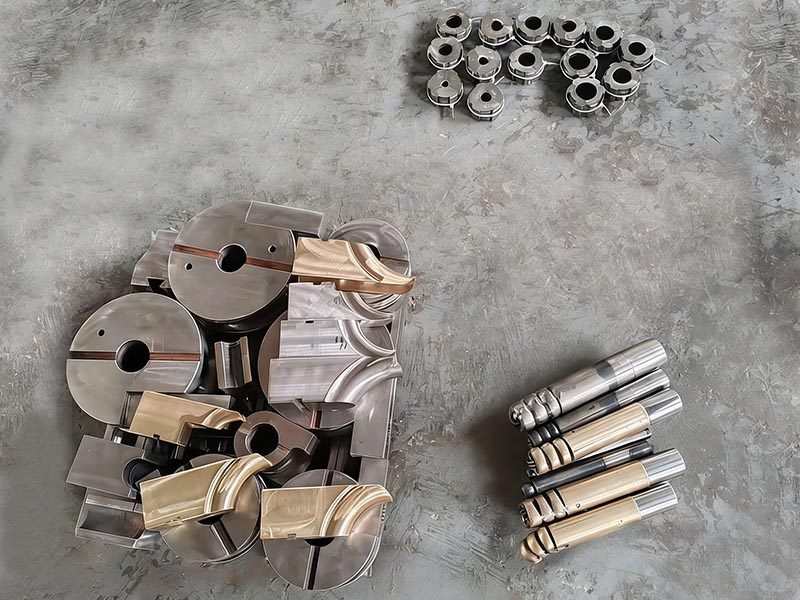

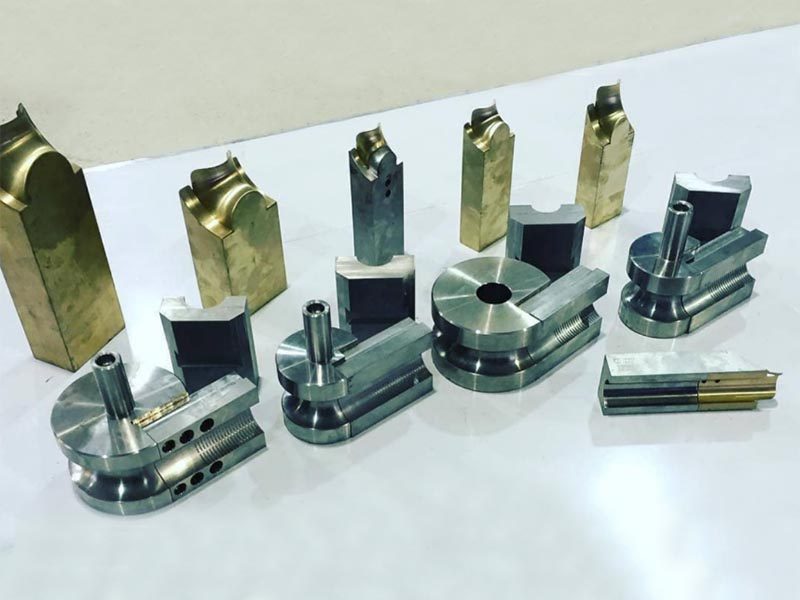

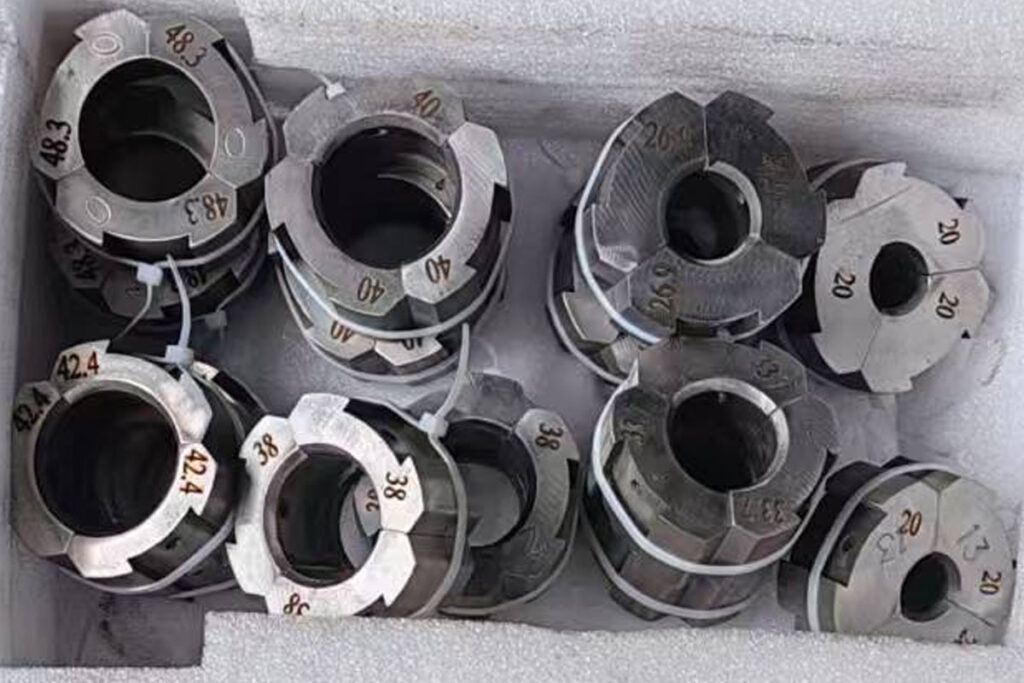

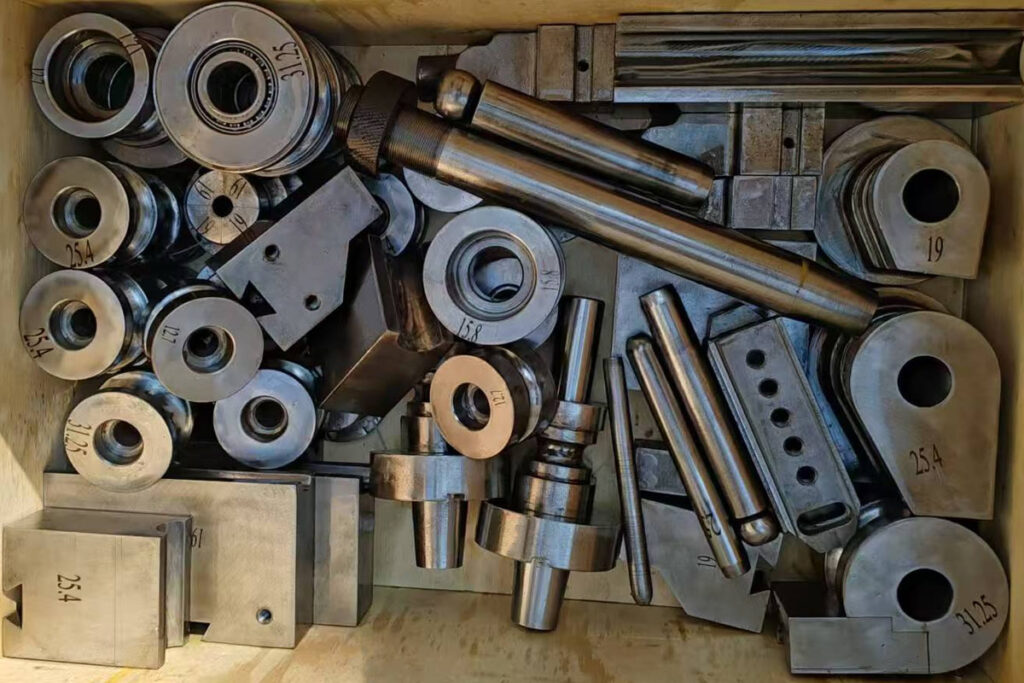

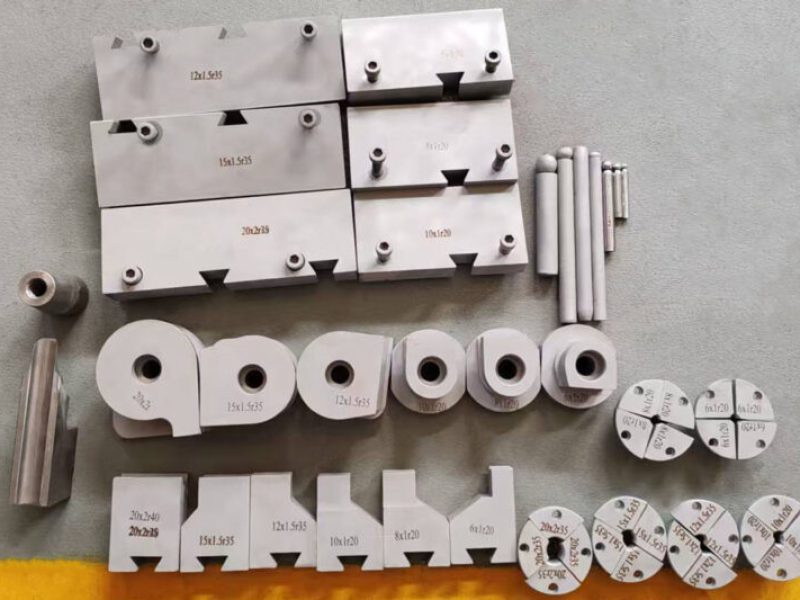

Use of machine molds
-Semi-automatic pipe bending machine molds

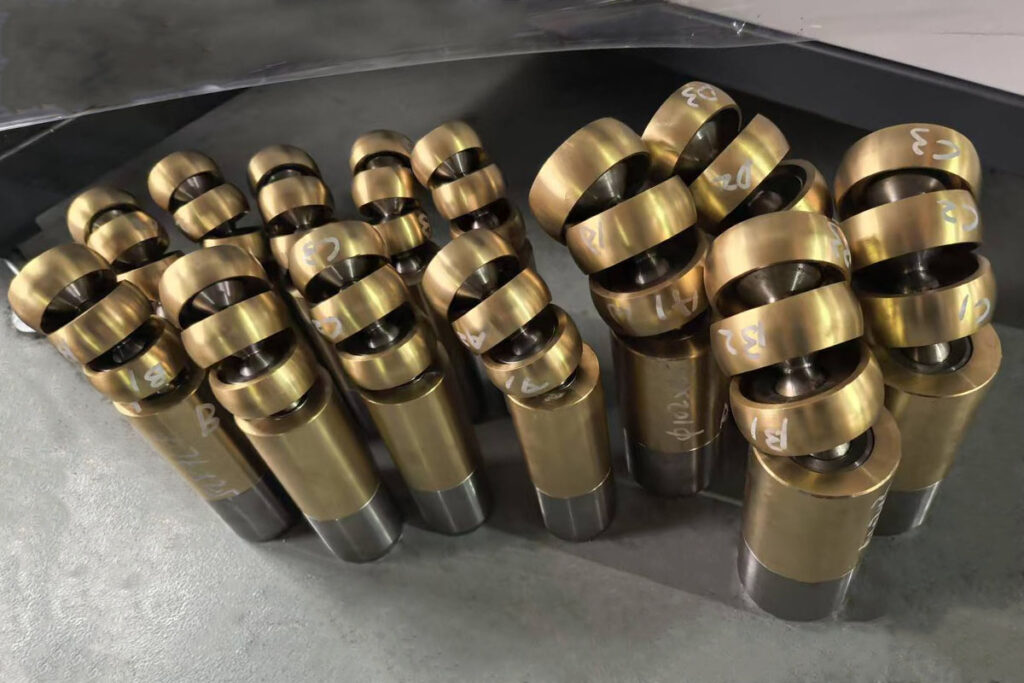

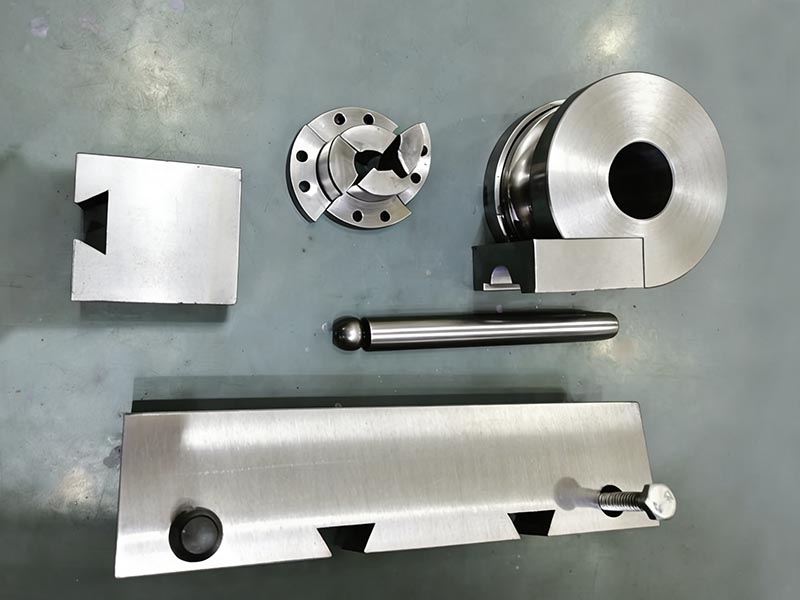

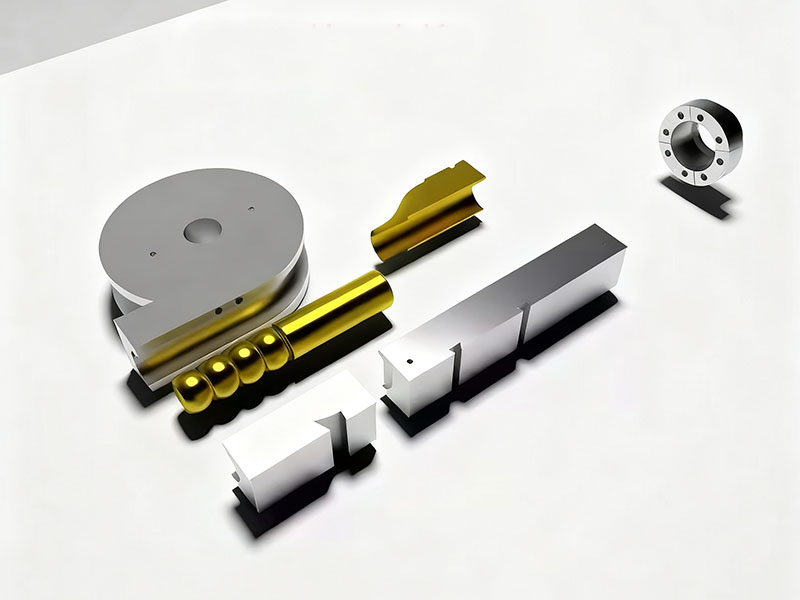

The molds of semi-automatic pipe bending machine usually consist of six parts. Among them, the wiper and mandrel need to be used under specific circumstances.
Such as when the pipe diameter is small, the pipe wall thickness is thick, or when bending a solid rod. In these cases, these two parts can be omitted and the bending can still be completed. Because these two parts are used to prevent the bending position of the pipe from breaking, wrinkling, or becoming oval during the bending process, they are auxiliary parts for bending.
These molds can be made of different materials, such as 45#, 42CrMo, Cr12, hard nylon, etc. They are suitable for use in different situations.
45# is the most common material. Ordinary carbon steel pipes or aluminum pipes can be made of this material. It is cheap and easy to use.
42CrMo and Cr12 are usually used when the pipe material is hard, such as stainless steel or alloy materials. They have good wear resistance and corrosion resistance, and have a longer service life.
Hard nylon is usually used for pipes made of softer materials, such as aluminum, to avoid scratches on the pipe during bending.
Samples of pipes
What are the benefits of choosing our machines?
–Achieve better machine performance at a relatively low cost
This is a semi-automatic pipe bending machine with good performance and relatively fast processing capabilities. It is suitable for customers who want to purchase a machine within a limited budget but still require a considerable production volume.
— Be able to bend pipes of various materials and shapes
Pipes made of materials such as carbon steel, stainless steel, aluminum, copper, etc. can all be bent. Angle steel, profile steel, round pipes, square pipes, special-shaped pipes – as long as custom production molds are made according to the pipes, they can all be completed.
— Bending of the machine
We have extensive experience in machine bending. Our technicians have over a decade of rich experience and are capable of adjusting the molds according to the material and shape of the pipes, thus achieving perfect bending with no wrinkles or fractures in the pipes.
— Color of the machine
We have this specialized machine painting workshop where we can customize the color of the machines. Usually, our machines come in white and yellow. If the customer wants blue, gray or any other color, just let us know the color you need and we can customize it for you.
